Omron E5 K Series User Manual

E5AK/E5CK/E5EK
E5AK/E5CK/E5EK
123

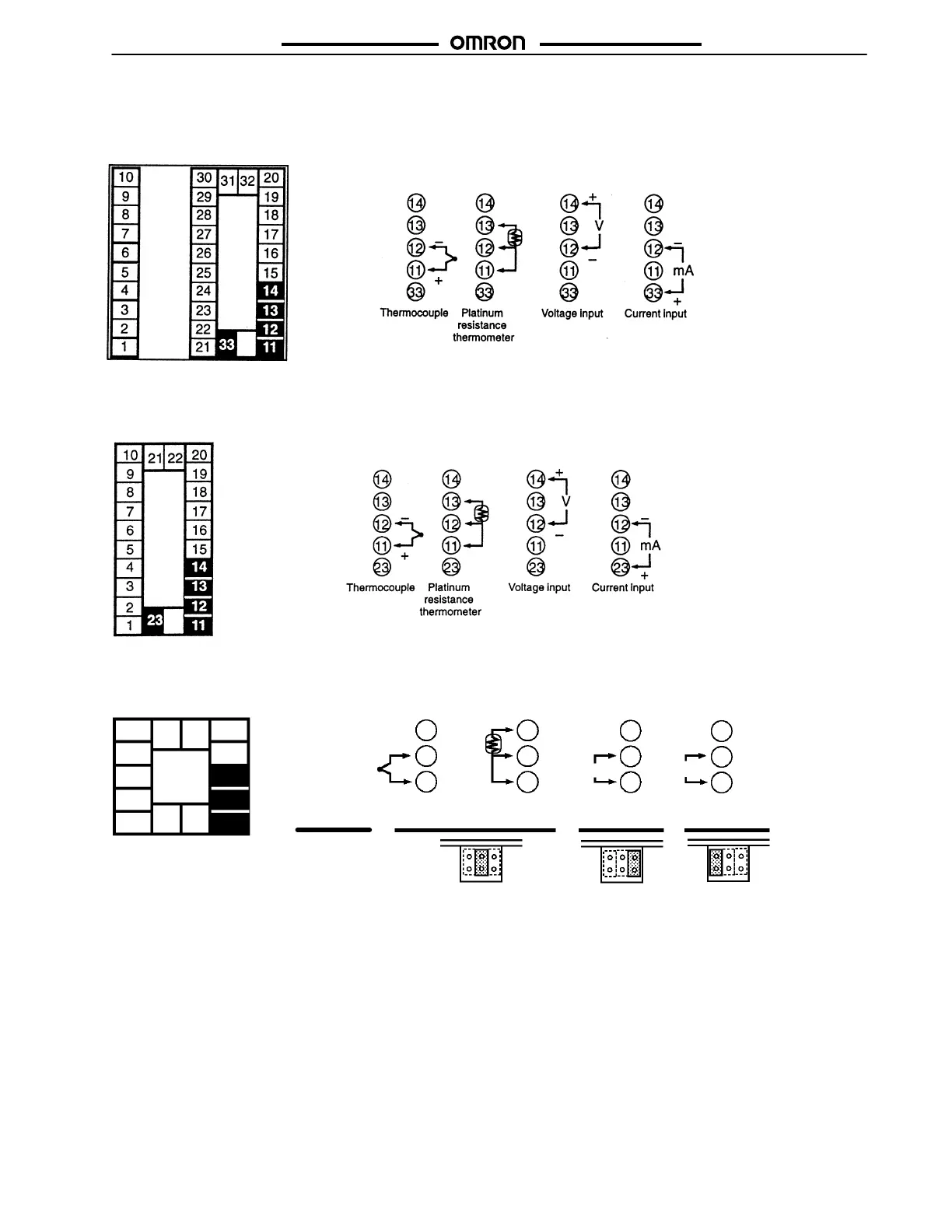

 SENSOR INPUT WIRING
E5AK
Connect the sensor input to terminal numbers 11 to 14 and 33 as follows according to the input type.
E5EK
Connect the sensor input to terminal numbers 11 to 14 and 23 as follows according to the input type.
E5CK
Connect the sensor input to terminal numbers 6 to 8 as indicated here, according to the input type.
8
7
6
8
7
6
8
7
6
8
7
6
-
+
-
+
-
+
VmA
TC ⋅ PT V I
Thermocouple Platinum resistance
thermometer (RTD)
Voltage input Current input
Input type
Internal jumper
setting
5
4
3
2
1
10
9
13 14
11 12
8
7
6
Match the inputs with the internal jumper settings for each input type. For thermocouple or platinum resistance thermometer inputs, set
the internal jumper to a common position (TC/PT) as the temperature input.
