E5AK/E5CK/E5EK
E5AK/E5CK/E5EK
122

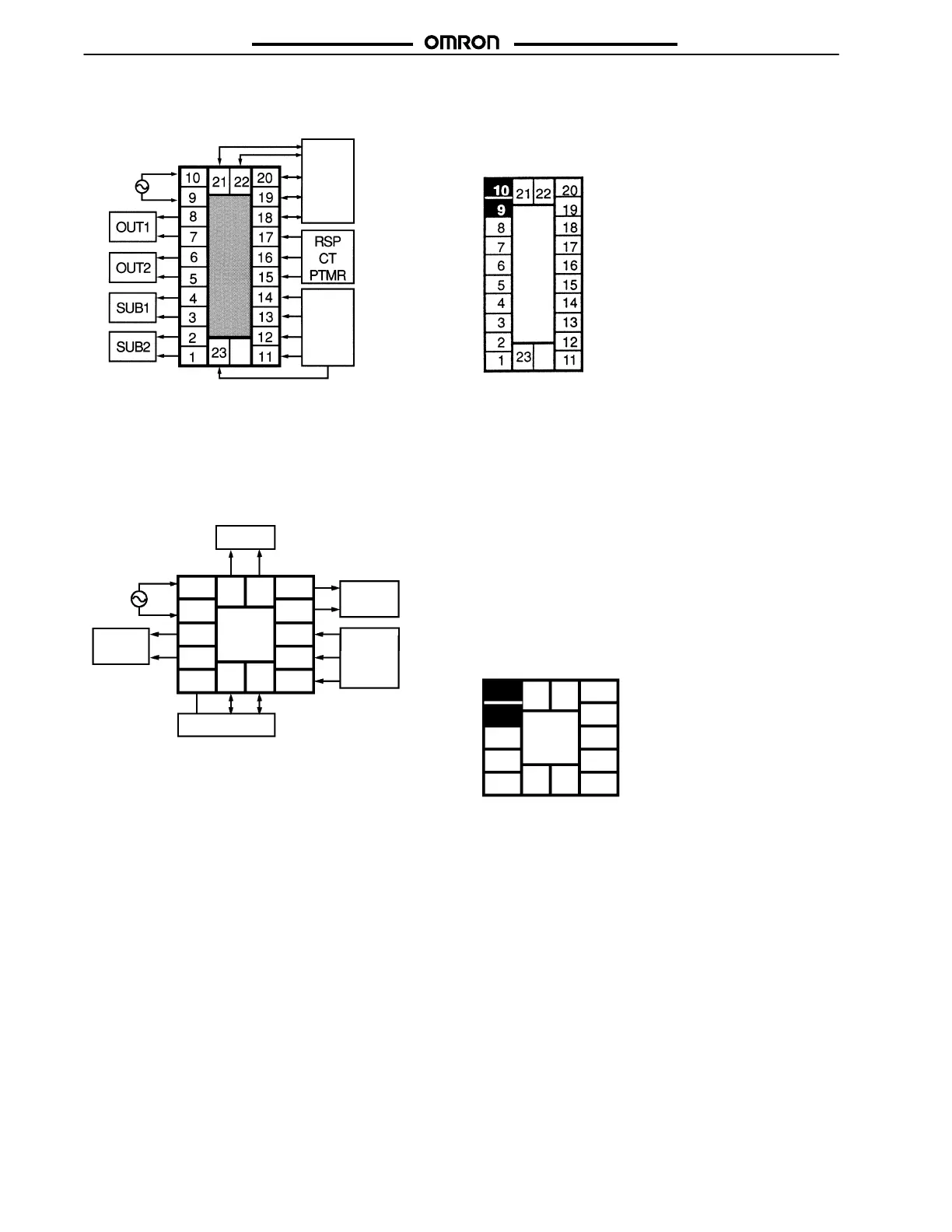

WIRING TERMINALS FOR E5EK
E5EK Terminal Arrangement
TRSF: Transfer output
EV1/2: Event input
PTMR: Potentiometer
RSP: Remote SP input
AC100–240V~
50/60 Hz
OPTION
1
SENSOR
INPUT
Power supply
Input power to terminal numbers 9 and 10. Power specifications
are as follows: 100 to 240 VAC, 50/60 Hz, approx. 15 VA
WIRING TERMINALS FOR E5CK
E5CK Terminal Arrangement
5
4
3
2
1
10
9
8
7
6
13 14
11 12
OUT1
OUT2
SUB1
OPTION
INPUT
100–240VAC
Wiring Precautions
• To protect the Controller and its lines from external noise,
use the wire ducts to separate input leads and power lines.
• Use solderless terminals when wiring the Controller.
• Tighten the terminal screws using a torque no greater than
0.78 N m, or 8 kgf cm max. DO NOT tighten the terminal
screws too tightly.
Power Supply
Input 100 to 240 VAC to terminal numbers 4 and 5.
3
2
1
10
9
8
7
6
13 14
11 12
5
4
