25

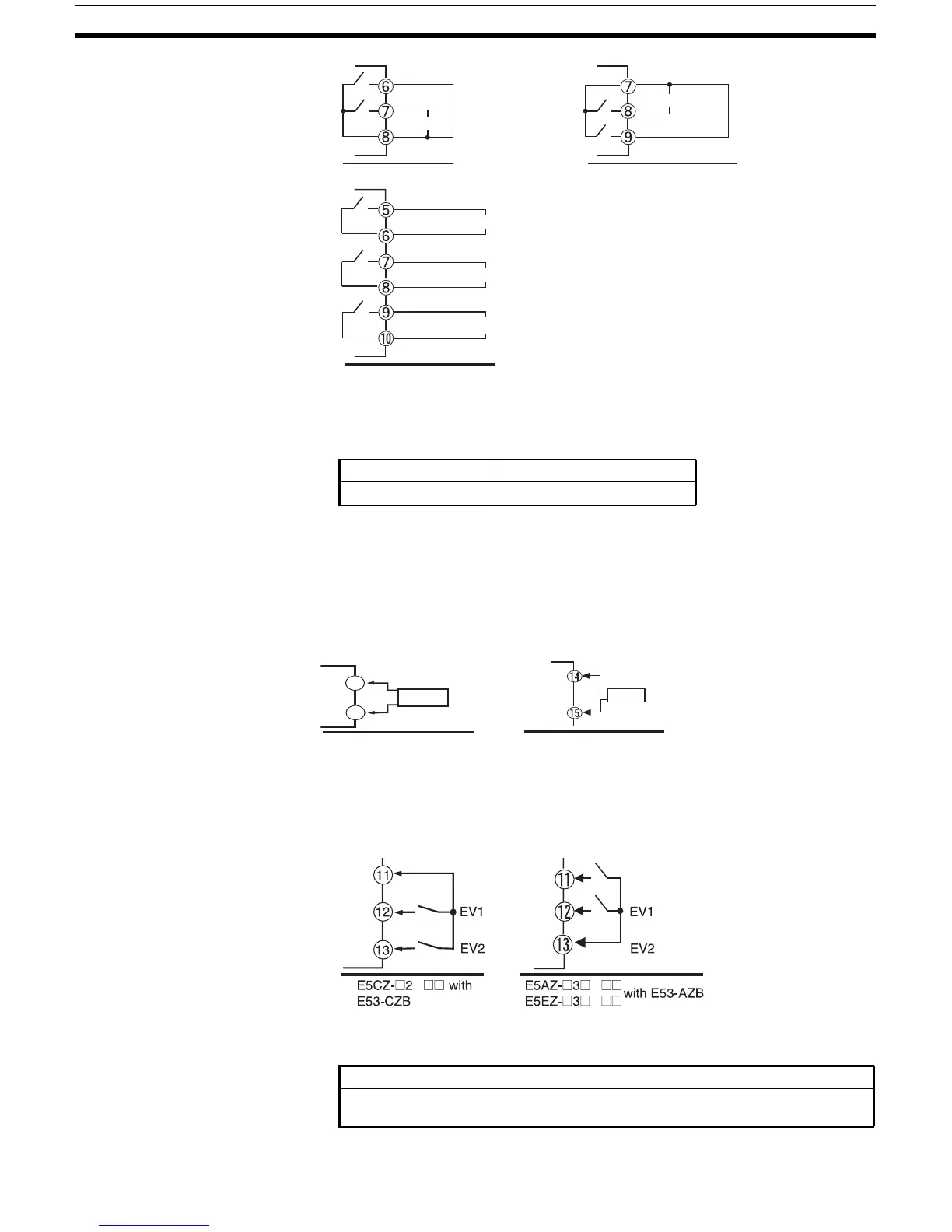

Wiring Terminals Section 2-2
ALM 1, 2, 3 can be output to alarm output 1, 2, 3, or changed with the ad-
vanced function setting level.
• The relay specifications are as follows:
CT Inputs • When the HB alarm or the HS alarm is to be used with the E5CZ-@2M@@
with E53-CZH03 or E53-CZHB, connect a current transformer (CT1)
across terminals 14 and 15 (no polarity).
• When the HB alarm or the HS alarm is to be used with the E5AZ/EZ-
@3H@@@, connect a current transformer (CT1) across terminals 14 and
15 (no polarity).
Event Inputs • When event inputs are to be used with the following models, connect to
terminals 11 to 13. Option unit with two event inputs is required to be
mounted.
• Use event inputs under the following conditions:
• The outflow current is approximately 7 mA.
Polarities during no-contact input are as follows:
E5CZ/CZ-U SPST-NO 250 VAC 1 A
E5AZ/EZ
SPST-NO 250 VAC
2 A
E5CZ E5CZ-U
ALM2
ALM1, HB alarm/HS
alarm, input error
ALM1, input error
ALM2
ALM3
ALM2
ALM1, HB alarm/HS alarm,
input error
E5AZ/EZ
E5CZ-@2M@@ with
E53-CZH03
15
14
CT1
CT1
E5AZ/EZ-@3H@@@
or E53-CZHB
Contact input ON: 1 kΩ max., OFF: 100 kΩ min.
No-contact input ON: Residual voltage 1.5 V max.; OFF: Leakage current
0.1 mA max.
orE53-CZHB
M
M
M
