Omron H3BA User Manual

H3CA
H3CA
114

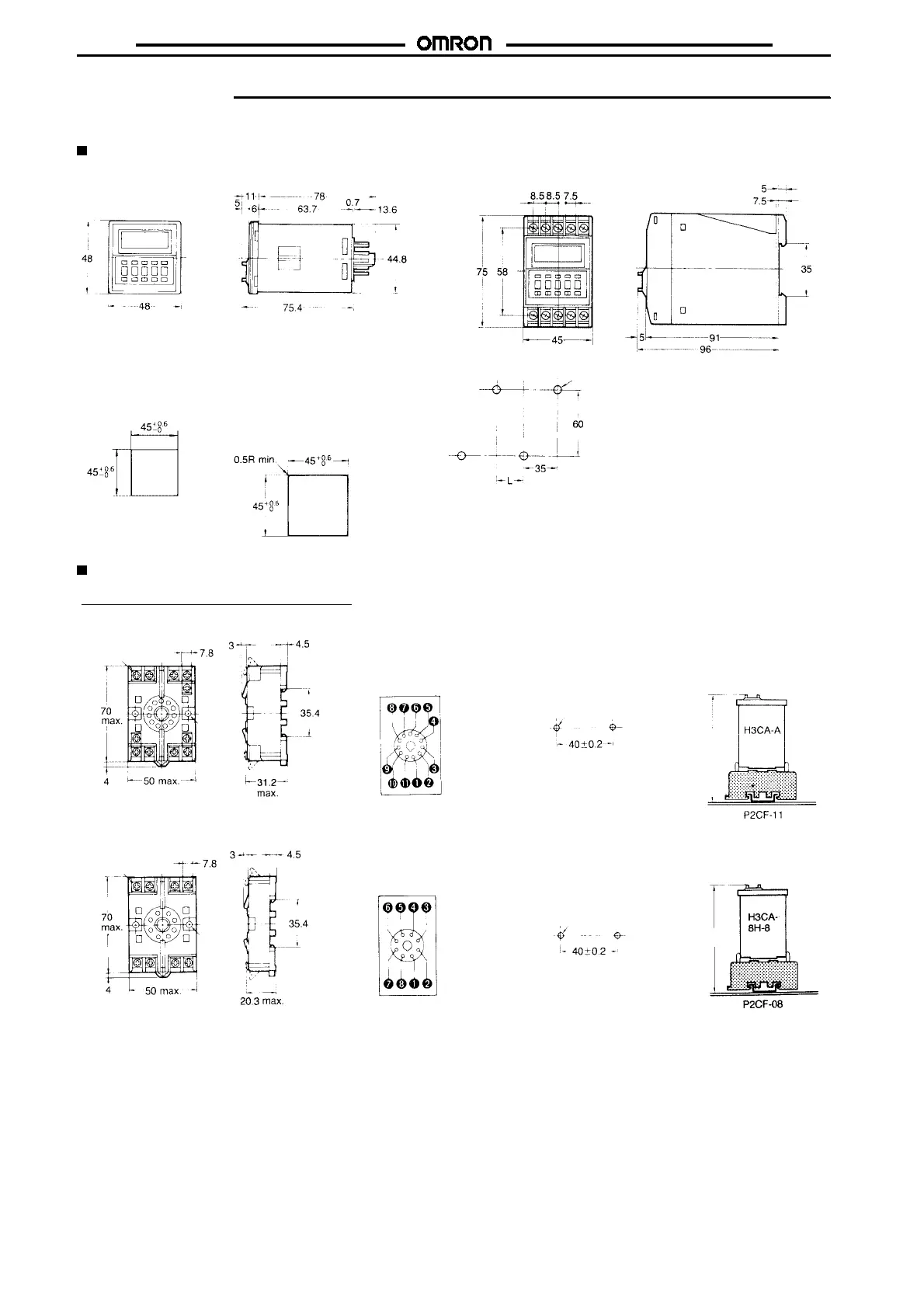

Dimensions
Note: All units are in millimeters unless otherwise indicated.
Timers
Panel Cutouts
When mounting a
single unit
t=1to3.2mm
H3CA-A/-8H H3CA-FA
Horizontally connecting n units
No front cover:
N = (48n -- 2.5)
+1
/
-- 0
With front cover:
N = {48n -- 2.5 + (n -- 1) x 3}
+1
/
-- 0
Mounting Holes
Two,M4 or 4.5 dia. holes
Note: When mounting two or
more timers in line, di-
mension L between two
adjacent timers shouldbe
10 mm min.
(N)
Accessories (Order Separately)
Mounting Holes
Note: P2CF-11can beused
as a front connecting
socket.
Track Mounted Front Connecting Socket
P2CF-11
Terminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
Two, 4.5 dia.
mounting holes
Two,
4.5 dia.
holes
Eleven, M3.5 x 7.5
sems
P2CF-08
Two,
4.5 dia.
holes
Two, 4.5 dia. or
Two, M4
Eight, M3.5 x 7.5
sem
Mounting HolesTerminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
Note: P2CF-08 can be
used as a front con-
necting socket.
108.1
97.2

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
