H3M
H3M
135
P2B

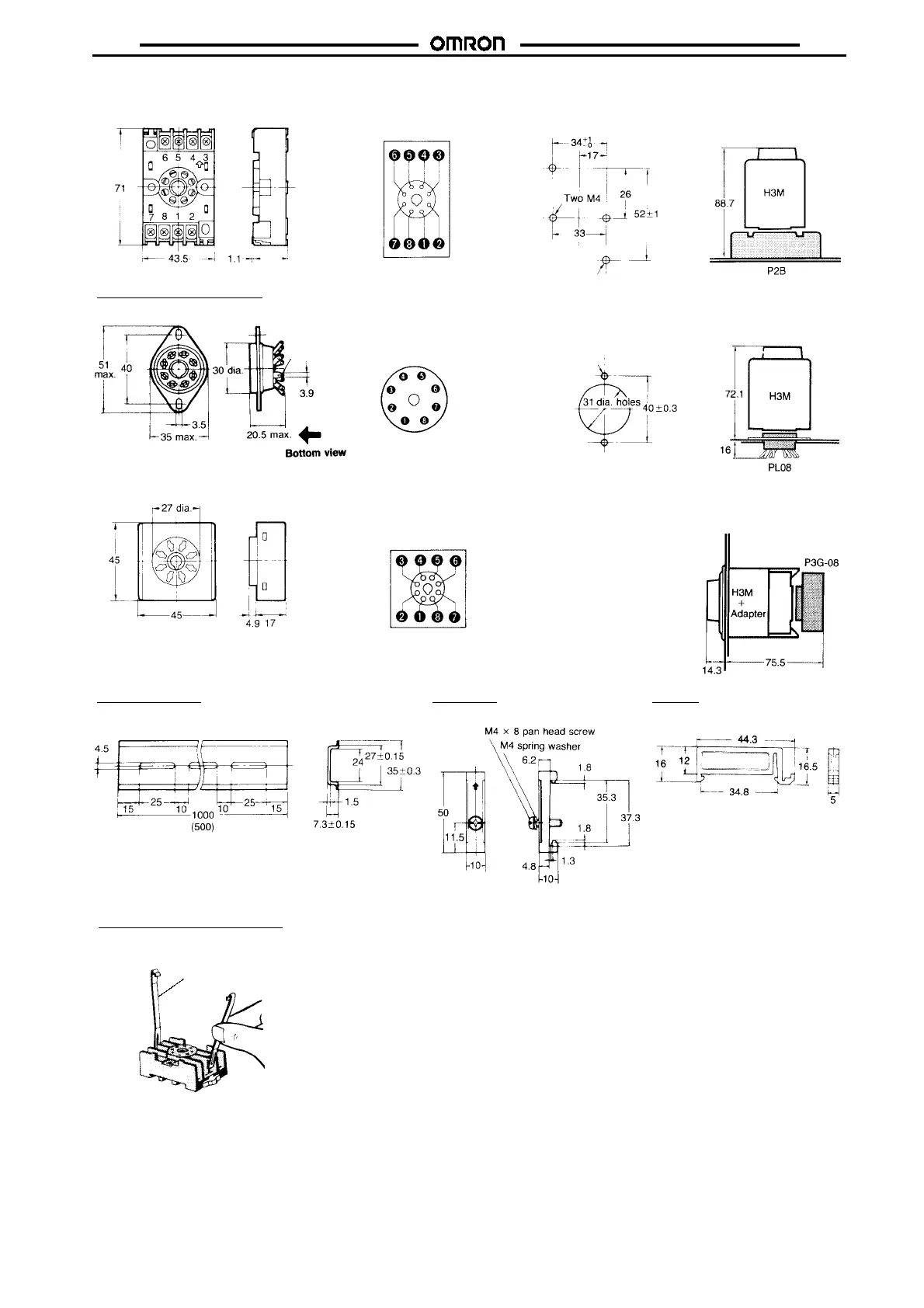

Terminal Arrangement
(Top View)
Mounting Holes Mounting Height of
Timer with Socket
Two, M4
P3G-08
Terminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
Two, 3.5 dia. or M3
socket mounting
holes
Two, 2 dia.
holes
Terminal Arrangement
(Bottom View)
Mounting Holes Mounting Height of
Timer with Socket
Back Connecting Socket
PL08
Mounting T
rack
PFP-100N/PFP-50N
End Plate
PFP-M
Note: This dimension applies to PFP-50N.
Spacer
PFP-S
(See note)
Hold-down Clips (Attached)
PHC-1 For PF085A
F-fook
