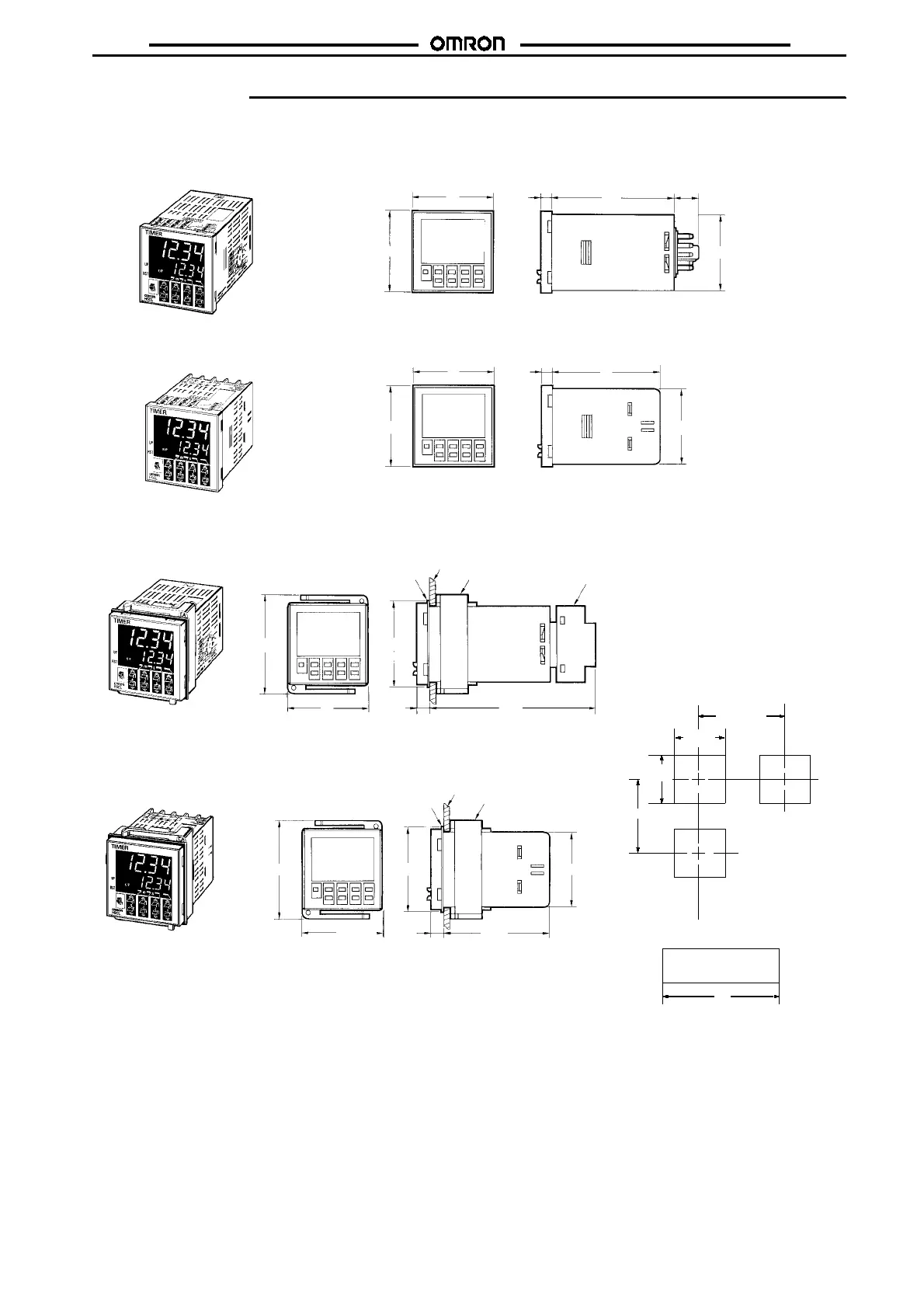

Dimensions
Note: All units are in millimeters unless otherwise indicated.
H5CL-A
j
DIN Track/Surface/Flush Mounting
H5CL-AD
j
Flush Mounting
48
48
48
48
64
72.5
14.26
6
44.7 x 44.7
44.7 x 44.7
H5CL-A
j
With Flush Mounting Adaptor
H5CL-AD
j
With Flush Mounting Adaptor
Panel Cutouts
Panel cutouts are as shown below.
(according to DIN43700).
+1
-- 0
A = (48n-2.5)
Note: 1. The mounting panel thickness should be 1 to 4 mm.
2. Itis possibletomounttimerssidebyside,butonlyinonedirection.
3. When theTimers aremounted closely sideby side, the Timerswill
not be water-resistive.
44.7 x 44.7
58
51
48
99.2
7.5
(51)
48
58
7.5
Y92S-29 rubber packing
(provided)
Panel
Y92F-30 flush mounting
adaptor (provided)
P3GA-11 back connecting
socket (sold separately)
Y92S-29 rubber packing
(provided)
Panel Y92F-30 flush mounting
adaptor (provided)
62.5
60 min.
60 min.
A
n side by side mounting
45
+0.6
-- 0
45
+0.6
-- 0

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
