Omron H3BA User Manual

H5CR
H5CR
183

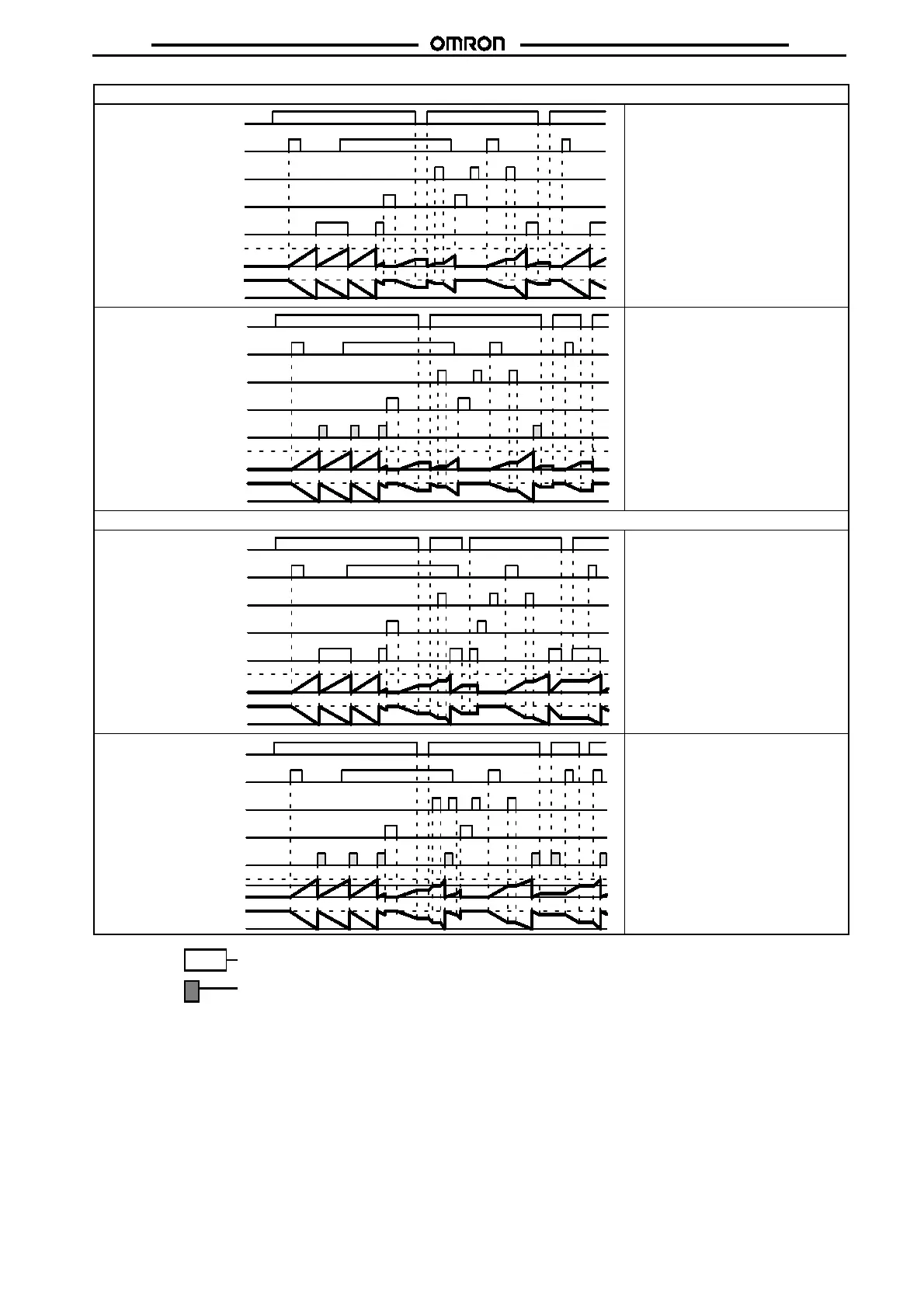

Output mode b: Repeat cycle 1 (Timer resets when power comes on.)
Power
Start signal
Gate
Reset
Control output
Set value
Timing
diagram
UP
DOWN
0
0
Set value
The OFF/ON cycle is initiated at the
leading edge of the start signal. The
output relay will be OFF for the preset
time, then ON for the preset time. The
cycle will be repeated until a reset
input is applied or power is
interrupted.
tt
Power
Start signal
Gate
Reset
Control output
Set value
Timing
diagram
UP
DOWN
0
0
Set value
The OFF/ON cycle is initiated at the
leading edge of the start signal. The
control output will be OFF for the first
cycle. In subsequent cycles the output
will be ON for the programmable
one-shot time period, then OFF for the
remained of the preset time. The cycle
will be repeated until a reset input is
applied or power is interrupted.
Output mode b-1: Repeat cycle 2 (Timer does not reset when power comes on.)
Power
Start signal
Gate
Reset
Control output
Set value
Timing
diagram
UP
DOWN
0
0
Set value
The OFF/ON cycle is initiated at the
leading edge of the start signal. The
output relay will be OFF for the preset
time, then ON for the preset time. The
cycle will be repeated until a reset
input is applied or power is
interrupted.
tt t tt-aa
Power
Start signal
Gate
Reset
Control output
Set value
Timing
diagram
UP
DOWN
0
0
Set value
The OFF/ON cycle is initiated at the
leading edge of the start signal. The
control output will be OFF for the first
cycle. In subsequent cycles the output
will be ON for the programmable
one-shot time period, then OFF for the
remained of the preset time. The cycle
will be repeated until a reset input is
applied or power is interrupted.
One-shot
Sustained output
One-shot outputs can be set to 0.1 s, 0.5 s, 1 s, 5 s, 10 s, 15 s or 20 s.

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
