Programming of Specifications
The built-in specifications selector switches are used for program-
ming UP or DOWN display, rated time, operation mode, and output
level of the solid-state output when the set time has elapsed, etc.
Set these switches for programming the desired functional specifi-
cations by referring to
“Positions and Functions of Specification Se-
lector Switches”.

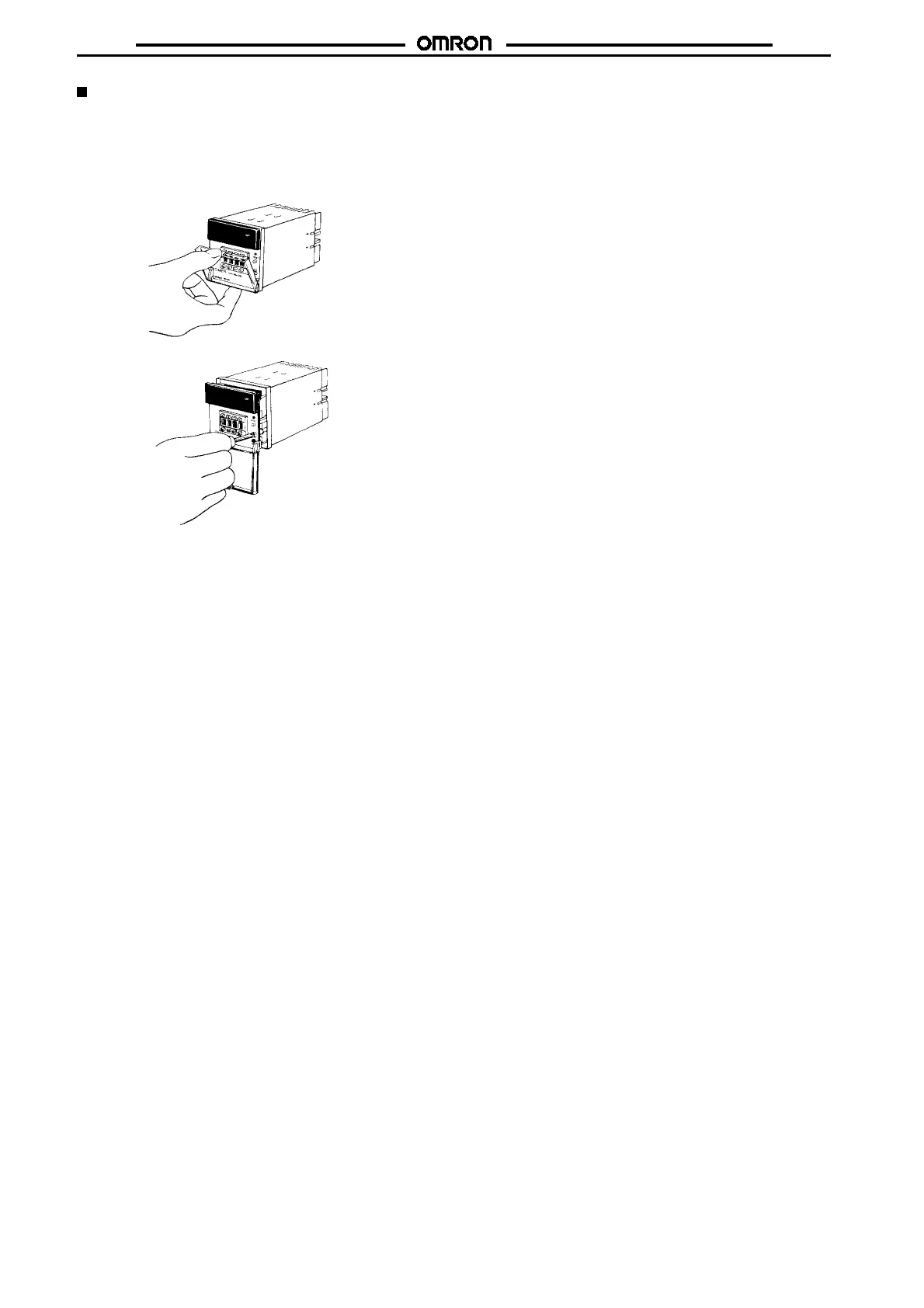

Open the front cover.
The internal unit comes out by loosening
the internal unit fixing screw.

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
