Omron H3BA User Manual

H5CN
H5CN
204

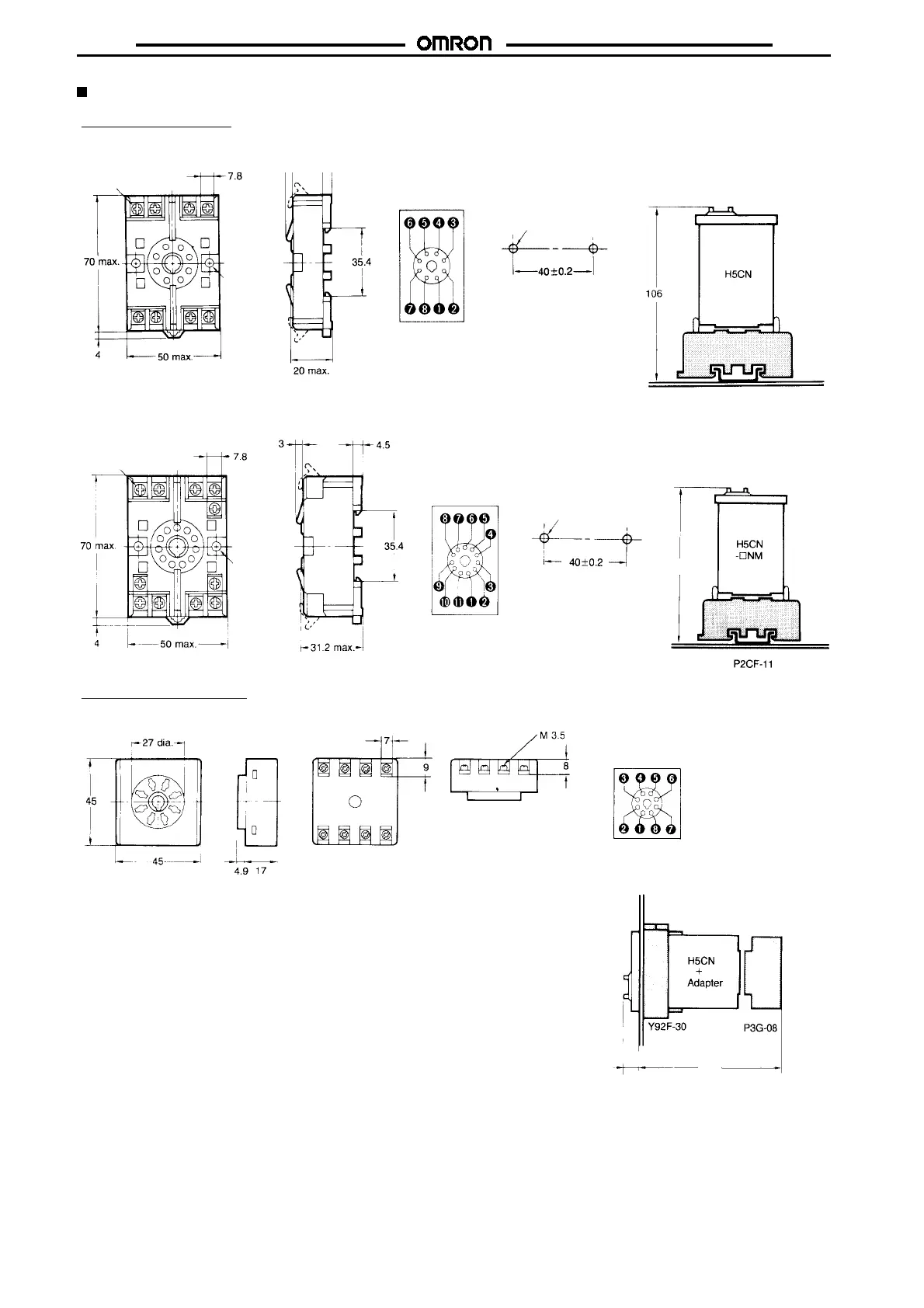

Accessories (Order Separately)
Track Mounted Socket
P2CF-08
Two, 4.5 dia.
holes
Two, 4.5 dia. holes or M4
Eight, M3.5 x 7.5
Terminal
Arrangement
(Top View)
Mounting Holes Mounting Height of
Timer with Socket
P2CF-08
P2CF-11
Terminal
Arrangement
(Top View)
Mounting Holes Mounting Height of
Timer with Socket
Two, 4.5 dia.
holes
Two, 4.5 dia. holes or M4
Eight, M3.5 x 7.5
sems screw
Note: Track mounting is
also possible.
Back Connecting Socket
P3G-08
Terminal Arrangement
(Bottom View)
Mounting Depth of
Timer with Socket
116.9
95.110.9

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
