Omron H3BA User Manual

H5CN
H5CN
209
Note

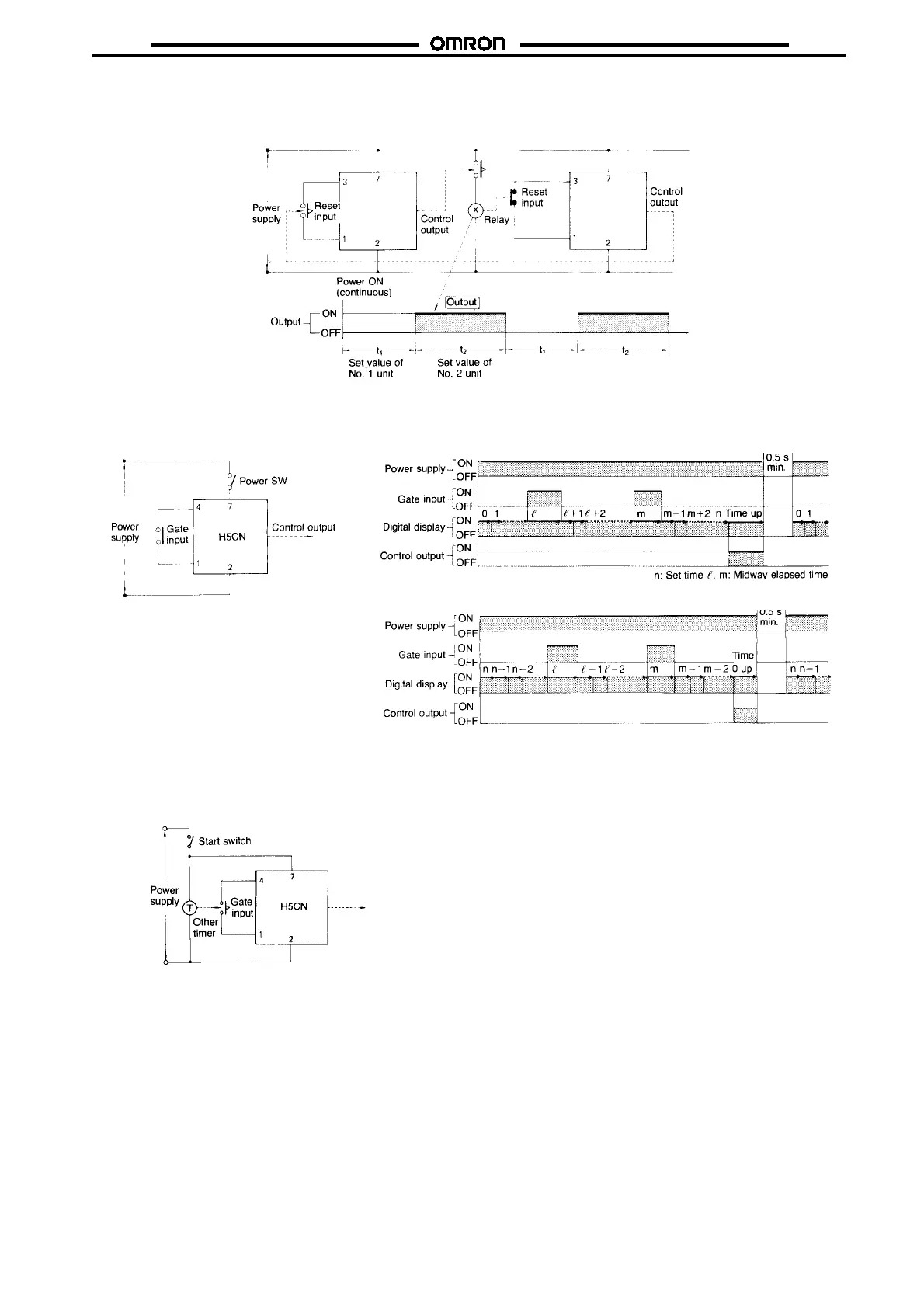

: 1. High-speed Repeat Operation Circuit
When resetting the timer using the reset input terminal, high-speed resetting is possible at a speed of 0.02 s. Accordingly, by using
two H5CN Timers, a high-speed repeat operation circuit can be created.
H5CN
No. 1
H5CN
No. 2
2. Integrating Operation
Use of the gate input terminal permits the timer to sum up timers T
1
,T
2
, and T
3
(i.e., integrating operation) as shown below.
UP Display Timer
DOWN Display Timer
Operating Time Measurement
The UP display timers with digital display can be used to measure
the operating time of other timers or equipment. (For this measure-
ment, set the set time to the maximum.)
Note: The digital display of H5CN stops incrementing
whenthepredeterminedoperating time of timer
“T” has elapsed.

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
