Omron H3BA User Manual

H2C
H2C
216

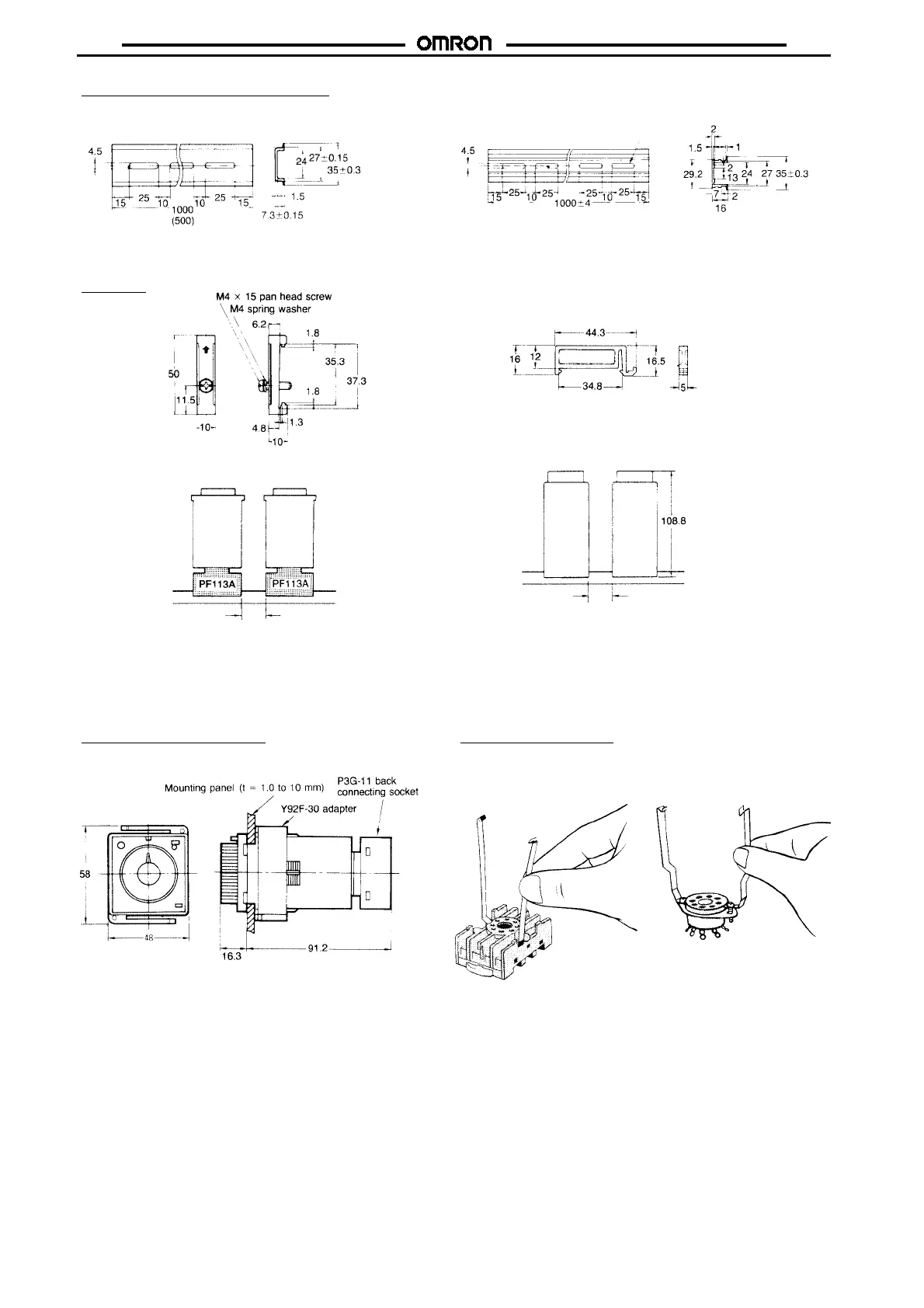

Mounting Track (Meets DIN EN50022)
PFP-100N/PFP-50N
PFP-100N2
Twelve, 25
'
4.5 elliptic holes (see note)
(see note)
Note: This dimension applied to PFP-50N. Note: A total of twelve, 25 x 4.5 elliptic holes are provided with 6
holes cut from each rail end at a pitch of 10 mm between
holes.
End Plate
PFP-M
PFP-S
Adapter for Flush Mounting
Y92F-30
Note: The adapter can be mounted to the timer form any side of
the timer housing since the adapter security notches are
provided on all four sides of the housing.
H2C (with PF113A) H2C-F
Note: For a load current of 3 A max., a spacer and an end
plate are not required. For a load current of 6 A, one
spacer or an end plate is required.
Note: For a load current of 1 A max., a spacer and an end
plate are not required. For a load current of 3 A max.,
one spacer or an end plate is required. For a load cur-
rent of 6 A max. two spacers or two end plates are re-
quired.
Timer Hold-down Clips
Y92H-2
(for PF085A/PF113A
Connecting Socket)
Y92H-1
(for PL08/PL11
Connecting Socket)
(See
note)
(See
note)
(See note)

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
