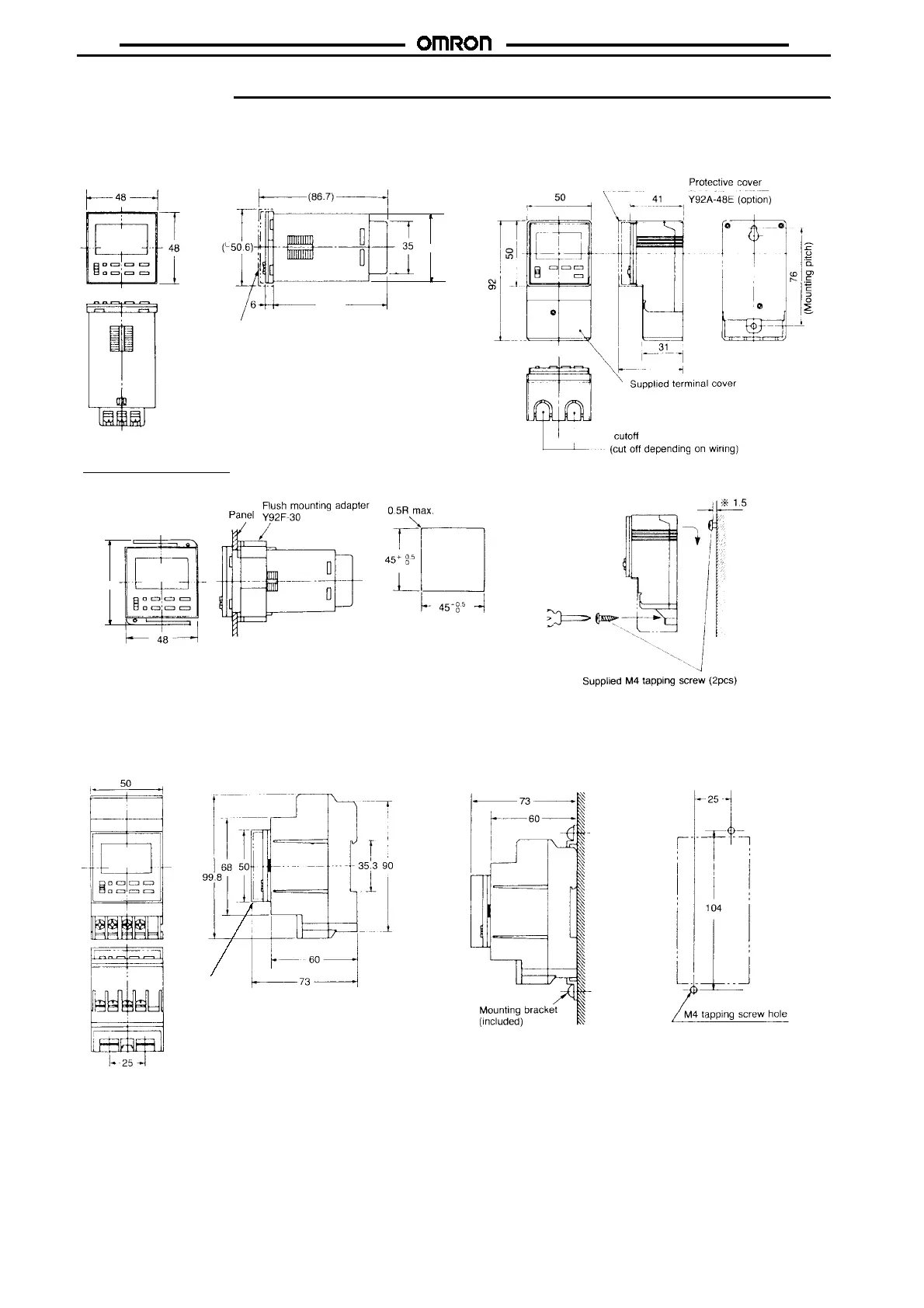

Dimensions
Note: All units are in millimeters unless otherwise indicated.
H5F-B
(Flush Mounting)
H5F-FB
(Surface Mounting)
Mounting Dimensions
Flush Mounting (H5F-B)
Panel Cutout
Mounting
Note: To provided the dimension marked ** tight-
en the screw using the cut off (marked *).
H5F-KB
(Surface/Track Mounting)
Surface Mounting
Mounting Hole
*
**
44.8
Protective cover
Y92A-48 (option)
75.7
49
58
Protective cover
(option)

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
