Omron H3BA User Manual

H2E
H2E
271
Characteristics
Accuracy of operating time
!
5minmax.
Influence of voltage
Influence of temperature
Setting error
!
5minmax.
Cycle time
!
5minmax.
Insulation resistance 100 M
$
min. (at 500 VDC)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min (between current-carrying and non-current-carrying parts and
between contact and control circuit)
1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Vibration resistance Destruction: 16.7 Hz, 4-mm double amplitude
Malfunction: 10 to 55 Hz, 0.5-mm double amplitude
Shock resistance Destruction: 1,000 m/s
2
(approx. 100G)
Malfunction: 200 m/s
2
(approx. 20G)
Ambient temperature Operating: --10
"
Cto55
"
C
Ambient humidity Operating: 45% to 85%
Life expectancy 2 years min. (10,000 contact operations min.)
Weight H2E(-Y): approx. 315 g
H2E-(Y)2: approx. 360 g

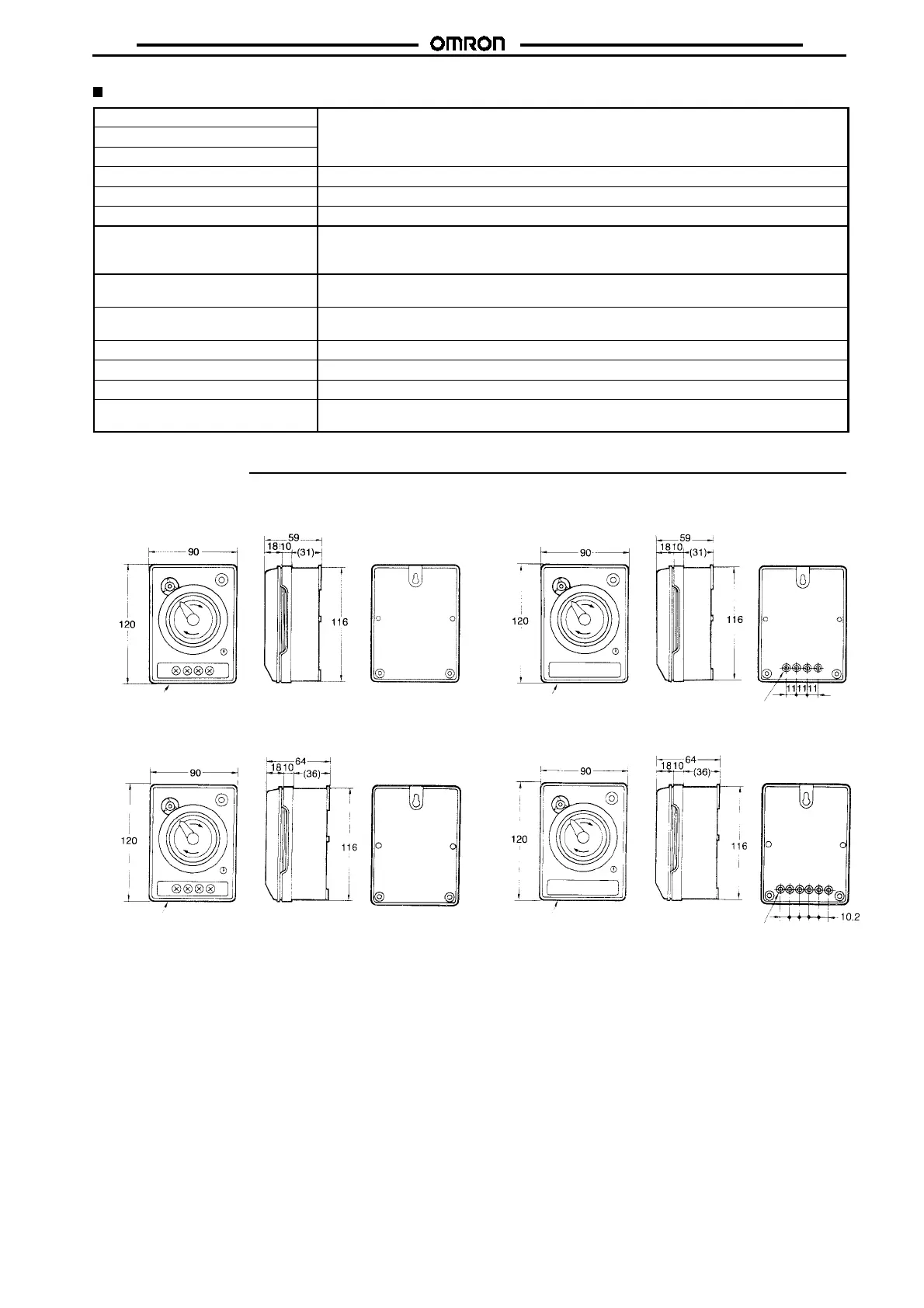

Dimensions
Note: All units are in millimeters unless otherwise indicated.
H2E
Four 8 dia. holes for
tightening screw
terminal
H2E-Y
H2E-2 H2E-Y2
Six, 8 dia. holes for
tightening screw
terminal
Terminal screws M3.5 x 10
Terminal mounting pitch: 11
Terminal screws M3.5 x 10
Terminal mounting pitch: 11
Terminal screws M3.5 x 10
Terminal mounting pitch: 10.2
Terminal screws M3.5 x 10
Terminal mounting pitch: 10.2

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
