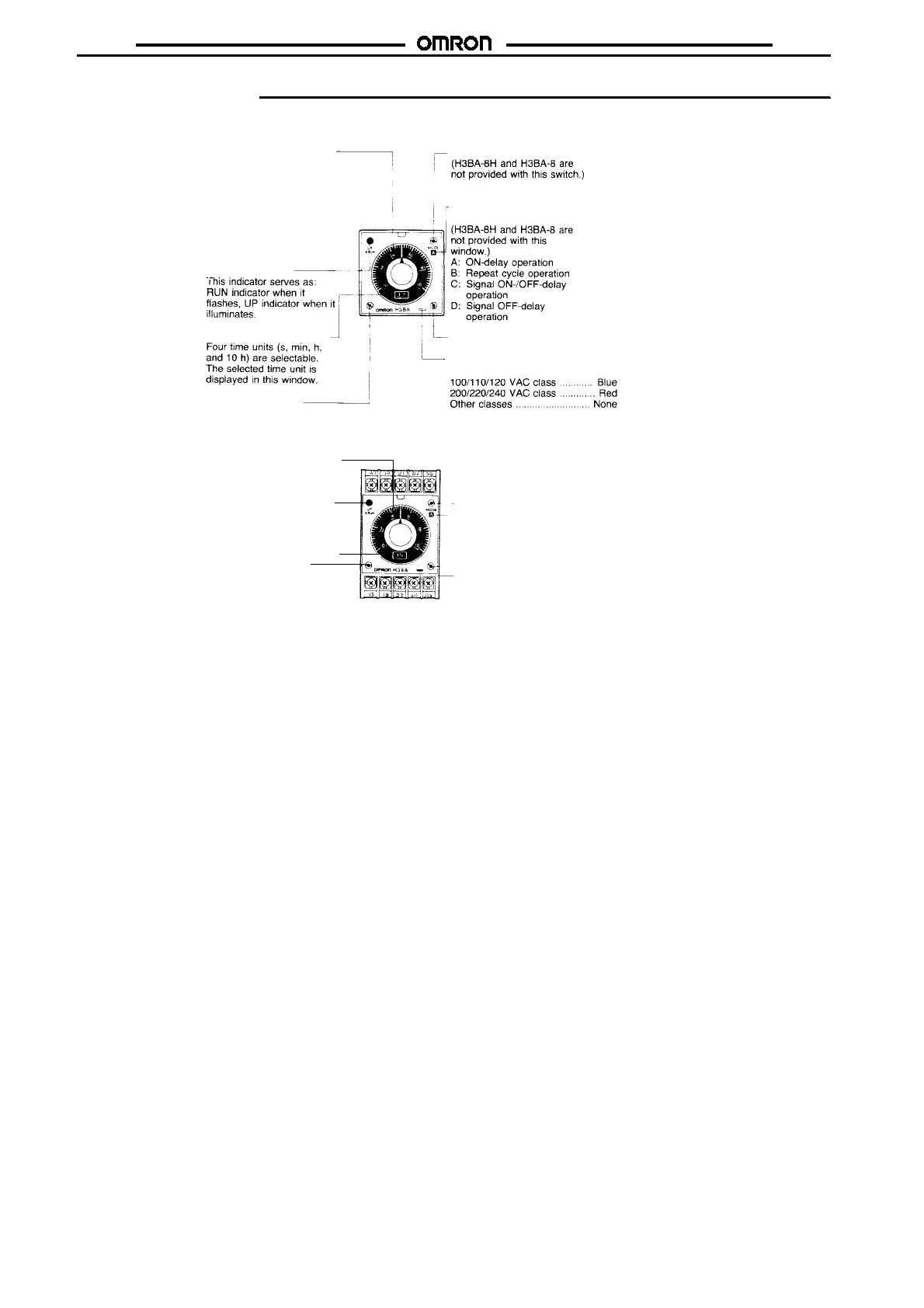

Nomenclature
H3BA/H3BA-8(H)
H3BA-FA
Dial Digit Display Windows
Sixteen time specifications
(four time ranges x four time
units) are selectable within a
range of 0.05 s to 100 hrs
through combinations of two
rotary-switch selectors (i.e.,
rated time selector and time
unit selector).
RUN/UP Indicator
Time unit display Windows
Rated Time Selector
Operation Mode Selector
Operation Mode Display Window
Time Unit Selector
Rated Voltage Classification
Color Code
Dial Digit Display Windows
RUN/UP Indicator
Time Unit Display Window
Rated Time Selector
Operation Mode Selector
Operation Mode Display Window
Time Unit Selector
Rated Voltage Classification Color Code

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
