H3BA
H3BA
291

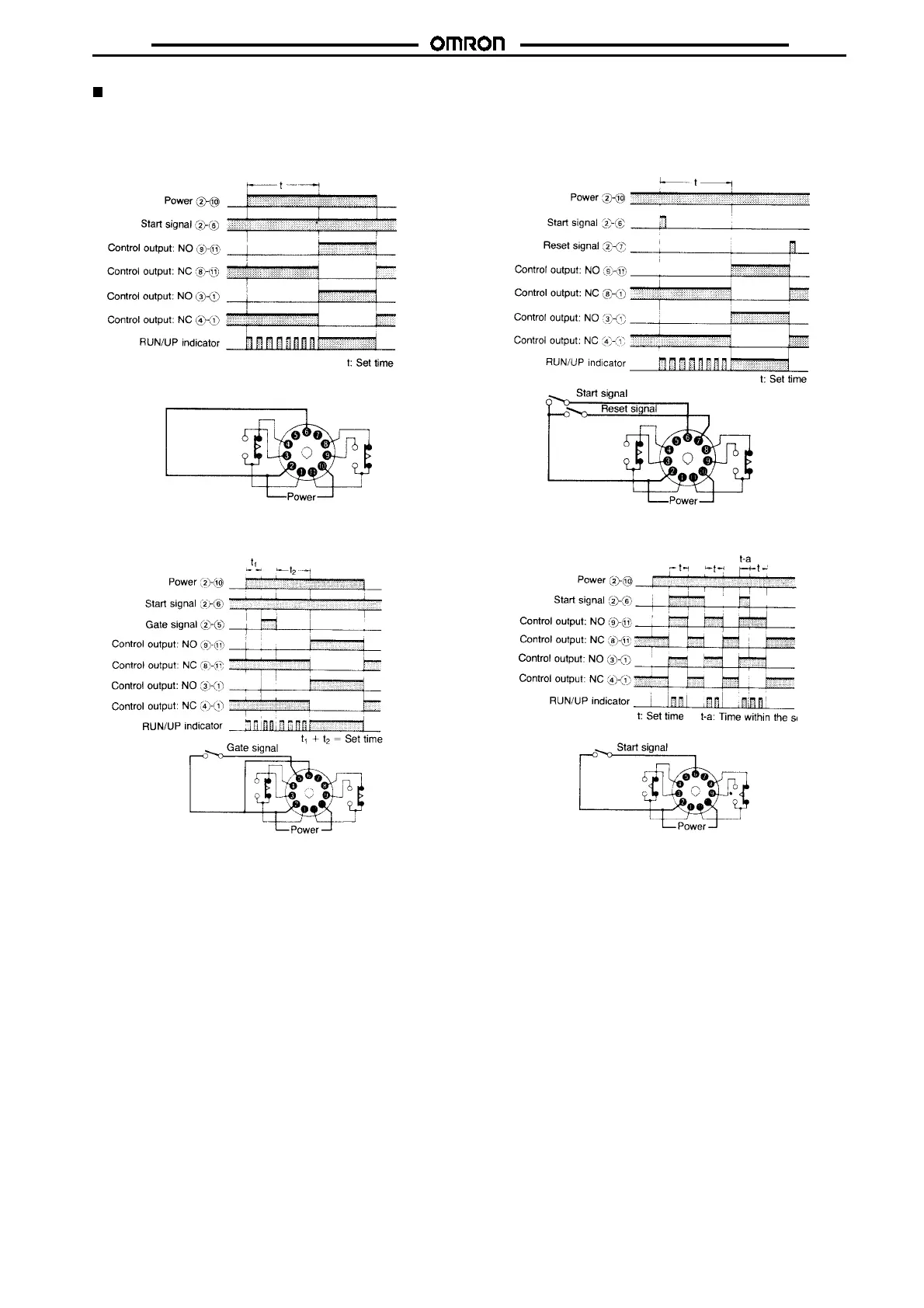

Application Examples
StandardtypeH3BAisusedforthefollowingapplicationexamples.Intheschematicdiagrams,eachthicktheindicatesthewiringnecessaryfor
selecting the desired operation mode.
ON-delay Operation (A Mode)
Power-ON Start/Power-OFF Reset Signal Start/Signal Reset
Integrating Operation by Gate Signal
Signal ON-/OFF-delay Operation (C Mode)

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Omron H3BA and is the answer not in the manual?

Omron H3BA Specifications

General IconGeneral
Time Range0.05 s to 300 h
Output TypeRelay
Contact FormDPDT
WeightApprox. 200 g
Operating Temperature-10 to 55°C
Storage Temperature-25 to 65°C
Dimensions48mm x 48mm x 78mm
TypeSolid-state timer
