H3CR-F
H3CR-F
42

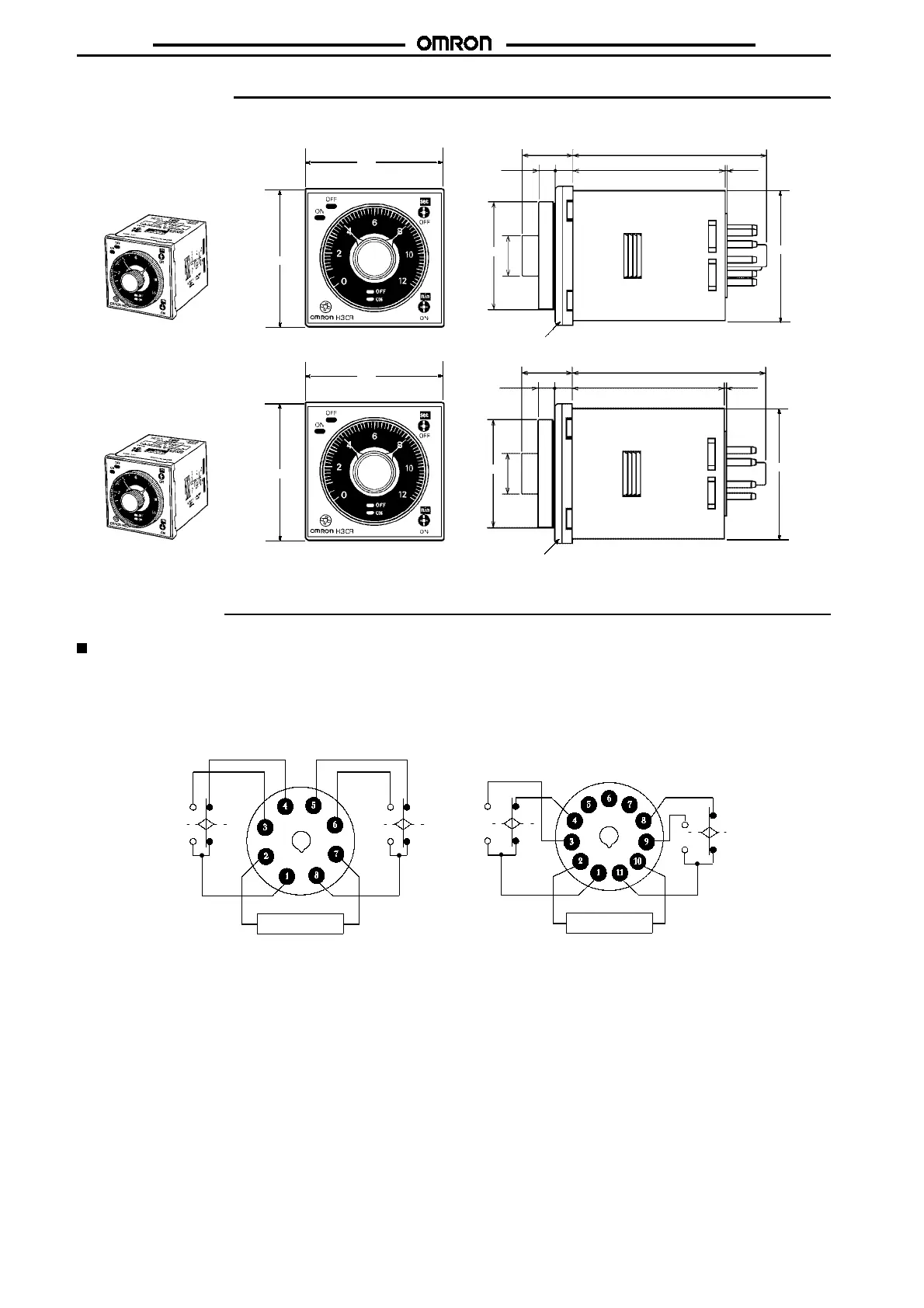

Dimensions
Note: All units are in millimeters unless otherwise indicated.
H3CR-F
H3CR-FN
H3CR-F-300
H3CR-FN-300
H3CR-F8
H3CR-F8N
H3CR-F8-300
H3CR-F8N-300
66.6
0.7
17.4
37 dia
52.365.7
R1.3
14 dia.
44.8 x 44.8
66.6
0.7
17.4
37 dia
52.365.7
R1.3
14 dia.
44.8 x 44.8
48
48
48
48
Installation
Terminal Arrangement
Power supply
(+)
(~)
(--)
(~)
Power supply
(--)(~)
(+)(~)
H3CR-F
H3CR-FN
H3CR-F-300
H3CR-FN-300
H3CR-F8
H3CR-F8N
H3CR-F8-300
H3CR-F8N-300
Note: Leave terminals 5, 6, and 7 open.
Donot usethem as relay terminals.

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
