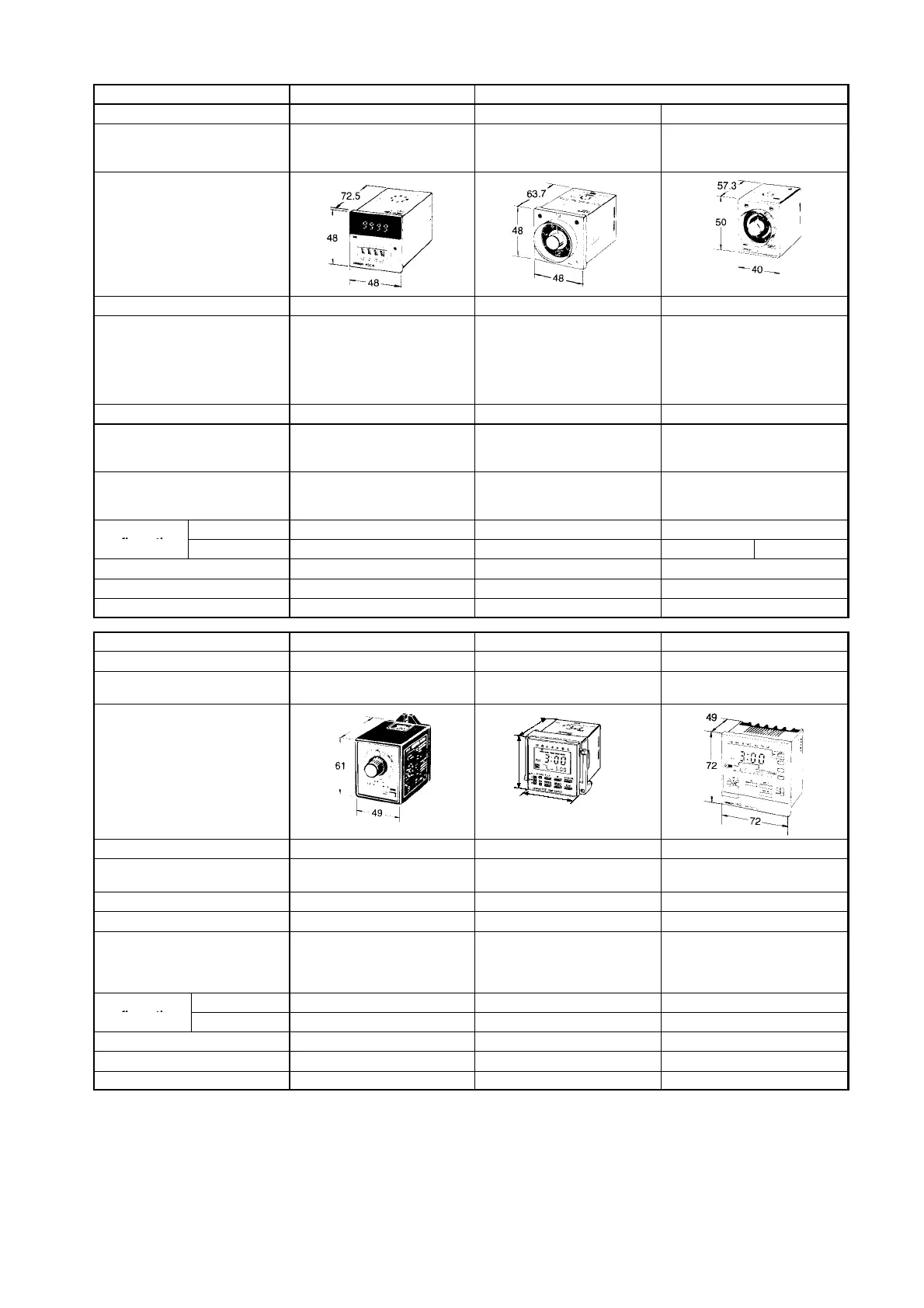

Selection Guide
5
Classification Digital Timer Motor Timer
Model H5CN H2C H2A
Features Miniature DIN-sized (48 x
48 mm) Quartz Timer with
abundant series versions
DIN-sized (48 x 48 mm, 45 x
75 mm) Motor Timer with
variable time range
Miniature, high-performance
Motor Timer
Appearance and dimensions
Time range (60 Hz) 0.001sto99h59min 0.2to30h 0.2 s to 28 h
Supply voltage 100 to 240 VAC (50/60 Hz),
12 to 48 VDC
110, 115, 120, 220, 240 VAC
(50/60 Hz),
100 VAC (50 Hz),
100/110 VAC (60 Hz),
200 VAC (50 Hz),
200/220 VAC (50 Hz)
100, 110, 200, or 220 VAC
(50/60 Hz)
Power consumption 12 VA/2.5 W, 2.5 W 3.5 VA Approx. 3 VA
Accuracy of operating time
!
0.01%
!
0.05 s (power start)
!
0.005%
!
0.03 s (control signal
start)
!
0.5%
!
2%
Control output Contact output: 3 A at 250 VAC
Solid-state output: 100 mA at
30 VDC
6 A at 250 VAC 2 A at 250 VAC
Contact
f
i
t
i
Time-limit SPDT, solid-state SPDT SPDT
configuration
Instantaneous --- SPDT SPDT SPST-NO
Life expectancy 10 x 10
6
operations 30 x 10
6
operations 1x10
6
operations
Approved standards UL, CSA UL, CSA UL, CSA
Page 201 211 219
Classification Motor Timer Digital Daily Time Switch Weekly Time Switch
Model STP H5F H5S
Features Best-selling Motor Timer with
high repeat accuracy
Easy-to-operate Daily Time
Switch for various time control
Weekly Time Switch for various
time controls
Appearance and dimensions
70.5
48
86.7
48
Time range (60 Hz) 0.4 s to 28 h 24hx1week 1 week
Supply voltage 100/110, 200/220 VAC
(50/60 Hz)
100 to 240 VAC (50/60 Hz) 100 to 240 VAC (50/60 Hz),
24 VDC
Power consumption Approx. 5 VA Approx. 2 VA Approx. 3 A
Accuracy of operating time
!
0.5%
!
0.01%
!
0.05 s max.
!
0.01%
!
0.05 s
Control output Time-limit contact:
3 A at 250 VAC
Instanteneous contact:
1.5 A at 250 VAC
Contact output: 15 A at
250 VAC
15 A at 250 VAC
Contact
f
i
t
i
Time-limit SPDT SPST-NO SPST-NO x 2 circuits
configuration
Instantaneous SPDT, SPST-NO --- ---
Life expectancy 1x10
6
operations 50 x 10
3
operations 50 x 10
3
operations
Approved standards UL, CSA UL, CSA UL, CSA
Page 224 231 241

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
