H3DR-A/P/M
H3DR-A/P/M
72

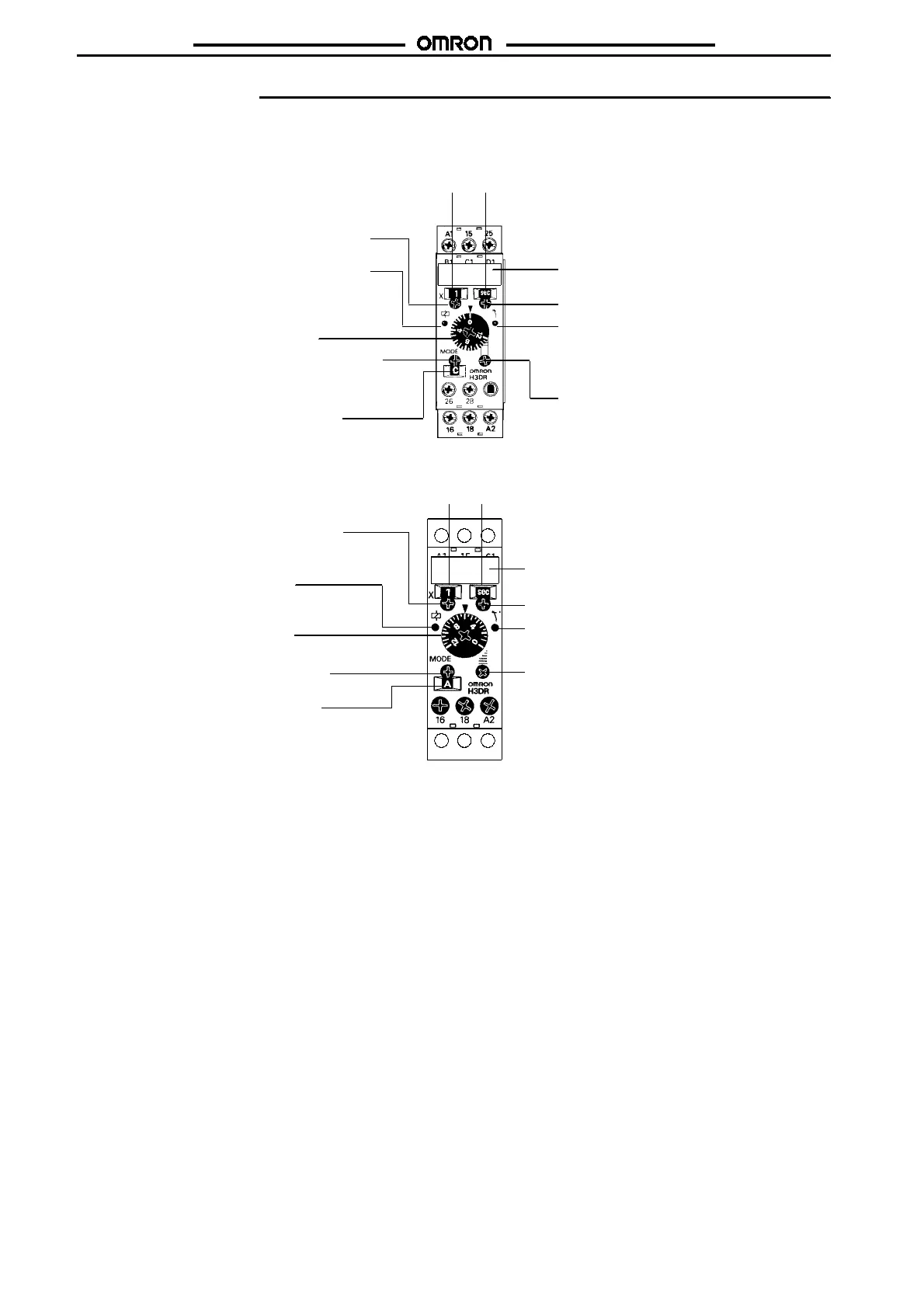

Nomenclature
NPN Input Models
H3DR-P
Scale range selector (select 0.1 or 1)
Power indicator (green)
Time setting dial (set time)
Operating mode selector (select a
mode from A, B, B2, C, D, and E)
Operating mode display window
Nameplateforuseruse(20x8mm)
Time unit selector (select one
from sec, min, hrs, and 10 h)
Output indicator (orange)
Fine-tuning dial (use to fine-
tune the set time)
Scale range
display window
Time unit display
window
Scale range
display window
Fine-tuning dial (use to
fine-tune the set time)
Power indicator (green) (Flashes when
Timer operates; lit when Timer stops
operating)
Time setting dial (set time)
Operating mode selector (select a mode
from A, B, B2, C, D, and E)
Operating mode display window
Nameplateforuseruse(20x6.6mm)
Time unit selector (select one
from sec, min, hrs, and 10 h)
Output indicator (orange)
Time unit display
window
H3DR-A/-AS
Scale range selector (select 0.1 or 1)

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
