Omron H3BA User Manual

H3DR-G
H3DR-G
97

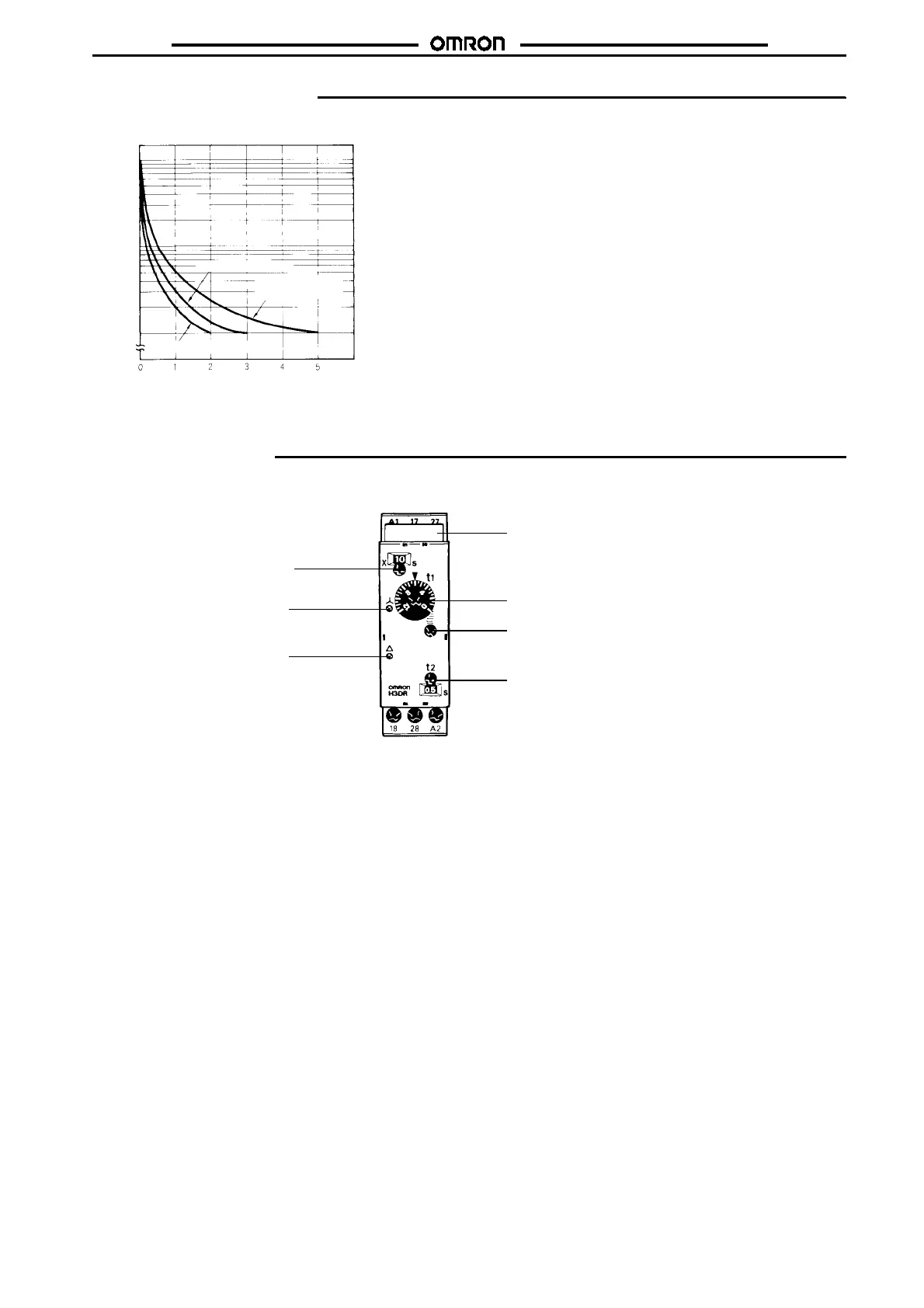

Engineering Data
Reference:A maximum current of 0.15 A can be switched at 125 VDC (cos
%
=1)
and a maximum current of 0.1 A can be switched if L/R is 7 ms. In
both cases, a life of 100,000 operations can be expected.
The minimum applicable load is 10 mA at 5 VDC (failure level: P).
Switching operations (x 10 )
3
Load current (A)
30 VDC, L/R = 7 ms
250 VAC (cos
%
=0.4)
250 VAC/30 VDC
(cos
%
=1)
10,000
5,000
1,000
500
100
Nomenclature
Note: The fine adjustment dial affects the setting on the main dial.
Star operation
indicator (green)
Delta operation
indicator (orange)
Star operation time scale selector
(x 1 s, x 10 s)
Nameplate (for user application)
(20 x 6.6 white panel)
Time setting dial (for setting
star operation time)
Star-delta transfer time selector
(select one from 0.05 s, 0.1 s,
0.25 s, and 0.5 s)
Fine adjustment dial

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
