Omron H3CA - Page 5

Product Operation and Setup Instructions 1A983
Operation (Continued)

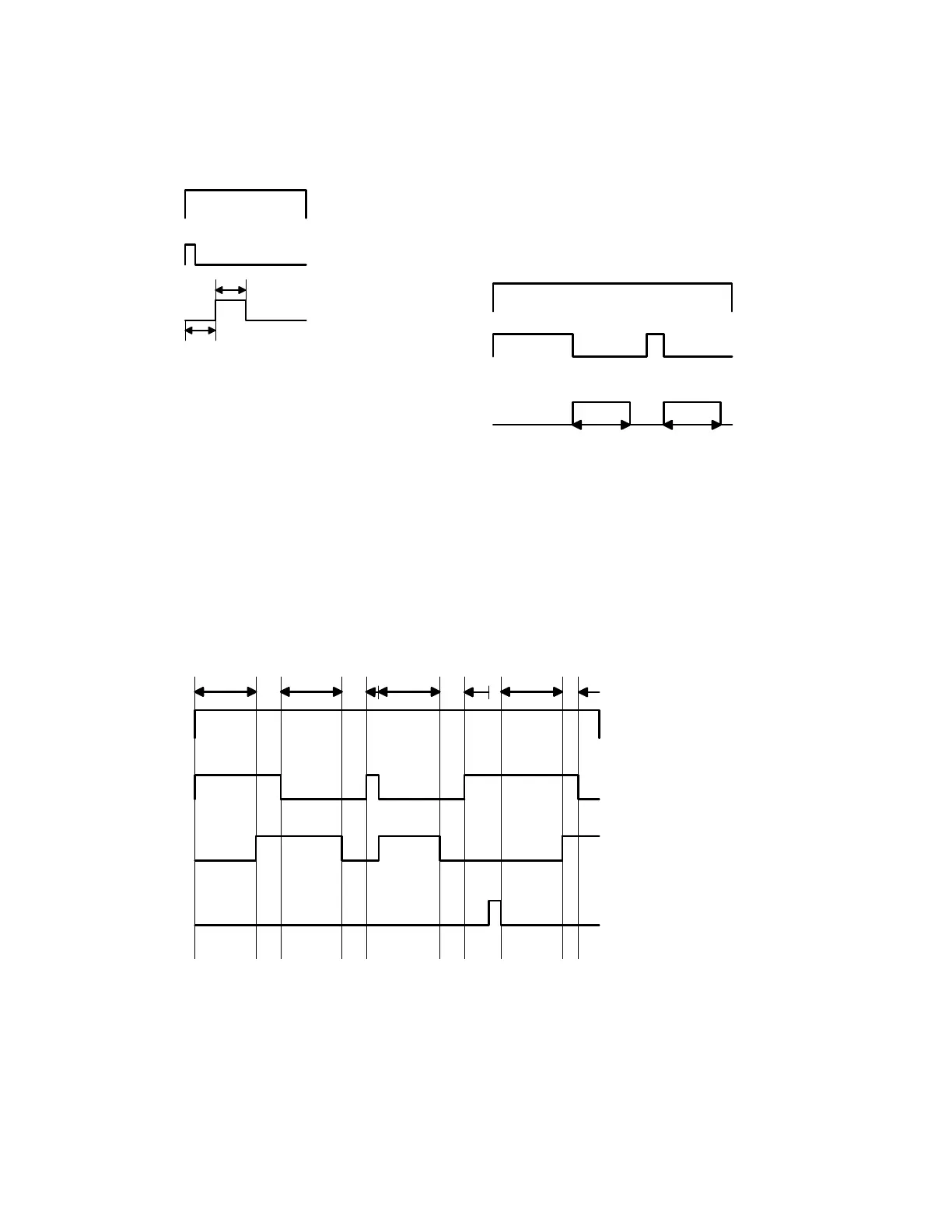

Figure 10
Mode G
Signal ON-delay/OFF-delay:
Power is continuously applied.
Timing begins on both the leading
and trailing edges of the start
input. The output relay switches
when the accumulated time from
the leading edge equals the set
time, either connecting or
disconnecting load. It also
switches for the set amount of time
from the trailing edge of the start
input.
Figure 11
Power
2 -10
ON
OFF
ON
OFF
Output
9 - 11
On for set
time
Off for set
time
Start 3 - 6
ON
OFF
Power 2 -
10
ON
OFF
Start 3 - 6
ON
OFF
ON
OFF
Timing
Output 9 -
11
ON
OFF
Reset 3 - 7
Timing Timing Timing
Mode H
Signal OFF-delay:
Power is continuously applied.
Timing begins at the trailing edge
of the start input. The output relay
is switched only during timing.
Figure 12
Power 2 -10
ON
OFF
Start 3 - 6
ON
OFF
ON
OFF
Timing
Output 9 - 11
Timing
