H3DR-H
H3DR-H
102

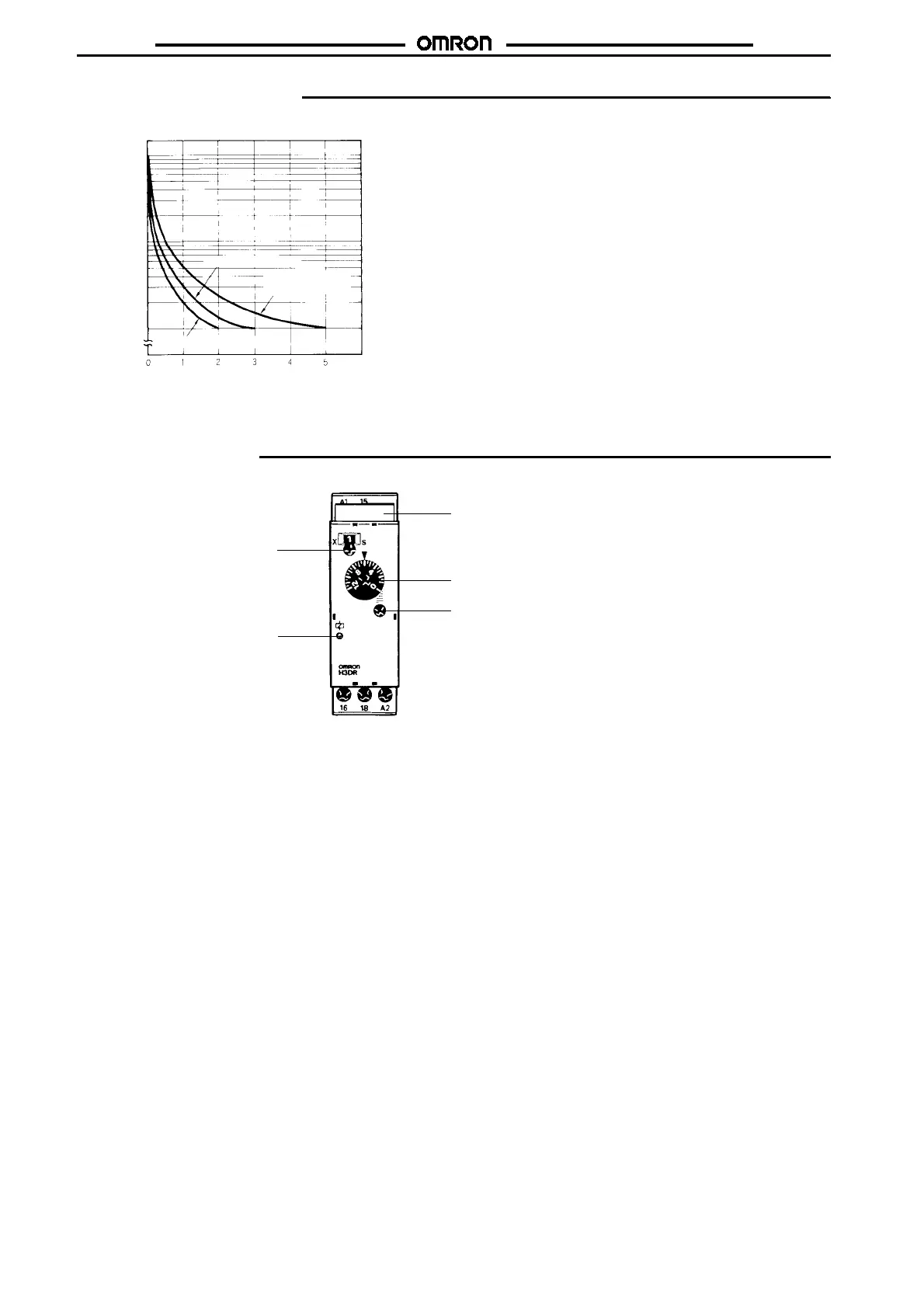

Engineering Data
Reference:The minimum applicable load is 100 mA at 5
VDC (failure level: P).
Switching operations (x 10 )
3
Load current (A)
30 VDC, L/R = 7 ms
250 VAC (cos
%
=0.4)
250VAC/30VDC
(cos
%
=1)
10,000
5,000
1,000
500
100
Nomenclature
Note: The fine adjustment dial affects the setting on the main dial.
Time scale selector
(x 0.1, x 1, or x 1 s, x 10 s)
Time setting dial (for setting
power OFF-delay time)
Nameplate (for user application)
(20 x 6.6 white panel)
Fine adjustment dial
Power indicator (green)
