Omron H3CR-A User Manual

H3CA
H3CA
112

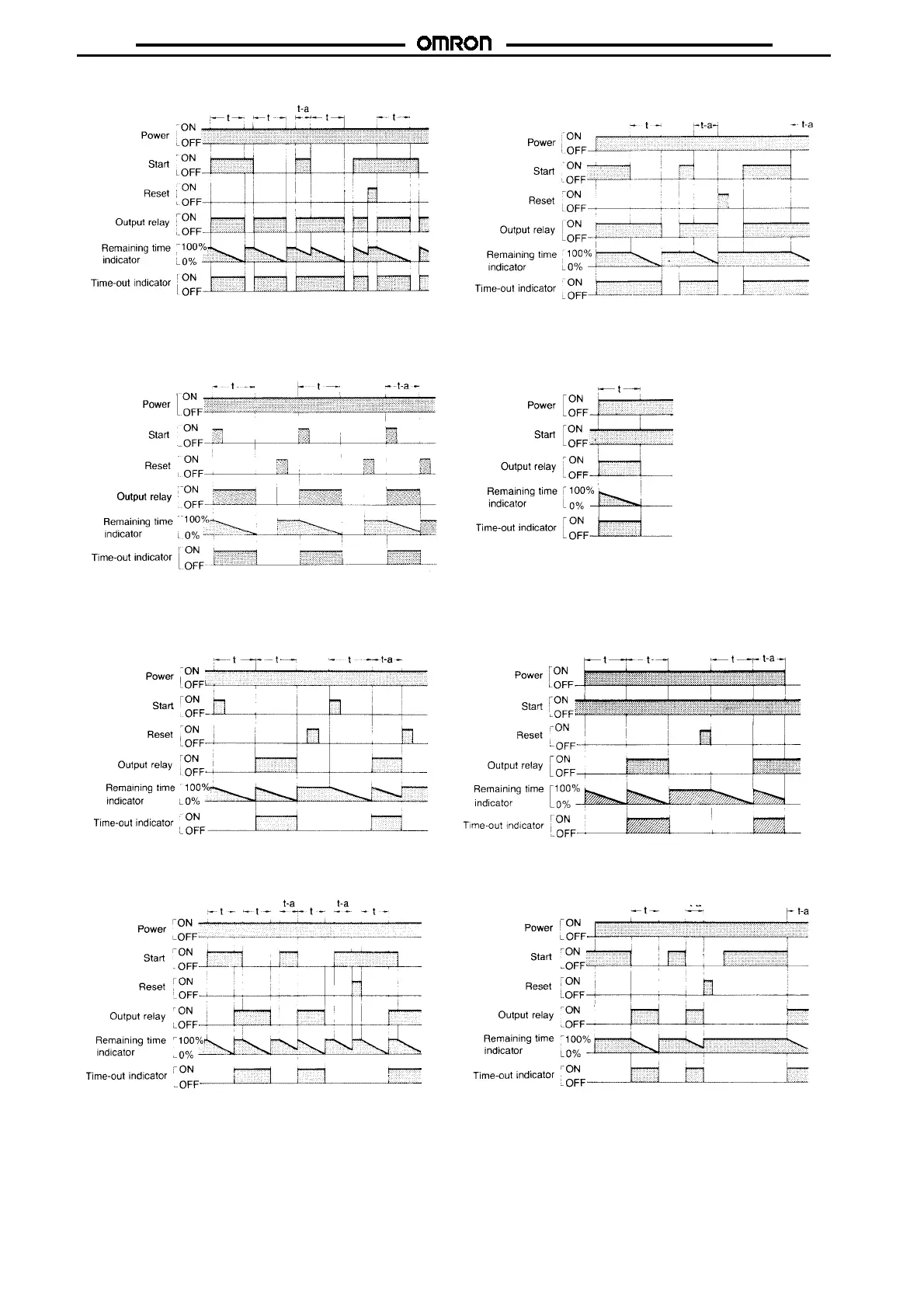

Signal ON/OFF-delay Operation 1 (C Mode) Signal OFF-delay Operation 1 (D Mode)
t: Set time; t-a: Time within the set time t: Set time; t-a: Time within the set time
Note: 1. The minimum signal input time is 0.05 s.
2. Operation 1 refers to the version in which the output relay operates when the Start signal is ON.
Interval Operation (E Mode)
Signal Start
t: Set time; t-a: Time within the set time
t: Set time
Note: The minimum signal input time is 0.05 s.
One-shot and Flicker Operation (F Mode)
Signal Start
Power-ON Start/Power-OFF Reset
Note: The minimum signal input time is 0.05 s.
t: Set time; t-a: Time within the set time t: Set time; t-a: Time within the set time
Note: The minimum signal input time is 0.05 s.
Signal ON/OFF-delay Operation 2 (G Mode) Signal ON/OFF-delay Operation 2 (H Mode)
Note: 1. The minimum signal input time is 0.05 s.
2. Operation 2 refers to the version in which the output relay does not operate when the Start signal is ON.
t: Set time; t-a: Time within the set time t: Set time; t-a: Time within the set time

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
