Omron H3CR-A User Manual

H3CA
H3CA
115

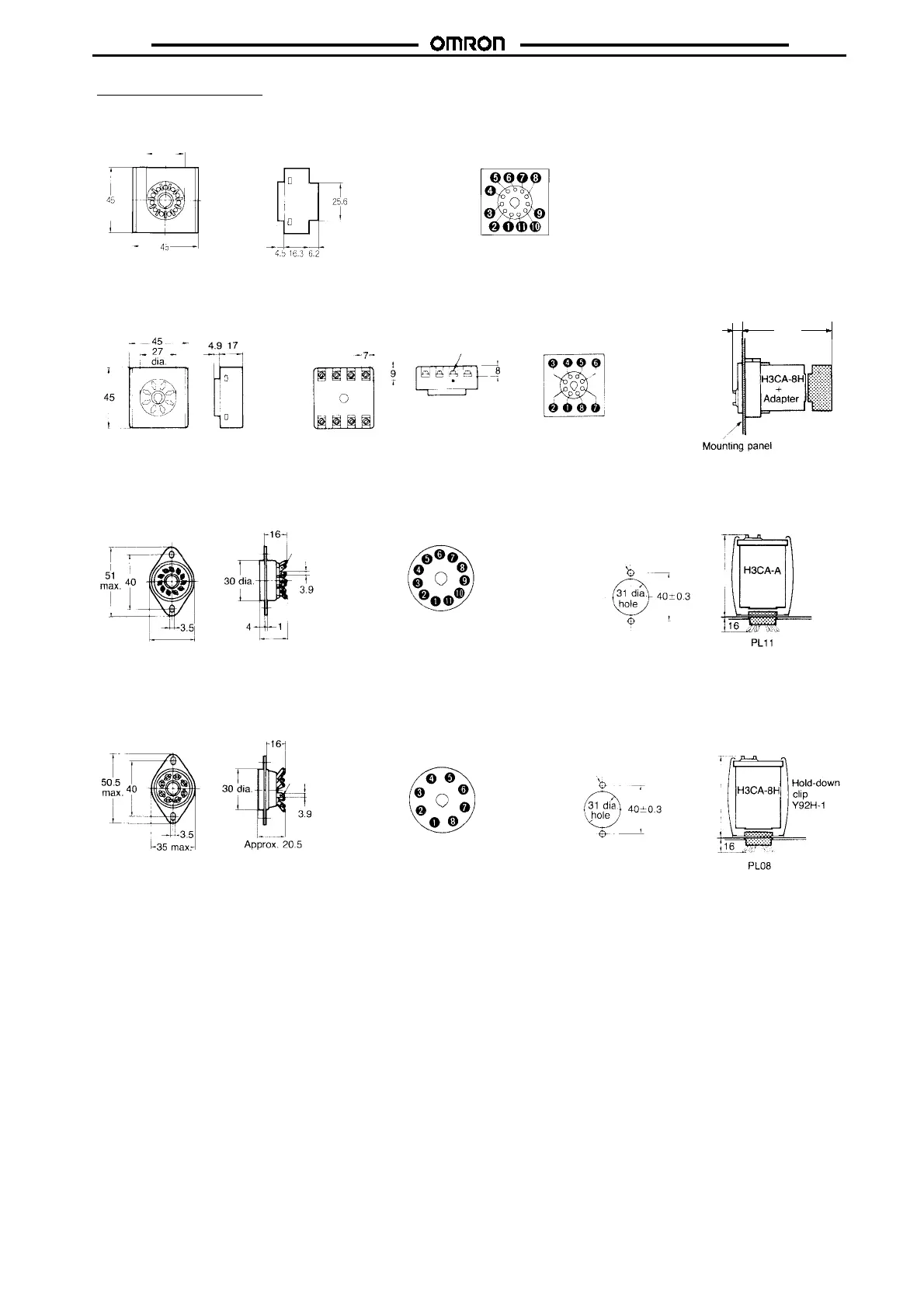

Hold-down
clip
Y92H-1
79.6
Back Connecting Socket
P3GA-11
Terminal Arrangement
(Bottom View)
Terminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
P3G-08
86.3
10.9
Mounting HolesTerminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
PL11
Approx. 20.5
Two, 3.5 dia. or M3
socket mounting holes
Two, 2 dia. holes
M3.5
P3G-08
35 max.
Two, 2 dia.
holes
Mounting HolesTerminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
PL08
Two, 3.5 dia. or 3M
socket mounting holes
27 dia.
79.6

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
