Omron H3CR-A User Manual

New H3Y
New H3Y
130

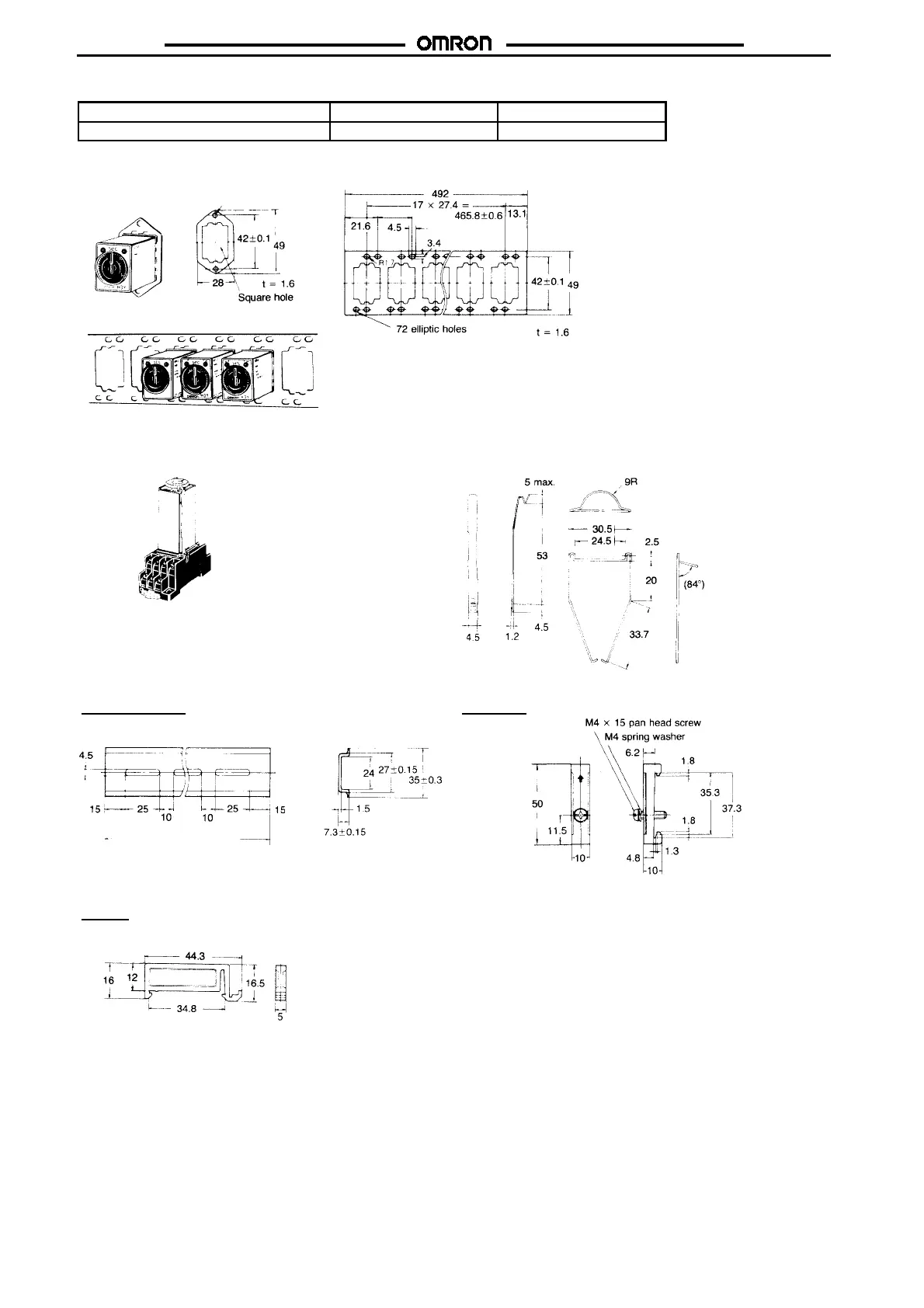

Socket Mounting Plates (t = 1.6)
Applicable socket For mounting 1 socket For mounting 18 sockets
PY08, PY14, PY08QN(2), PY14QN(2) PYP-1 PYP-18
Note: PYP-18 may be cut to any desired length.
PYP-1
Two, 3.4-dia. holes
PYP-18
Relay Hold-down Clips Y92H-3 for
PYF
j
A Socket
Y92H-4 for
PY
j
Socket
Mounting Track
PFP-100N/PFP-50N (see note 1)
End Plate
PFP-M
1000 (500) (See note 2)
Note: 1. Meets DIN EN50022
2. This dimension applies to PFP-50N.
Spacer
PFP-S

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
