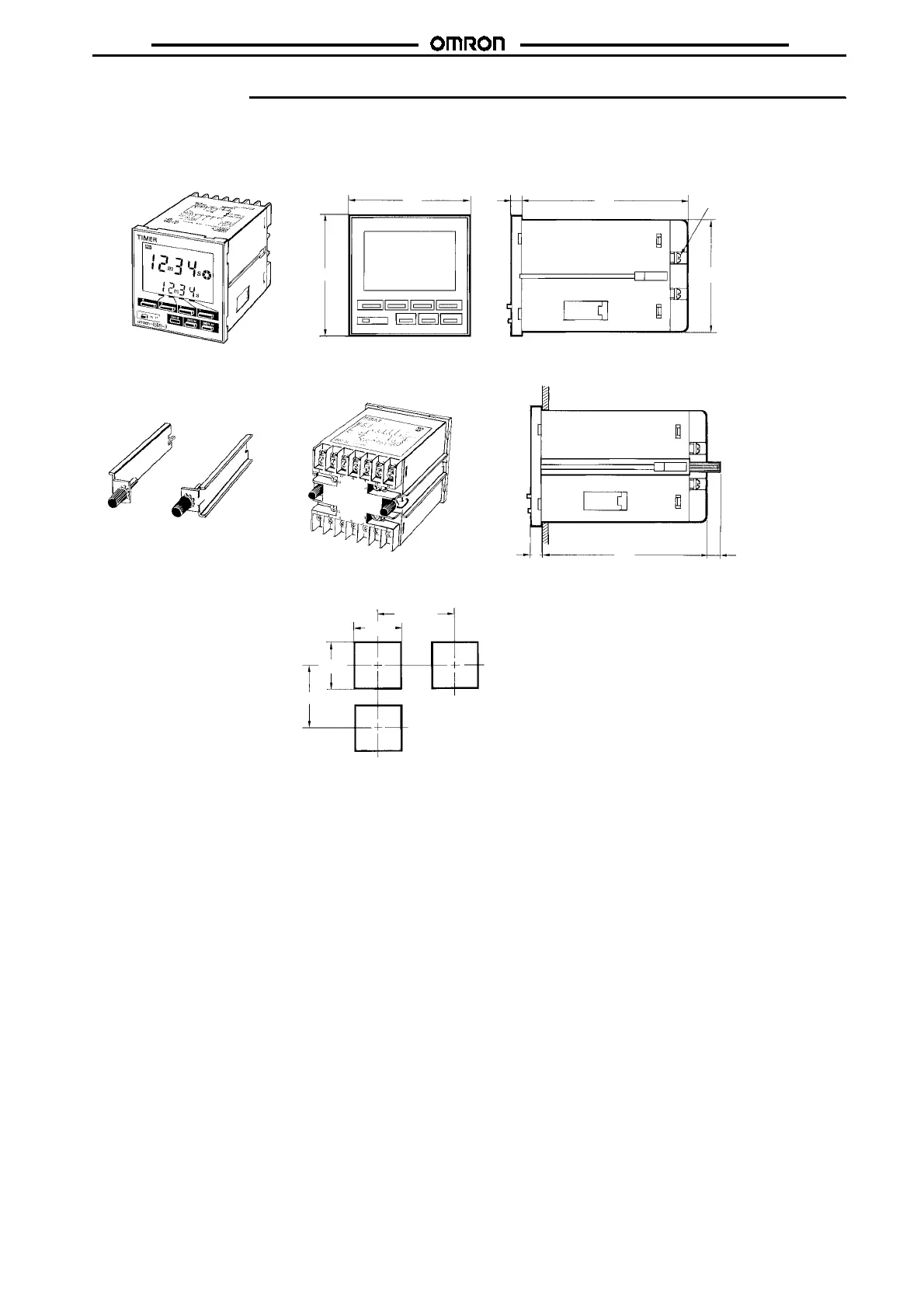

Dimensions
Note: All units are in millimeters unless otherwise indicated.
Panel Mounting
H5BR
M3.5 terminal screw
(effective length: 6 mm)
7 + panel thickness
Panel Mounting Adaptor
Panel Cutouts
Panel cutouts are
as shown at right.
(according to DIN43700).
Panel
72
72
6
100
67.6
1006
100 min.
82 min.
68
+0.7
-- 0
68
+0.7
-- 0

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
