Omron H3CR-A User Manual

H5CR
H5CR
177

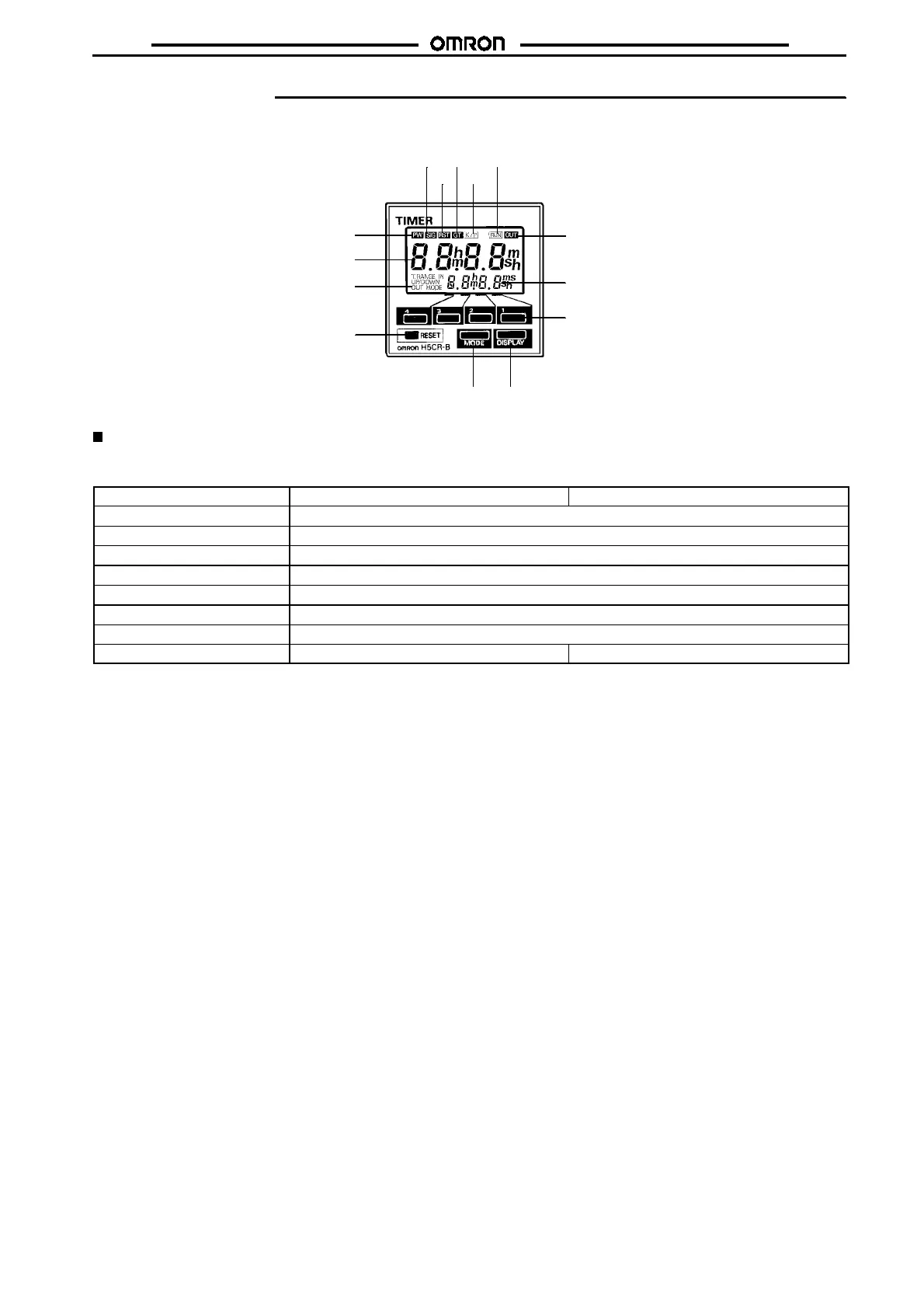

Nomenclature
1. Power indicator
2. Signal input indicator
3. Reset indicator
4. Gate indicator
(not included in the H5CR-L)
5. Key protection indicator
(not included in the H5CR-L)
6. Control output indicator
7. Present value
(character height: 8mm)(Non
significant zeroes suppressed)
8. Set value
(character height: 4 mm)
(Indicates value in set function mode)
9. Mode indicator
10. Timing indicator
Display
11. Increment keys (1 to 4)
(Used to change the
corresponding digit of the set
value. Used to change data in the
set mode.)
12. Display key
(Switches to the present value
display.)
Operation key
13. Mode key
(Switches from run mode to
set mode. Changes items in the
set mode.
14. Reset key
(Resets timing and outputs.)
2
3
4
5
10
1213
14
9
1
7
11
6
8
Factory Settings
The following table shows the timer settings when it is shipped. Please change the settings as necessary to suit the system before operation.
Settings and the display receive power from the internal battery and are therefore unaffected by external power interruptions.
Model
H5CR-B (Standard)/H5CR-S (Short body) H5CR-L (Basic)
Time range --.--s
Present value 0.00 s
Presets 0.00 s
UP/DOWN mode UP
Output mode A: Signal on delay (I)
Output time Hold
Input signal time 20 ms
Key protect level KP-1 ---
Note: With the initial settings, there will be no output even if the power supply is connected. External inputs and outputs cannot be used
without a power supply.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
