Omron H3CR-A User Manual

H5CR
H5CR
184

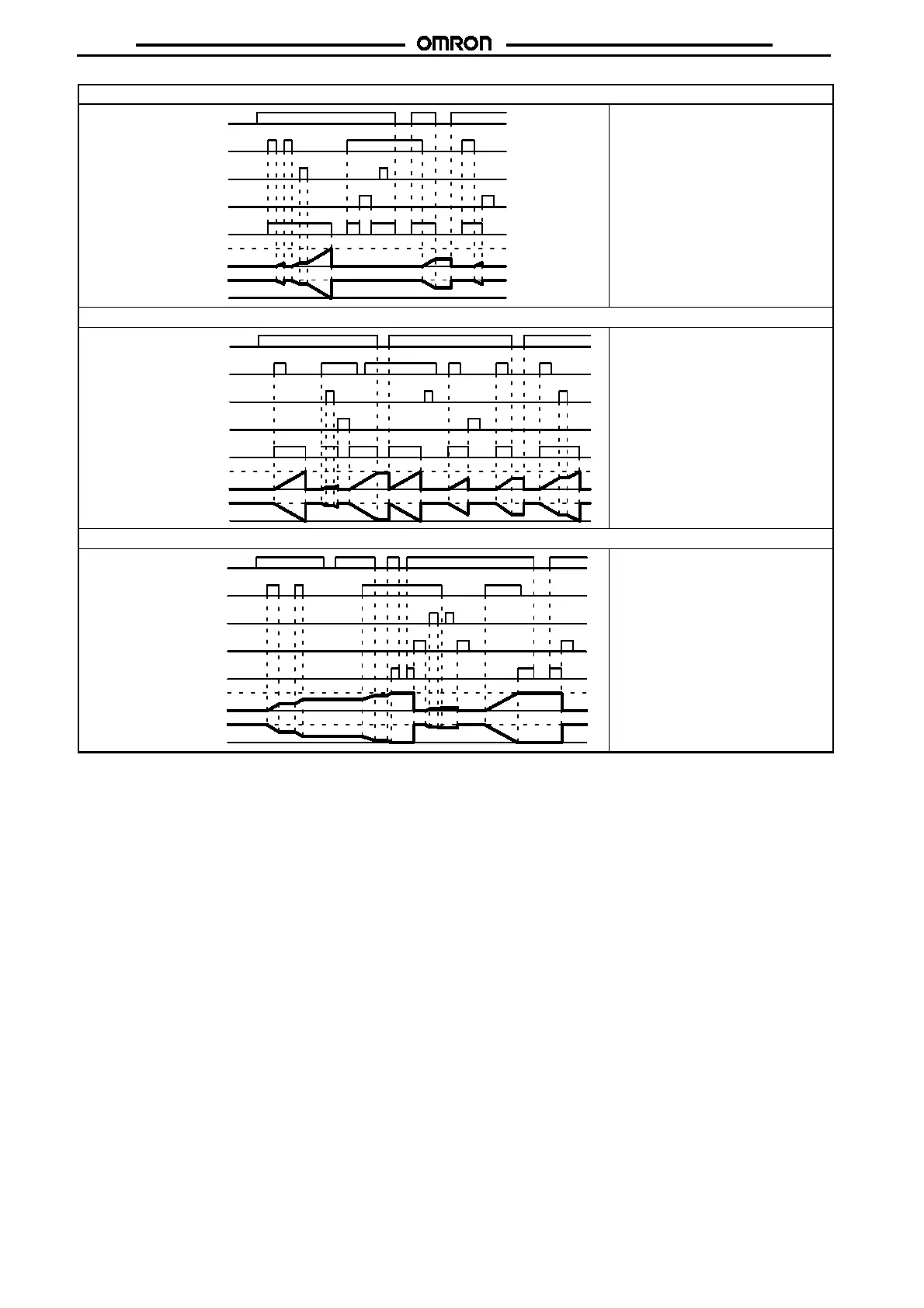

Output mode d: Signal OFF delay (Timer resets when power comes on.)
Power
Start signal
Gate
Reset
Control output
Set value
Timing
diagram
UP
DOWN
0
0
Set value
The control output is energized at the
leading edge of the start signal.
Timing begins at the trailing edge of
the start signal. The control output is
de-energized when the present value
equals the preset time.
Output mode E: Interval (Timer resets when power comes on.)
Power
Start signal
Gate
Reset
Control output
Set value
Timing
diagram
UP
DOWN
0
0
Set value
Timing begins on the leading edge of
the start signal. The control output is
only energized during timing. The
timer is reset when power is
interrupted or a reset signal is applied.
Output mode F: Cumulative (Timer does not reset when power comes on.)
Power
Start signal
Gate
Reset
Control output
Set value
Timing
diagram
UP
DOWN
0
0
Set value
Timing begins on the leading edge of
the start signal. The control output is
energized when the cumulative
elapsed time of the start signal is
equal to the preset time. The output is
sustained until power is interrupted or
a reset signal applied.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
