Omron H3CR-A User Manual

H5AN
H5AN
194
Programming of Specifications
The built-in specifications selector switches are used for program-
ming UP or DOWN display, rated time, operation mode, and output
level of the solid-state output when the set time has elapsed, etc.
Set these switches for programming the desired functional specifi-
cations by referring to
“Positions and Functions of Specification Se-
lector Switches”.

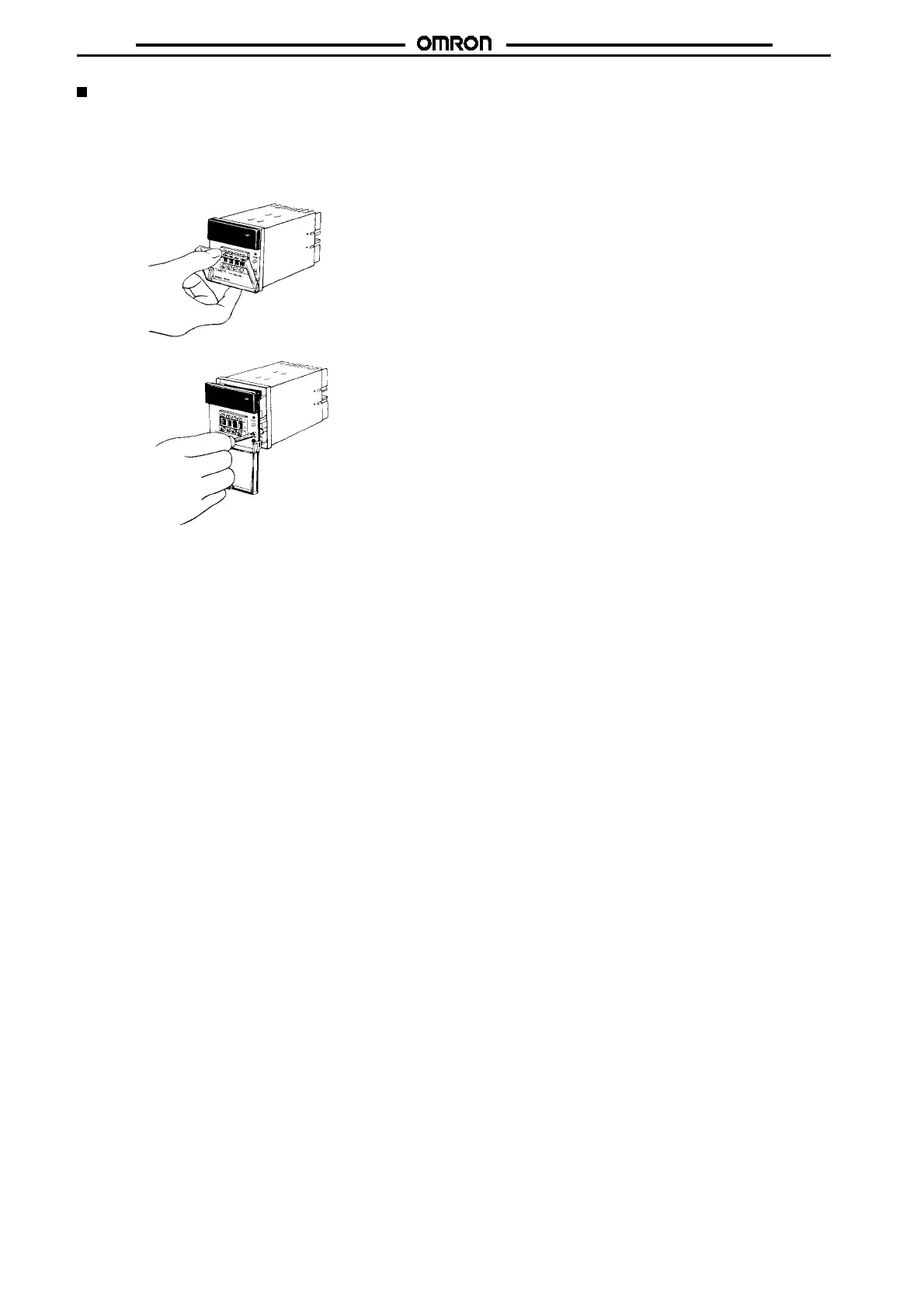

Open the front cover.
The internal unit comes out by loosening
the internal unit fixing screw.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
