Omron H3CR-A User Manual

H2A
H2A
221

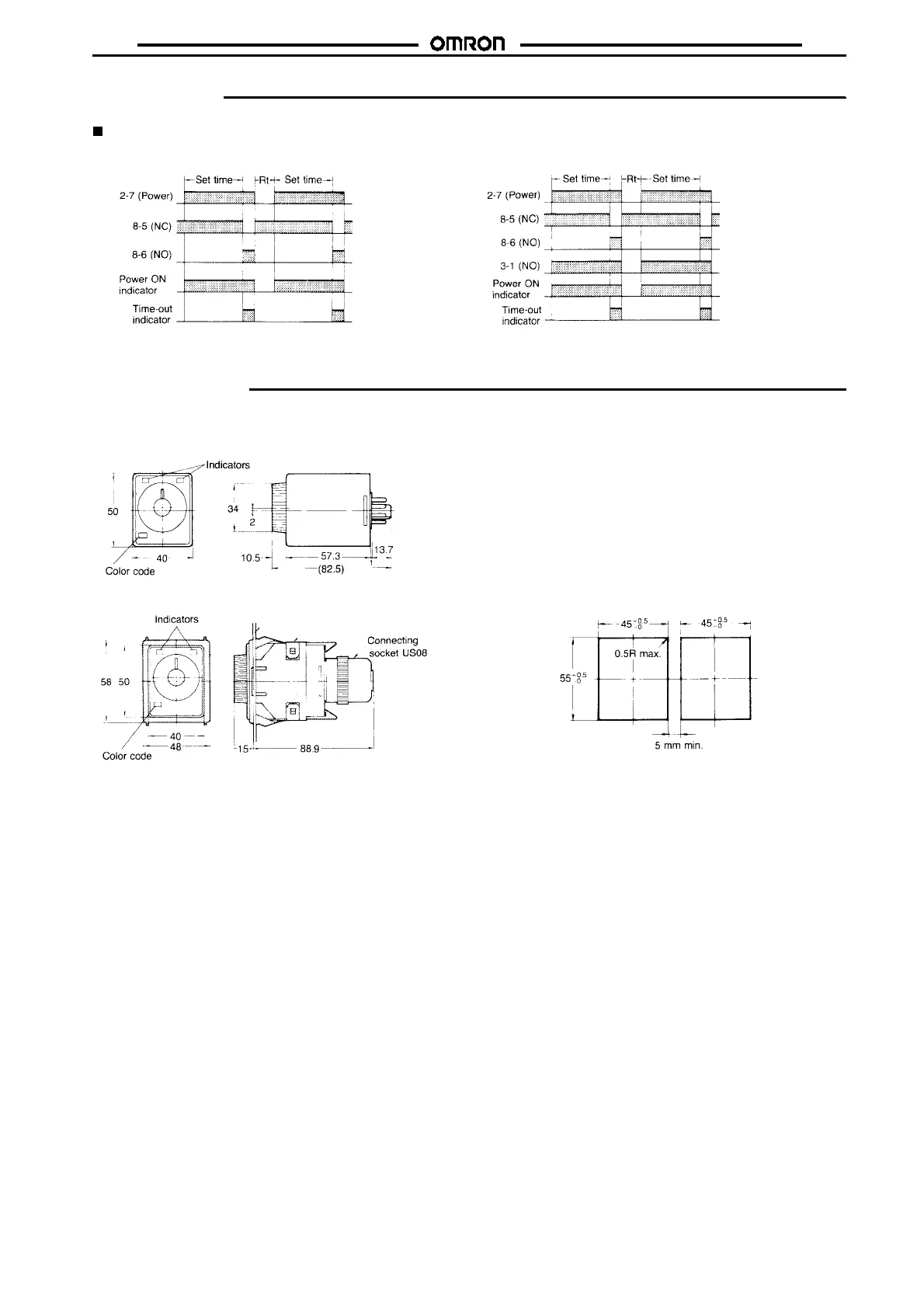

Operation
Timing Chart
H2A H2A-H
Rt: Resetting time Rt: Resetting time
Dimensions
Note: All units are in millimeters unless otherwise indicated.
H2A/H2A-H
Note: F-shaped hook (PHC-1)
for PF085A and L-shaped
hook (PHc-4) for PL08 are
supplied with the timer.
H2A(-H) with Adapter
Panel Cutouts
Note: Back connecting socket US08 and Y-shaped hook
PHC-3aresuppliedwiththetimers.
Panel
Y92F-40 adapter for
flush mounting
(See note)

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
