Omron H3CR-A User Manual

H5F
H5F
238

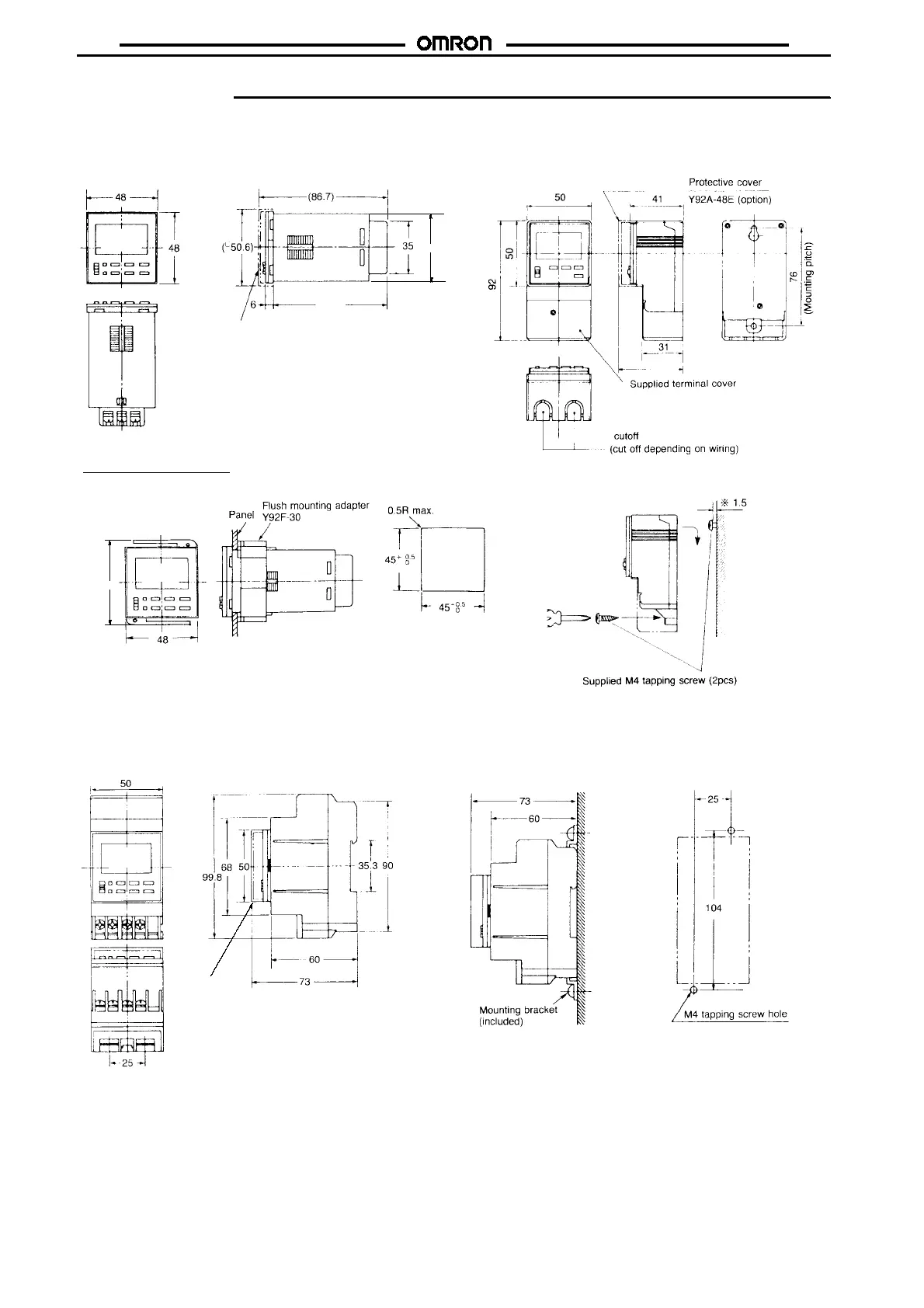

Dimensions
Note: All units are in millimeters unless otherwise indicated.
H5F-B
(Flush Mounting)
H5F-FB
(Surface Mounting)
Mounting Dimensions
Flush Mounting (H5F-B)
Panel Cutout
Mounting
Note: To provided the dimension marked ** tight-
en the screw using the cut off (marked *).
H5F-KB
(Surface/Track Mounting)
Surface Mounting
Mounting Hole
*
**
44.8
Protective cover
Y92A-48 (option)
75.7
49
58
Protective cover
(option)

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
