H5S
H5S
243

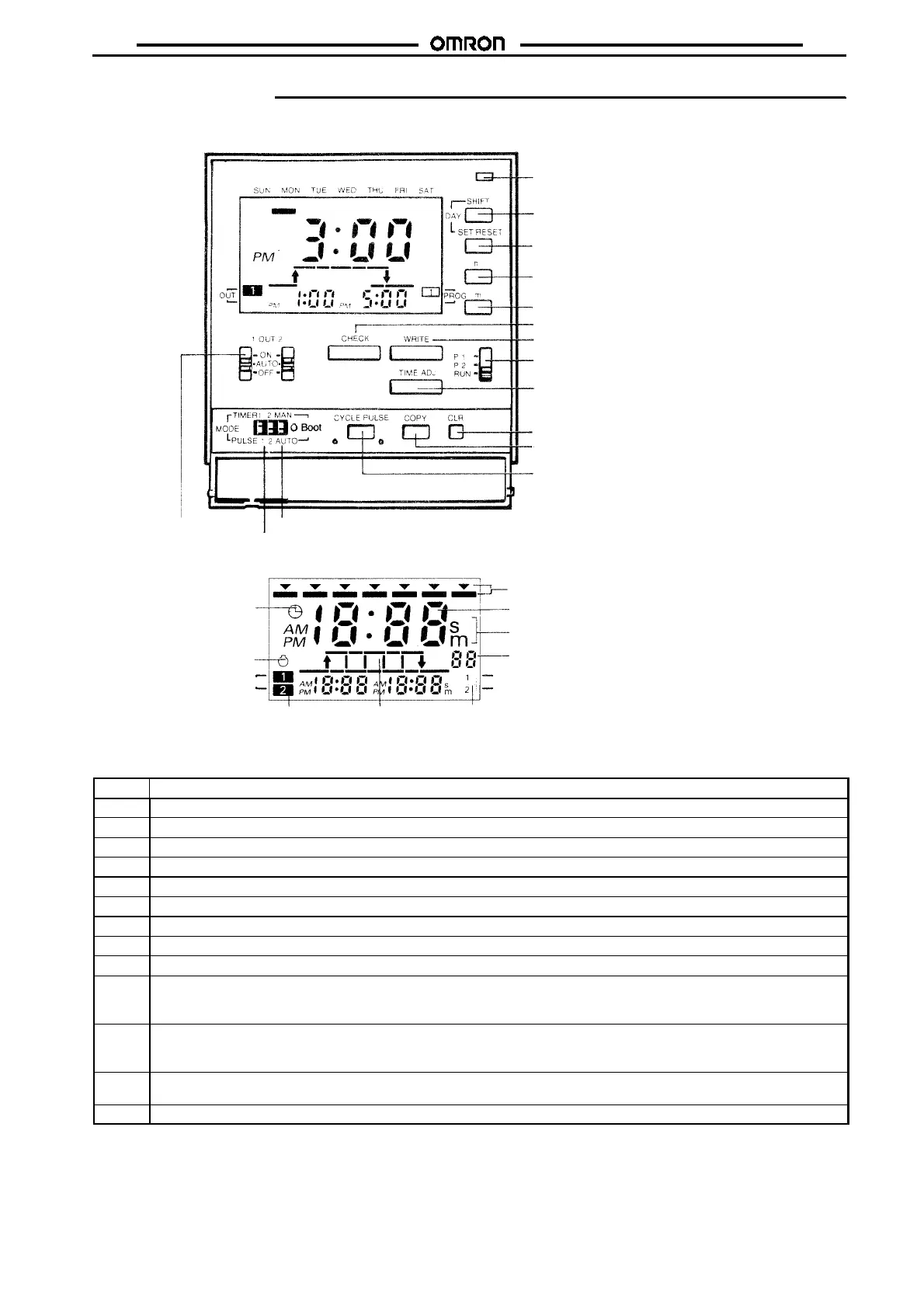

Nomenclature
Front Panel (With Cover Open)
Automatic operation
indicator
1. Shift Key
2. Set/Reset Key
3. h (hour) Key
4. m (minute) Key
5. Check Key
6. Write Key
11. Mode Switch
7. Time (time adjustment) Key
10. Clr (clear) Key
9. Copy Key
8. Cycle/Pulse Key
(Actual size)
12. OUT ON/OFF
Switch
13. Output setting switch
14. Boot selection
Current day/operation day indicators
Display of current time/operation time/time width
Pulse width unit indicator
Display of number of remaining steps
Time adjustment
mode indicator
Power failure
indicator
Output indicator Timing chart
display
Circuit number
indicators
Output
Circuit
Key Operations
No. Function
1
Shifts the cursor (
B
) specifying a day to the right.
2 Sets or cancels a specified day.
3, 4 SetsatimeorON/OFFtimewidth.
5 Monitors the parameters set for an operation during an operation.
6 Sets parameters.
7 Sets a time adjustment mode.
8 Specifies a cyclic operation, or sets a pulse width.
9 Specifies a day substitution operation.
10 Cancels the parameters set for each circuit, or a day override operation.
11 P1: Circuit 1 setting mode
P2: Circuit 2 setting mode
RUN: RUN mode
12 ON: Turns on the output regardless of the setting.
AUTO: Execute an operation as specified.
OFF: Turns off the output regardless of the setting.
13 TIMER: Executes an ordinary timer or cyclic operation.
PULSE: Executes a pulse output operation.
14 Specifies an operation to be performed after power recovery (AUTO/MANUAL).

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
