H5RA
H5RA
278

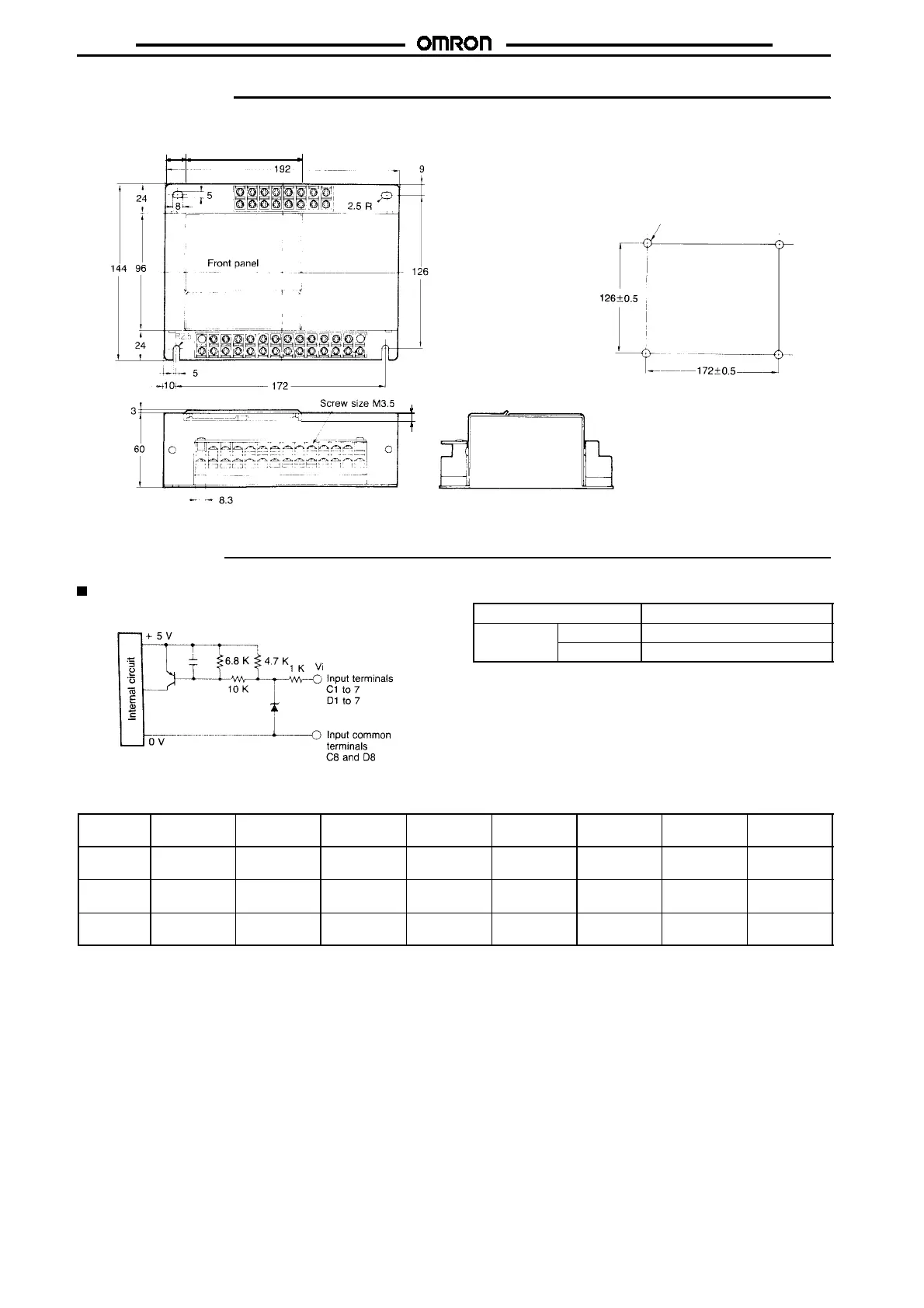

Dimensions
Note: All units are in millimeters unless otherwise indicated.
Mounting Holes
Four, M4 holes
16 96
6.5
Installation
Input Specifications
Circuit Configuration
Input current -- 2 m A m a x .
Signal ON Vi = 2 V max.
OFF Vi = 4 V min.
Terminal Arrangement (Upper Terminals)
Terminal
number
D1 D2 D3 D4 D5 D6 D7 D8
Function OUTPUT
MODE
B2 B3 INHIBIT BATCH
RESET
RESET at
PW.ON
START at
PW.ON
INPUT COM
Terminal
number
C1 C2 C3 C4 C5 C6 C7 C8
Function FORCED
RUN
START 1 START 2 GATE RESET OPER.
CHECK 1
OPER.
CHECK 2
INPUT COM
Note: Use the input common terminals even though they are internally connected to the output common terminals.
