Omron H3CR-A User Manual

H3BA
H3BA
287

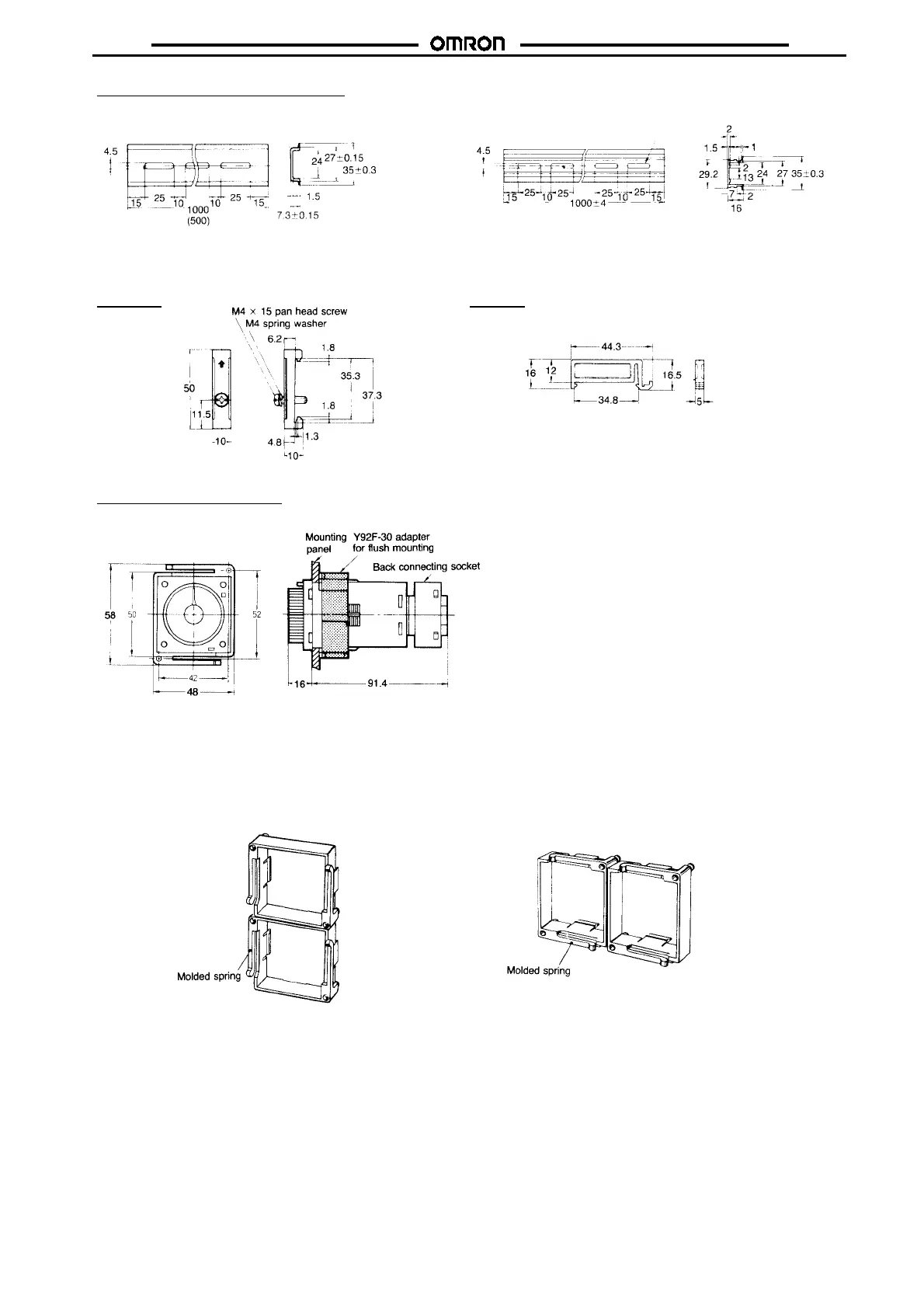

Mounting Track (Meets DIN EN50022)
PFP-100N/PFP-50N
PFP-100N2
Twelve, 25
'
4.5 elliptic holes (see note)
(see note)
Note: This dimension applied to PFP-50N. Note: A total of twelve 25 x 4.5 elliptic holes are provided with 6
holes cut from each rail end at a pitch of 10 mm between
holes.
End Plate
PFP-M
Spacers
PFP-S
Adapter for Flush
Mounting
Y92F-30
Note: Pay attention to the orientation of the adapter when
mounting two ormoretimersinaverticalorhorizontalline.
When mounting two or more timers in a vertical line,
arrange all the adapters so that their molded springs
are positioned on the right and left sides.
When mounting two or more timers in a horizontal
line, arrange all the adapters so that their molded
springs are positioned on the top and bottom sides.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
