H3BF
H3BF
310

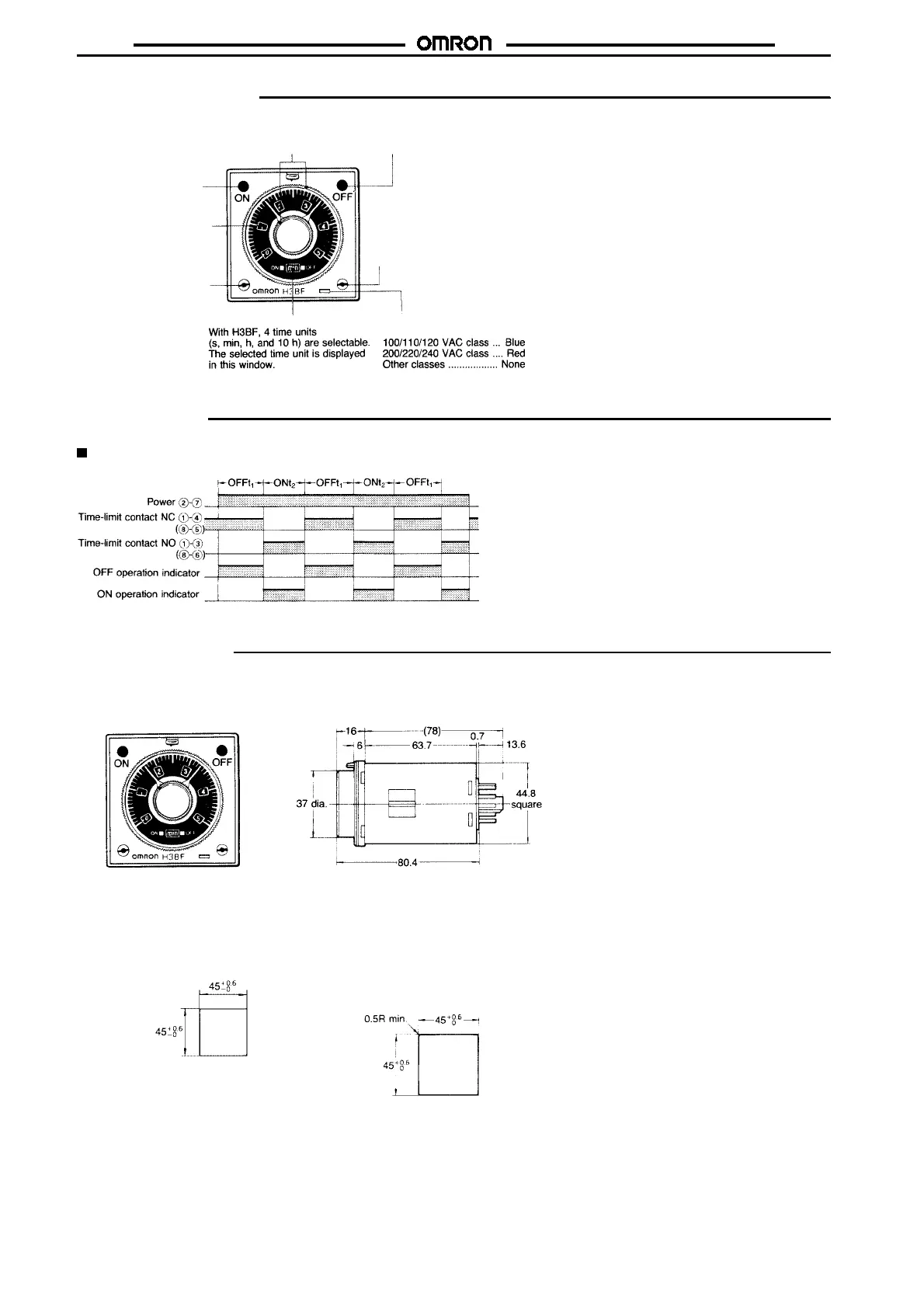

Nomenclature
H3BF-8
Rated Voltage Classification Color Code
Time Unit Selector
OFF Operation Indicator
ON Operation
Indicator
Coaxial Double
Knob
Dial Digit Display
Windows
Rated Time
Selector
Time Unit Display Window
Operation
Timing Chart
Dimensions
Note: All units are in millimeters unless otherwise indicated.
H3BF-8
Panel Cutouts
When mounting a single unit
t=1to3.2mm
Horizontally connecting n units
No front cover:
N = (48n -- 2.5)
+1
/
-- 0
With front cover:
N = {48n -- 2.5 + (n -- 1) x 3}
+1
/
-- 0
(N)

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
