Omron H3CR-A User Manual

H3G
H3G
319
Mounting Holes
Note: PF085A can be used
as a front connecting
socket.

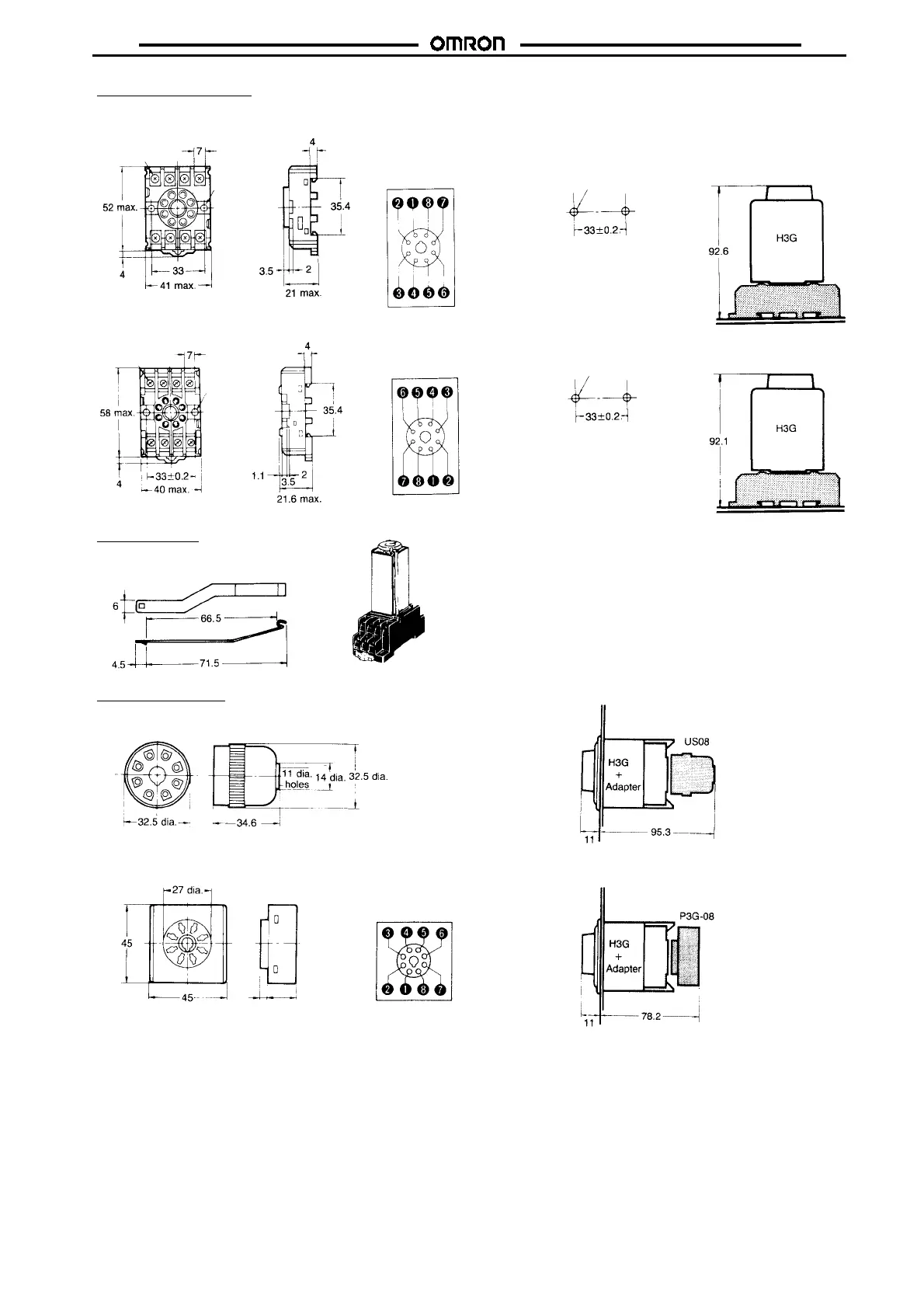

Track Mounting Socket
PF083A
Terminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
PF085A
Mounting HolesTerminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
Note: PF085A can be used
as a front connecting
socket.
Eight, M3.5
'
7
sems
Eight, M3.5
'
7
sems
Two, 4.2 dia.
holes
Two, 4.5 dia.
holes
Two, M4 or 4.5 dia. holes
Two, M4 or 4.5 dia. holes
Mounting Clips
Y92H-6
Connecting Socket
US08
P3G-08
Terminal Arrangement
(Bottom View)

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
