Omron H3CR-A User Manual

H3CR-F/G/H
H3CR-F/G/H
59
#

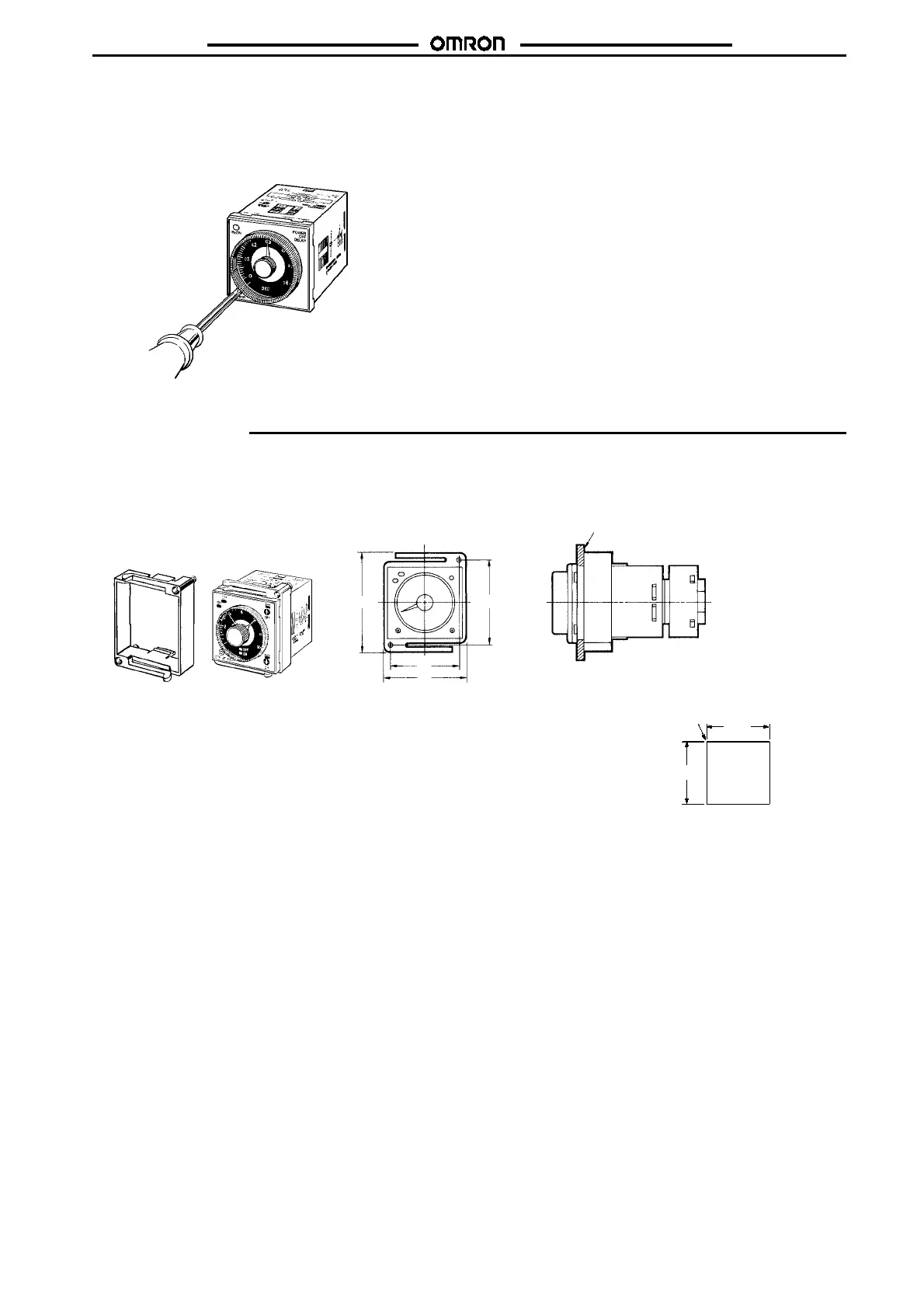

H3CR-H Power OFF-delay Timers
Atime range(0to0.6, 0 to 1.2,0to6,and0to12)isselectedwiththe
timerangeselectoratthelowerleft cornerofthefront panel. Notime
unit selector is available. When orderingthe H3CR-H, specify S (for
the second unit) or M (for the minute unit) for your H3CR-H.
Dimensions
Note: The undermentioned is common for all H3CR-F/G/H models.
Note: All units are in millimeters unless otherwise indicated.
Dimensions with Flush Mounting Adaptor
Y92F-30
Panel Cutout
Note: The adapters for two or more timers mounted in a vertical line are different in
orientation from those mounted in a horizontal line.
N can be obtained as follows (n: the number of H3CR models arranged side by side)
Without a Cover: N = (48n - 2.5)
+1
/
-0
With the Protective Cover: N = (51n - 5.5)
+1
/
-0
With the Panel Cover: N = (50n - 4.5)
+1
/
-0
0.5 R max.
45
+0.6
-- 0
45
+0.6
-- 0
(N)
58 52
42
48
Panel

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
