Omron H3CR-A User Manual

H3DR-F
H3DR-F
92

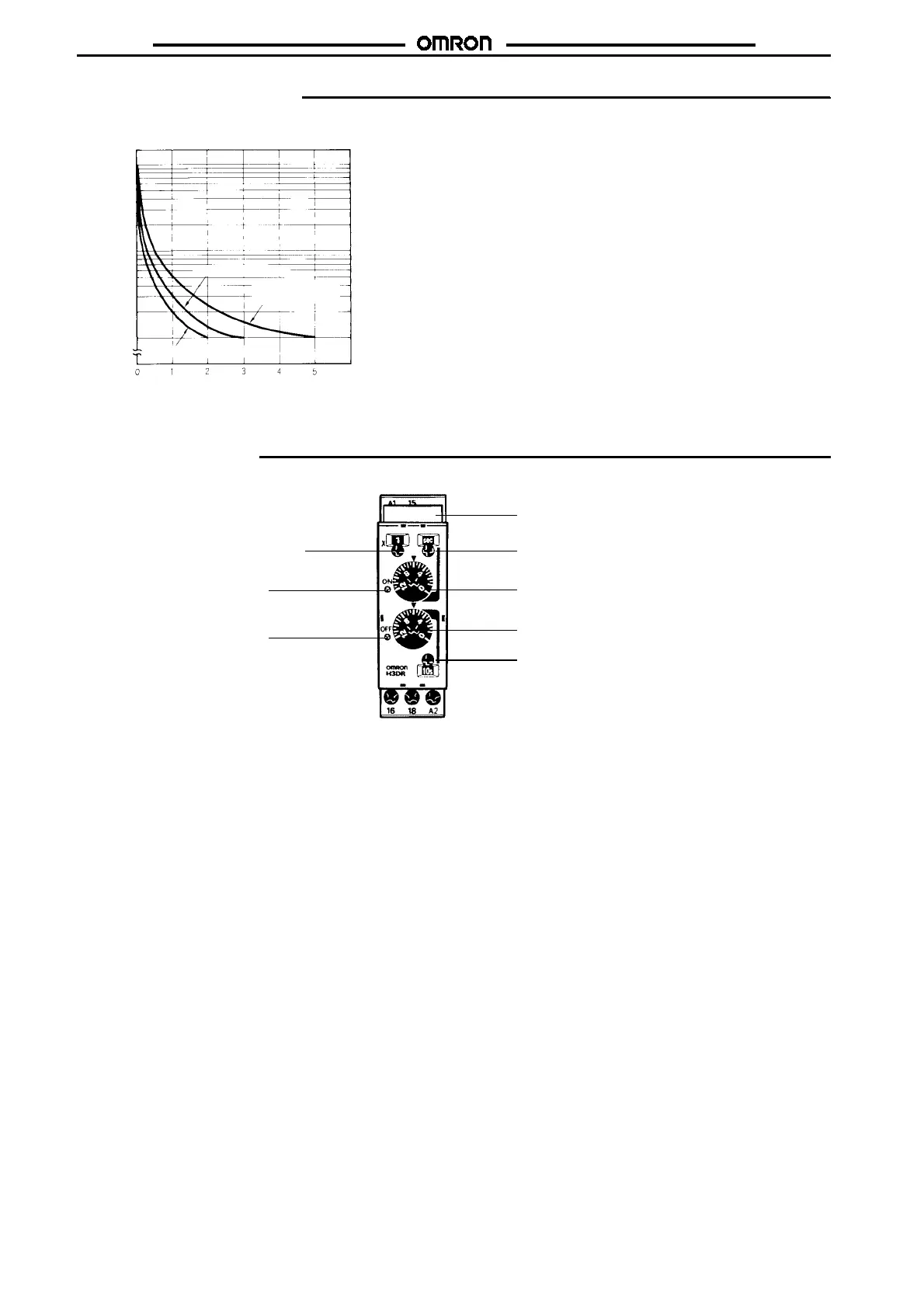

Engineering Data
Reference:A maximum current of 0.15 A can be switched at 125 VDC (cos
%
=1)
and a maximum current of 0.1 A can be switched if L/R is 7 ms. In
both cases, a life of 100,000 operations can be expected.
The minimum applicable load is 10 mA at 5 VDC (failure level: P).
Switching operations (x 10 )
3
Load current (A)
30 VDC, L/R = 7 ms
250 VAC (cos
%
=0.4)
250VAC/30VDC
(cos
%
=1)
10,000
5,000
1,000
500
100
Nomenclature
Note: The output will change instantly if the setting dial is turned toward 0.
ON indicator (orange)
OFF indicator (green)
Time scale selector (x 0.1, x 1)
For both ON-time and OFF-time.
OFF-time setting dial
OFF-time unit selector (select one from sec,
10 s, min., and hrs)
Nameplate (for user application)
(20 x 6.6 white panel)
ON-time setting dial
ON-time unit selector (select one
from sec, 10 s, min., and hrs)

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
