Omron H3CR Series User Manual

H3CR-A
H3CR-A
10
Operation

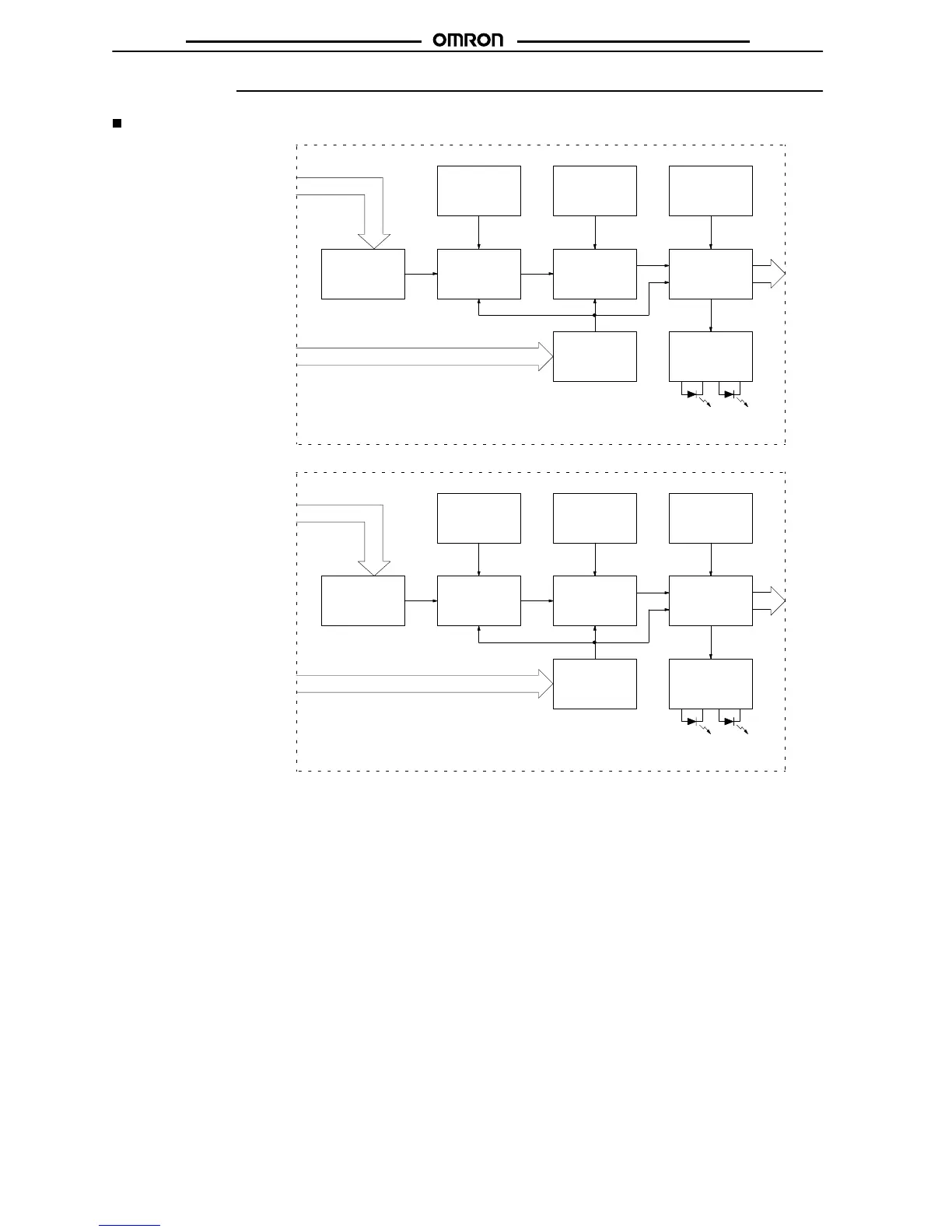

Block Diagrams
H3CR-A/AS
AC (DC) input
Power supply
circuit
Zero setting
detection
circuit
Oscillation
circuit
Time range/
unit selectors
Counting
circuit
Operating
mode selector
Output circuit
Reset input, start input, and gate input
Input circuit
Indicator
circuit
Power-ON
indicator
Output-ON
indicator
H3CR-AP
AC (DC) input
Power supply
circuit
Zero setting
detection
circuit
Oscillation
circuit
Time range/
unit selectors
Counting
circuit
Operating
mode selector
Output circuit
Start
Input circuit
Indicator
circuit
Power-ON
indicator
Output-ON
indicator
Downloaded from Elcodis.com electronic components distributor

Omron H3CR Series Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Number of Pins	8 or 11 (depending on model)
Type	Solid State Timer
Mounting Type	DIN Rail
Operating Temperature	-10 to 55°C
Contact Rating	5A at 250V AC
Contact Configuration	SPDT
Storage Temperature	-25 to 65°C
Operating Modes	On-delay, One-shot, Interval, Flicker, Signal On/Off
