Omron H3CR Series User Manual

H3CR-A
H3CR-A
11

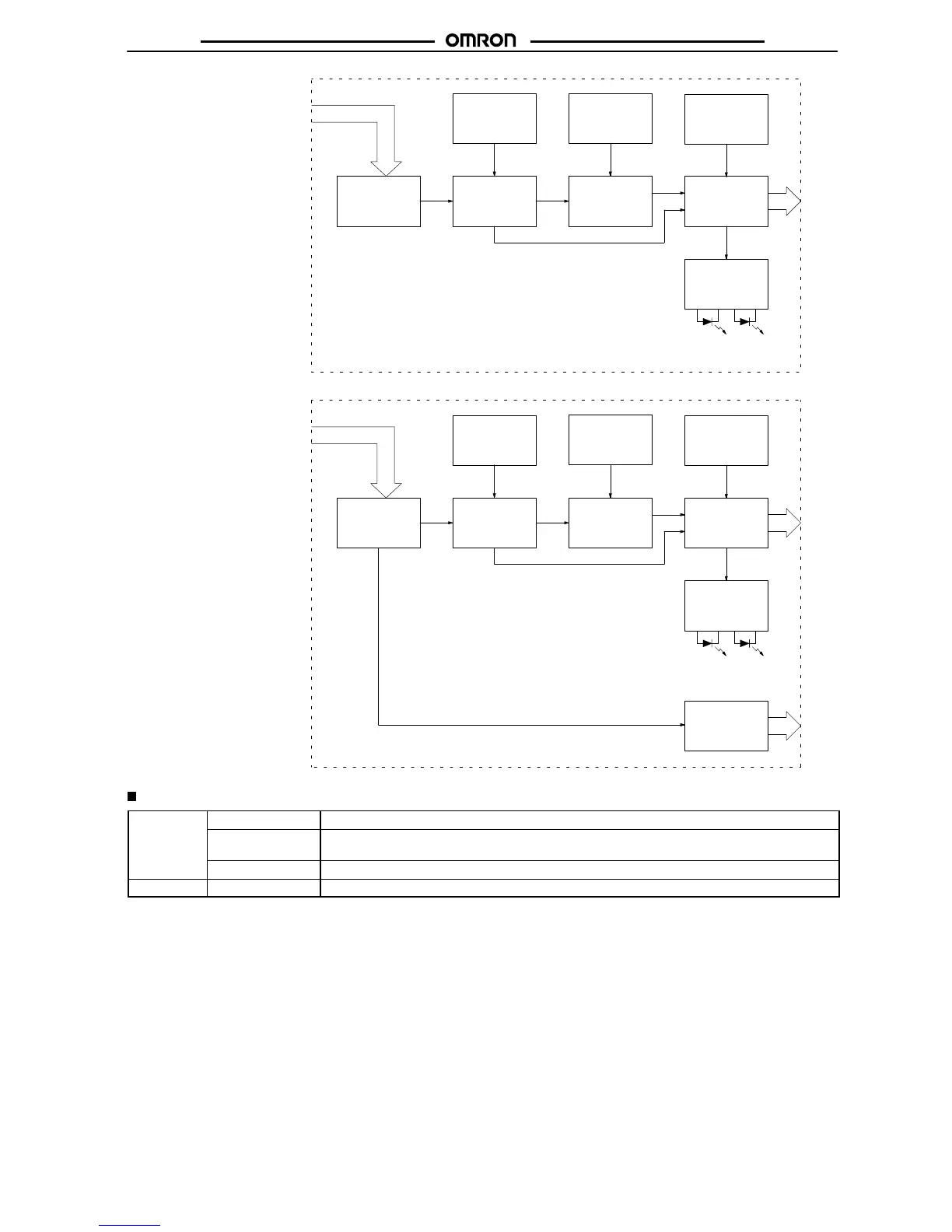

H3CR-A8/A8S
AC (DC) input
Power supply
circuit
Zero setting
detection
circuit
Oscillation
circuit
Time range/
unit selectors
Counting
circuit
Output circuit
Indicator
circuit
Power-ON
indicator
Output-ON
indicator
Operating
mode selector
H3CR-A8E
Instantaneous
output circuit
AC (DC) input
Power supply
circuit
Zero setting
detection
circuit
Oscillation
circuit
Time range/
unit selectors
Counting
circuit
Output circuit
Indicator
circuit
Power-ON
indicator
Output-ON
indicator
Operating
mode selector
I/O Functions
Inputs Start Starts time-measurement.
(for -A/-AS
models)
Reset Interrupts time-measurement and resets time-measurement value. No time-measurement is made
and control output is OFF while the reset input is ON.
Gate Prohibits time-measurement.
Outputs Control output Outputs are turned ON according to designated output mode when preset value is reached.
Note: H3CR-AP incorporates start input only.
Downloaded from Elcodis.com electronic components distributor

Omron H3CR Series Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Number of Pins	8 or 11 (depending on model)
Type	Solid State Timer
Mounting Type	DIN Rail
Operating Temperature	-10 to 55°C
Contact Rating	5A at 250V AC
Contact Configuration	SPDT
Storage Temperature	-25 to 65°C
Operating Modes	On-delay, One-shot, Interval, Flicker, Signal On/Off
