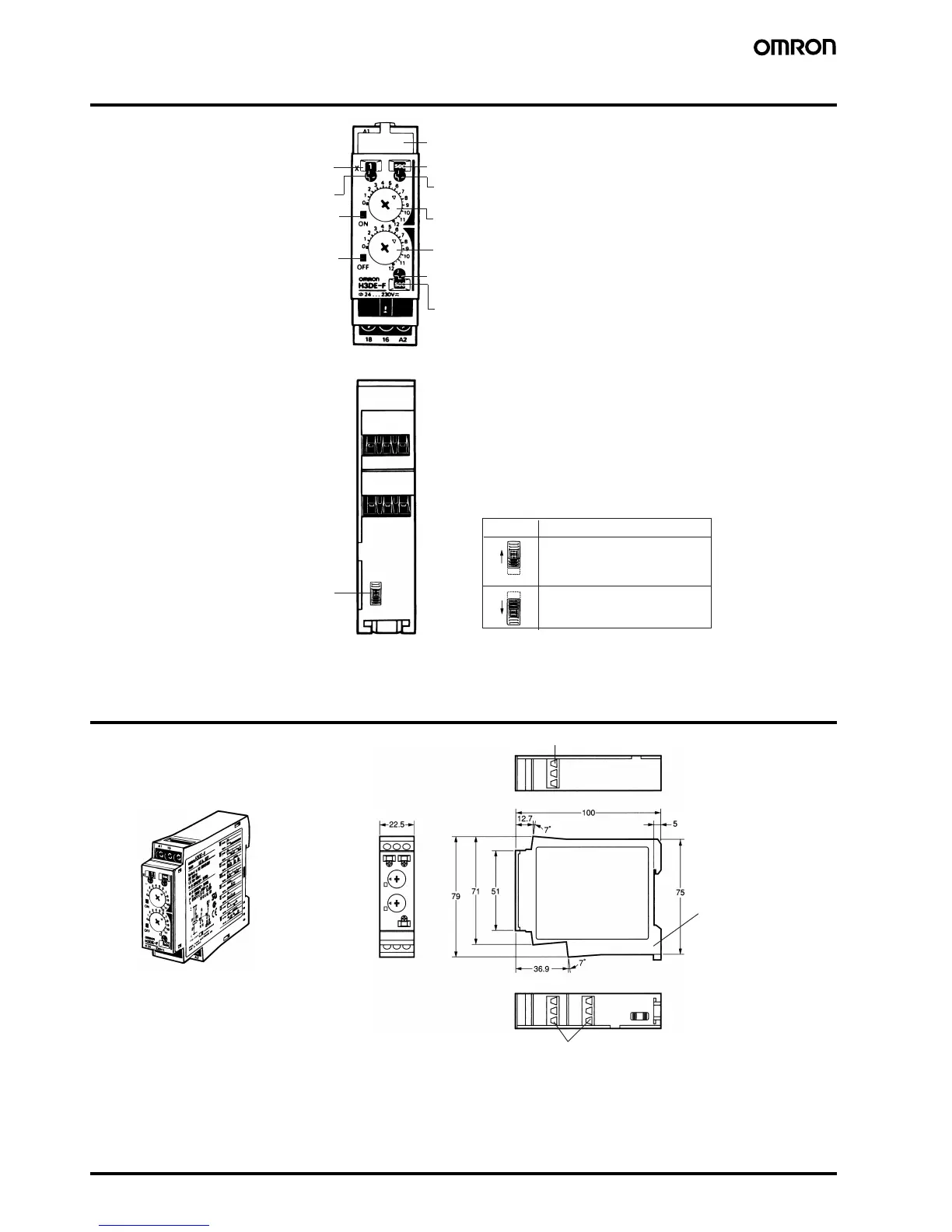

B-68 Solid-state Twin Timer H3DE-F
Nomenclature
Dimensions
Time scale display window
Output ON indicator (orange)
Output OFF indicator (green)
Nameplate for user use (20 x 5.4 mm white panel)
ON-time unit display window
ON-time setting dial
OFF-time setting dial
OFF-time unit display window
(Front View)
(Bottom View)
ON/OFF Start Selector Switch Settings
Setting Operating mode
Flicker-ON start
Flicker-OFF start
Time scale selector
(select 0.1 or 1)
Time unit selector
(select one from s, 10s, min, or h for output ON)
OFF-time unit selector
(select one from s, 10s, min, or h)
ON/OFF start selector
(default is flicker-OFF start)
H3DE-F
Terminal block (black)
Terminal block
