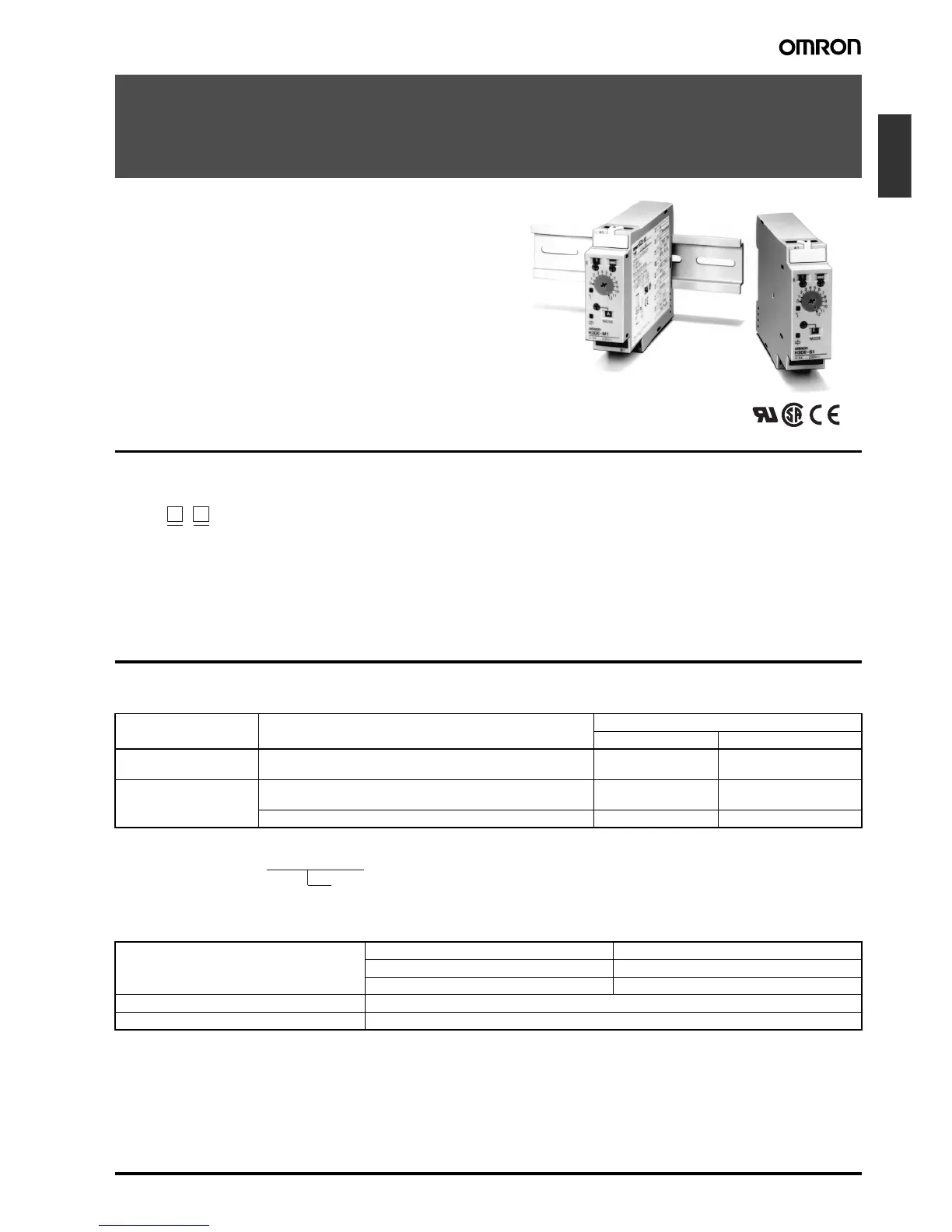

Solid-state Multi-functional Timer H3DE-M/-S B-53
Timers
Solid-state Multi-functional Timer
H3DE-M/-S
• Eight operating modes (H3DE-M) and four operating modes
(H3DE-S) cover a wide range of applications.
• Programmable contact enables the building of a self-holding re-
lay circuit (-@2 models).
• A wide time setting range of 0.10 s to 120 h.
Model Number Structure
■ Model Number Legend
Ordering Information
■ List of Models
■ Accessories (Order Separately)
H3DE -
1 2
1. M: Multi-function type
S: Standard type
2. 2: DPDT
1: SPDT
Supply voltage Control output Model
Multi-function type Standard type
12 VDC Contact output: DPDT (time-limit output SPDT and switchable
SPDT (time-limit ←→ instantaneous))
H3DE-M2
(see note)
---
24 to 230 VAC/DC Contact output: DPDT (time-limit output SPDT and switchable
SPDT (time-limit ←→ instantaneous))
H3DE-M2
(see note)
H3DE-S2
Contact output: SPDT (time-limit output SPDT) H3DE-M1 H3DE-S1
Supply voltage
Note: Specify both the model number and supply voltage when ordering H3DE-M2.
Example: H3DE-M2 24 to 230 VAC/DC
Mounting Track 50 cm (l) x 7.3 mm (t) PFP-50N
1 m (l) x 7.3 mm (t) PFP-100N
1 m (l) x 16 mm (t) PFP-100N2
End Plate PFP-M
Spacer PFP-S
