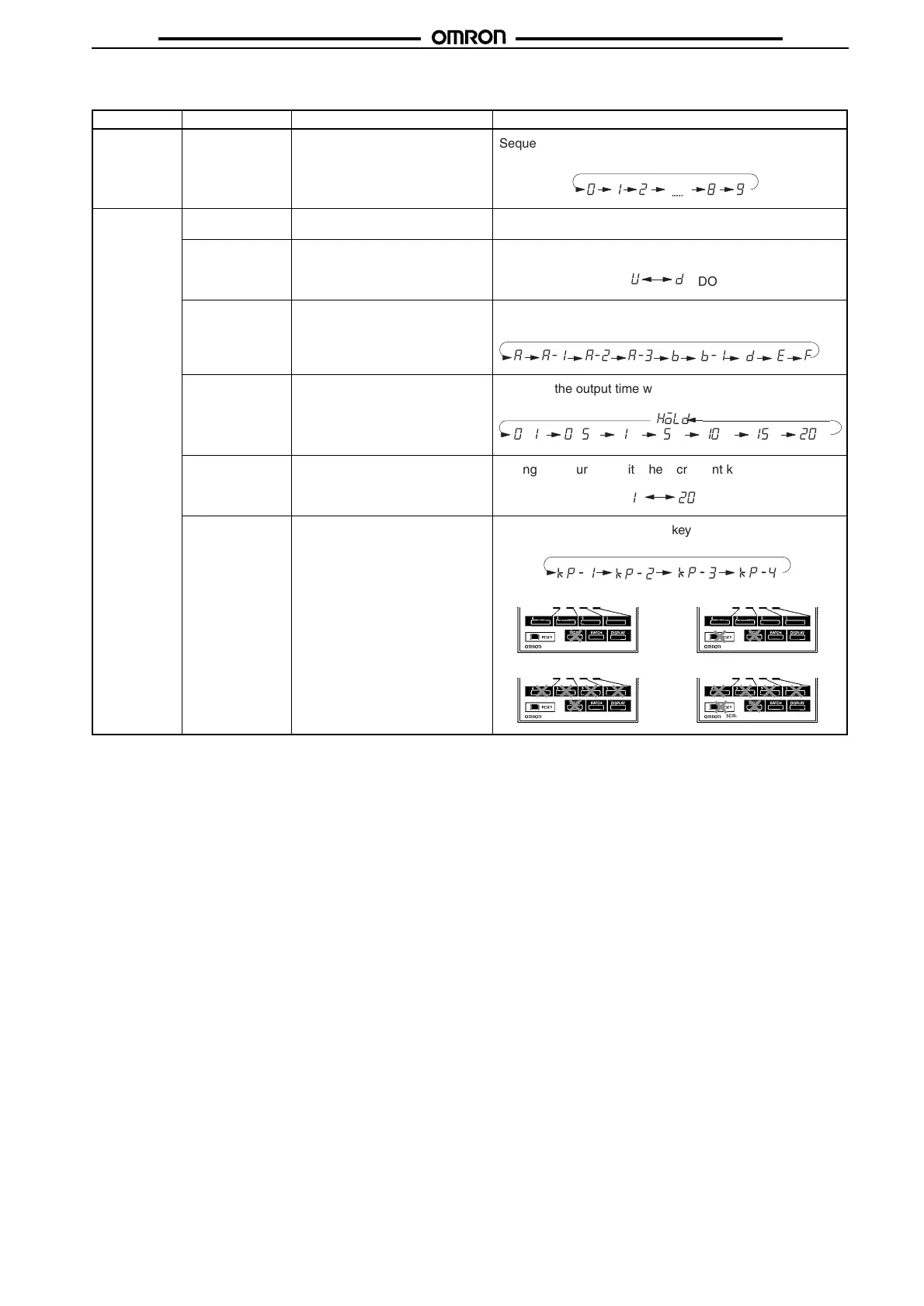

7
H5CRH5CR
Setting Item Table
Note: 1. Changes made in setting mode become effective when run mode is entered.
2. The time range setting appears first when setting mode is entered.
3. *The key protection function is not included in the H5CR-L.
Mode Setting item Discription Setting procedure
Run mode Set value Compared to the present value.
Determines the timing of the control
output according to the output
mode.
Setting mode Time range* Determines the timing range.
UP/DOWN mode Selects
Output mode Determines the form of the control
output. (Refer to the present value
vs. output diagrams on pages 9 to
11.)
Output time Determines the duration of the con-
trol output.
Will be displayed when the output
mode is A, A-1, A-2, A-3, b, or b-1.
Will not be displayed when the out-
put mode is d, E, or F.
Input signal time Changes the duration of the control
and reset input signals.
Key protect level Locks certain keys to prevent acci-
dental operation. The key protec-
tion level, kP-1 to kP-4, determines
which keys are locked when the
key protection input is ON. The
locked keys are crossed out in the
diagram on the right.
012 89
Sequence when changing a digit using the increment
keys (1 to 4).
Change the timing range with the increment keys (1 to 4).
ud
(UP) (DOWN)
Select UP/DOWN with the increment keys (1 to 4).
Sequence when changing the mode using the increment
keys (1 to 4).
a a-1 a-2 a-3 b b-1 d e f
Change the output time with the increment keys (1 to 4)
01
. s
1
s
05
. s
5
s
10
s
15
s
20
s
hold
Change the duration with the increment keys (1 to 4).
120
(1 ms) (20 ms)
Sequence when changing the key protect level using the
increment keys (1 to 4).
3 4
p
p
<KP-1> <KP-2>
<KP-4><KP-3>
1
p
2
p
H5CR-B
H5CR-B
H5CR-B
H5CR-B
