Omron H5CR series User Manual

H5CR H5CR
11

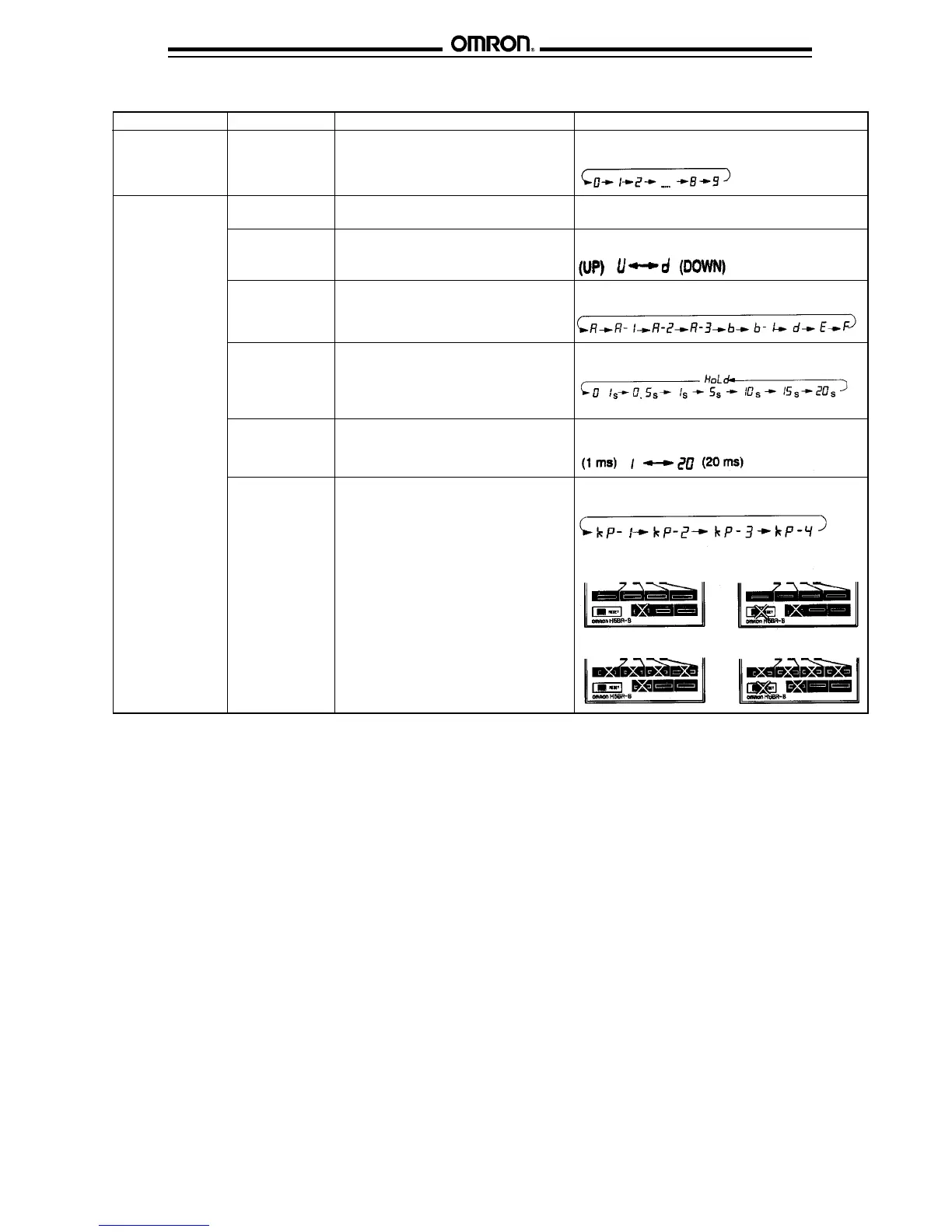

■ SETTING ITEM TABLE
Mode Setting item Description Setting procedure
Run mode Set value Compared to the present value. Sequence when changing a digit using the
Determines the timing of the control increment keys (1 to 4).
output according to the output mode.
Setting mode Time range Determines the timing range. Change the timing range with the increment
keys (1 to 4).
UP/DOWN mode Selects the display that shows elapsed Select UP/DOWN with the increment keys
time (UP) or time remaining (DOWN). (1 to 4).
Output mode Determines the control output type. Sequence when changing the mode using the
(Refer to the present value vs. output increment keys (1 to 4).
diagrams on pages 5 to 8.)
Output time Determines the duration of the control Change the output time with the increment keys
output. Will be displayed when the (1 to 4).
output mode is A, A-1, A-2, A-3, B,
or B-1. Will not be displayed in
output modes D, E, or F.
Input signal time Changes the duration of the control Change the duration with increment keys
and reset input signals. (1 to 4).
Key protect level Locks certain keys to prevent accidental Sequence when changing the key protect
operation. The key protection level, level using the increment keys (1 to 4).
kP-1 to kP-4, determines which keys are
locked when the key protection input
is ON. The locked keys are crossed
out in the diagram at right.
<KP–1>
<KP–2>
<KP–3>
<KP–4>
Note: 1. Changes made in setting mode become effective when run mode is entered.
2. The time range setting appears first when setting mode is entered.
