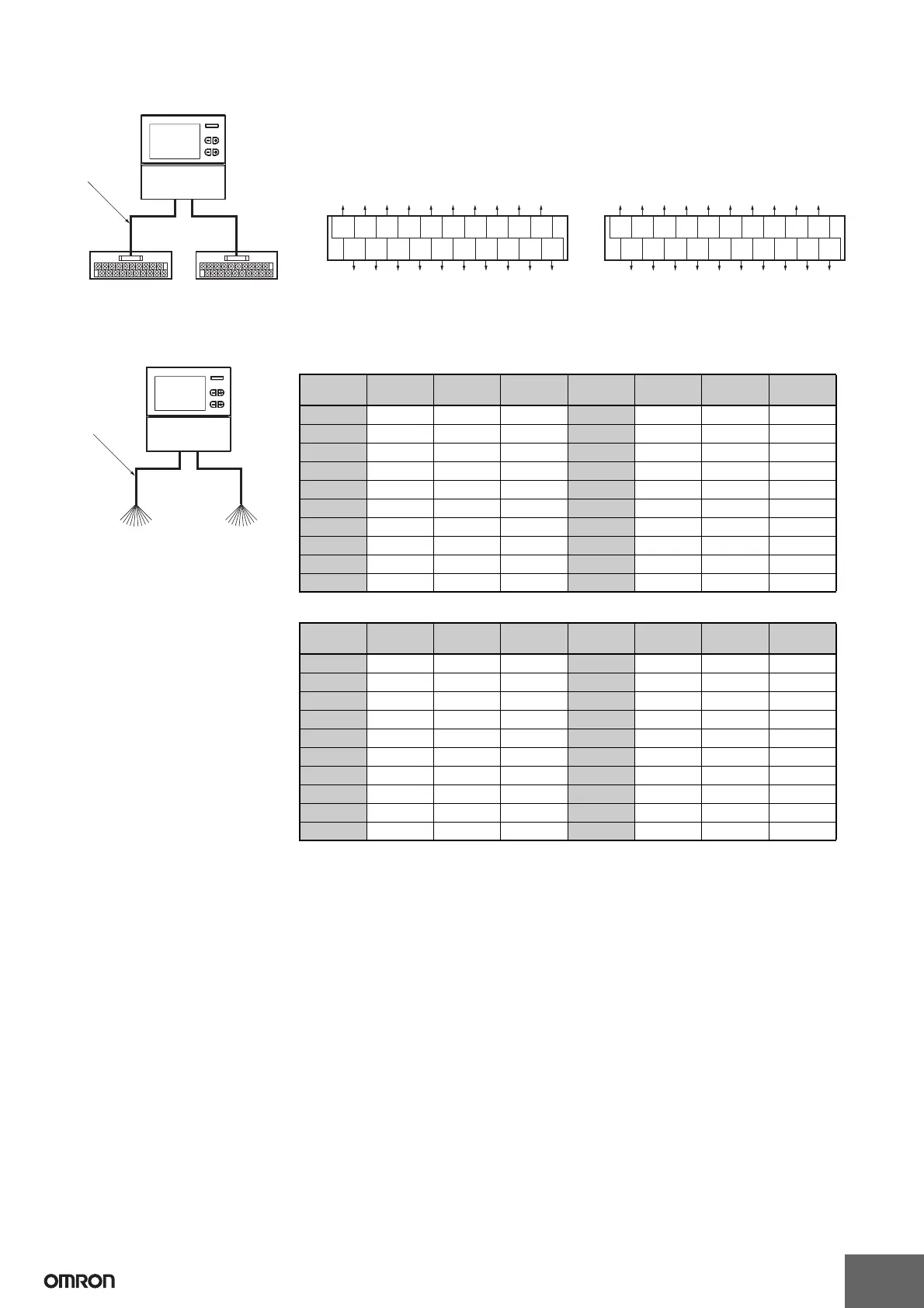

2. Y92S-41-200 Discrete Wire Output Cable (Order Separately) Connections
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10
XW2D-20G6
Connector-Terminal Block
Conversion Unit (Order Separately)
H8PS-16@/-32@
(CN1)
E5ZE-CBL200
Connector-type
Output Cable
(Order Separately)
Output Cable 1
Terminal Arrangement of the XW2D-20G6 Connector-Terminal Block Conversion Unit
Output Cable 2
Output Cable 2Output Cable 1
(CN2)
Vs
Vs
COM
COM
Cam 1
Cam 2
Cam 3
Cam 4
Cam 5
Cam 6
Cam 7
Cam 8
Cam 9
Cam 10
Cam 11
Cam 12
Cam 13
Cam 14
Cam 15
Cam 16
Vs
COM
Cam 17
Cam 18
Cam 19
Cam 20
Cam 21
Cam 22
Cam 23
Cam 24
Vs
COM
Cam 25
Cam 26
Cam 27
Cam 28
Cam 29
Cam 30
Cam 31
Cam 32
Output Cable 1 Wiring Table
Output Cable 2 Wiring Table
Outputs Cable
color
Marks Marking
color
Outputs Cable
color
Marks Marking
color
Cam 1 Orange ■ Black Cam 9 Orange ■ Red
Cam 2 Gray ■ Black Cam 10 Gray ■ Red
Cam 3 White ■ Black Cam 11 White ■ Red
Cam 4 Yellow ■ Black Cam 12 Ye l l o w ■ Red
Cam 5 Pink ■ Black Cam 13 Pink ■ Red
Cam 6 Orange ■ ■ Black Cam 14 Orange ■ ■ Red
Cam 7 Gray ■ ■ Black Cam 15 Gray ■ ■ Red
Cam 8 White ■ ■ Black Cam 16 White ■ ■ Red
COM Yellow ■ ■ Black COM Ye l l o w ■ ■ Red
Vs Pink ■ ■ Black Vs Pink ■ ■ Red
Outputs Cable
color
Marks Marking
color
Outputs Cable
color
Marks Marking
color
Cam 17 Orange ■ Black Cam 25 Orange ■ Red
Cam 18 Gray ■ Black Cam 26 Gray ■ Red
Cam 19 White ■ Black Cam 27 White ■ Red
Cam 20 Yellow ■ Black Cam 28 Ye l l o w ■ Red
Cam 21 Pink ■ Black Cam 29 Pink ■ Red
Cam 22 Orange ■ ■ Black Cam 30 Orange ■ ■ Red
Cam 23 Gray ■ ■ Black Cam 31 Gray ■ ■ Red
Cam 24 White ■ ■ Black Cam 32 White ■ ■ Red
COM Yellow ■ ■ Black COM Ye l l o w ■ ■ Red
Vs Pink ■ ■ Black Vs Pink ■ ■ Red
