4 Screen Creation
4-6
NB-series Programmable Terminals Startup Guide Manual(V109)
3

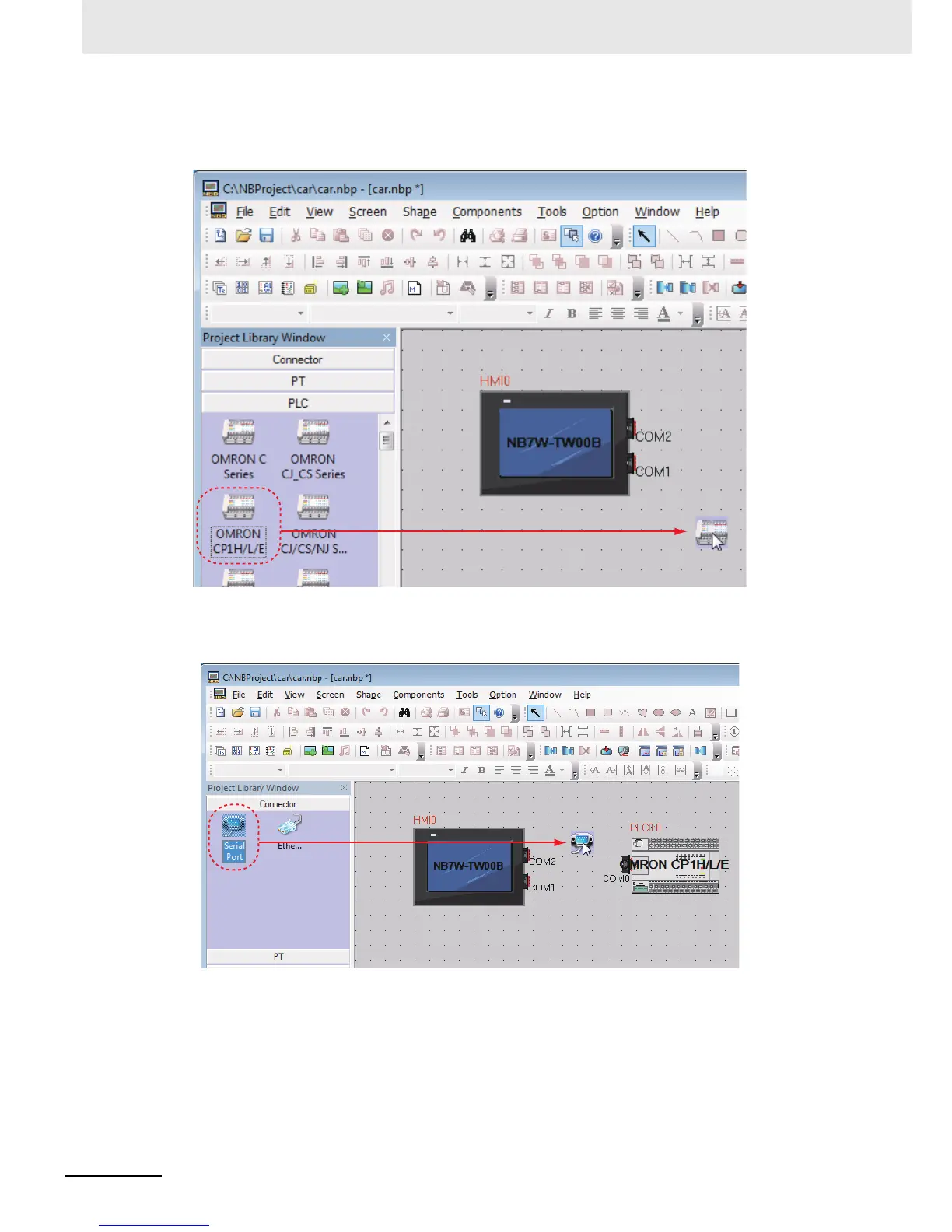

Select [OMRON CP1H/L/E] from [PLC] Project Library, drag PLC to the Configuration and Setup
Window after selecting it with a single-click.
4
Select [Serial Port] from [Connector], drag it to the Configuration and Setup Window after
selecting it with a single-click.
