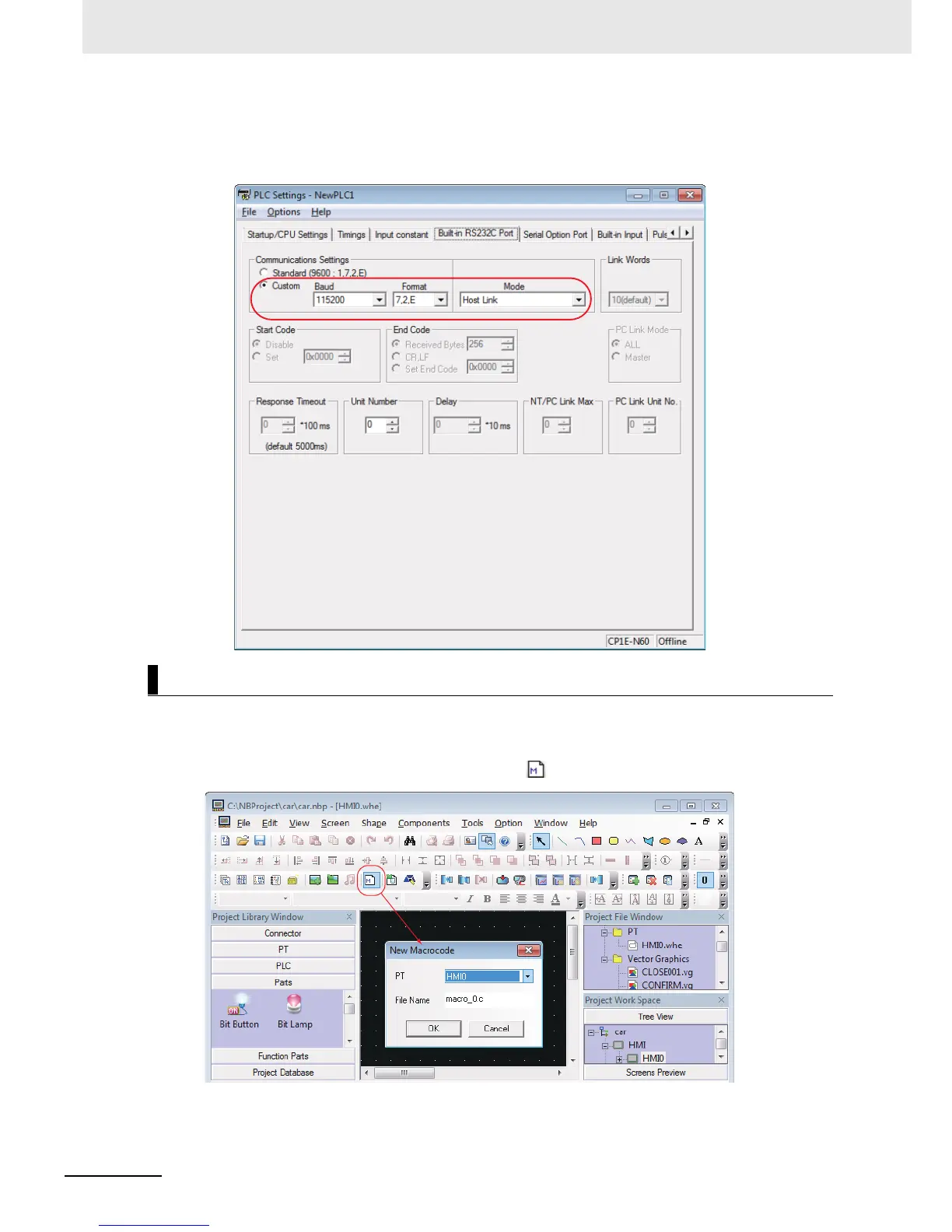

To setting the PLC: In “CX-Programmer” open the project, in project workspace select [PLC
Settings]. Be sure to set the communication mode of PLC [Built-in RS232C Port] to “Mode: Host
Link, Baud: 115200, Format: 7,2,E”.
This project uses Macro files to initialize the value of LW.B 10.0 to 1, thus initializing the Bit Lamp on the
[Stop] screen.
1
User could establish a macro file with the icon through the menus or toolbar.
