2 Connecting to SIEMENS PLCs
NB-series Programmable Terminals Host Connection Manual (V108)
2-3 Communication Parameter Setting
2
2-3-2 When Using SIEMENS S7-300/400 (PC Adapter Direct) Communication Protocol
3

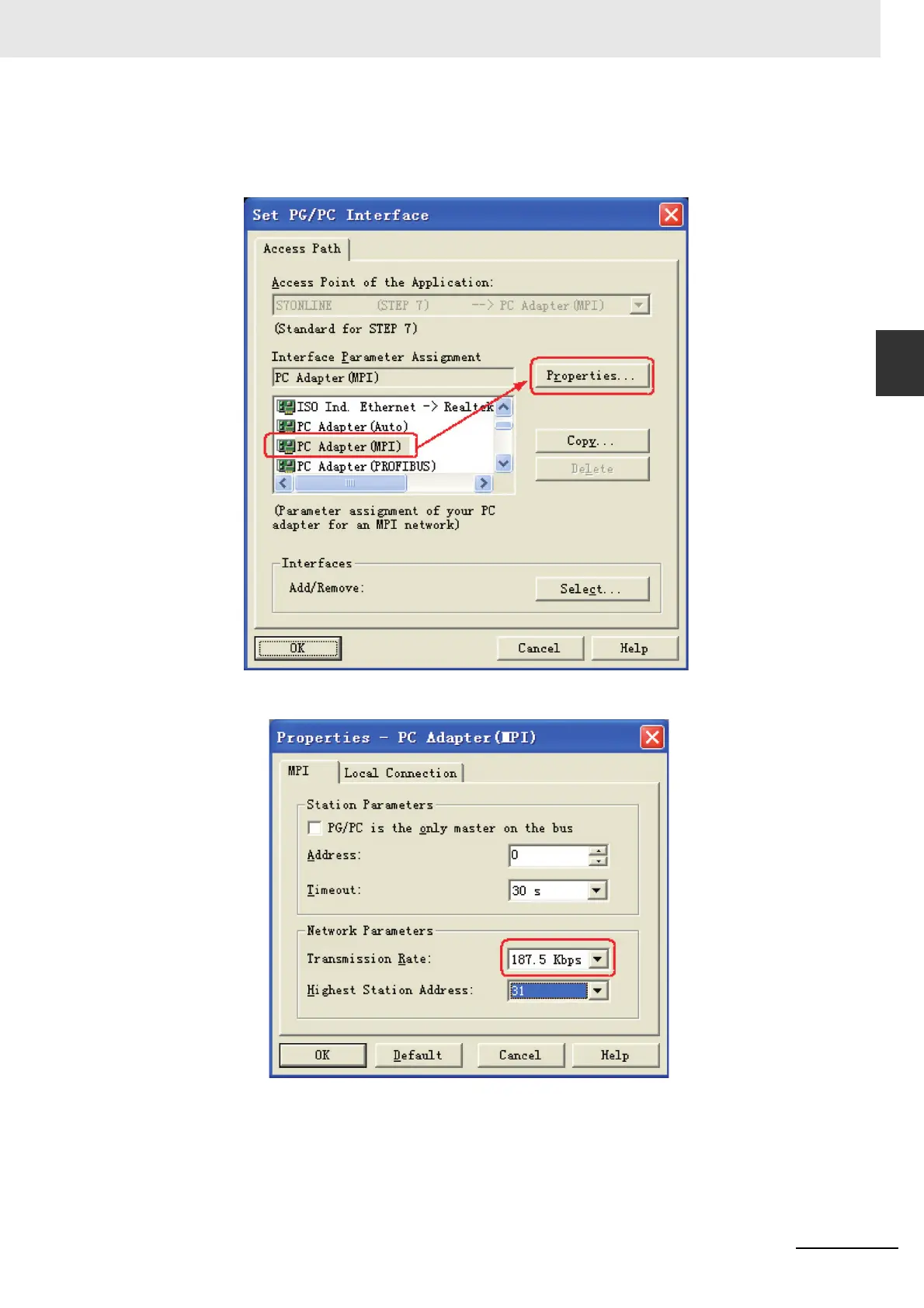

Download the set parameters to PLC after the setting is completed. Then open [SIMATIC
Manager] menu-[Option]-[PG/PC Interface Setting], select PC Adapter (MPI) and modify the
transmission rate of MPI port to be 187.5K, as shown below:
