Omron New H7E Series User Manual

New H7EC
5

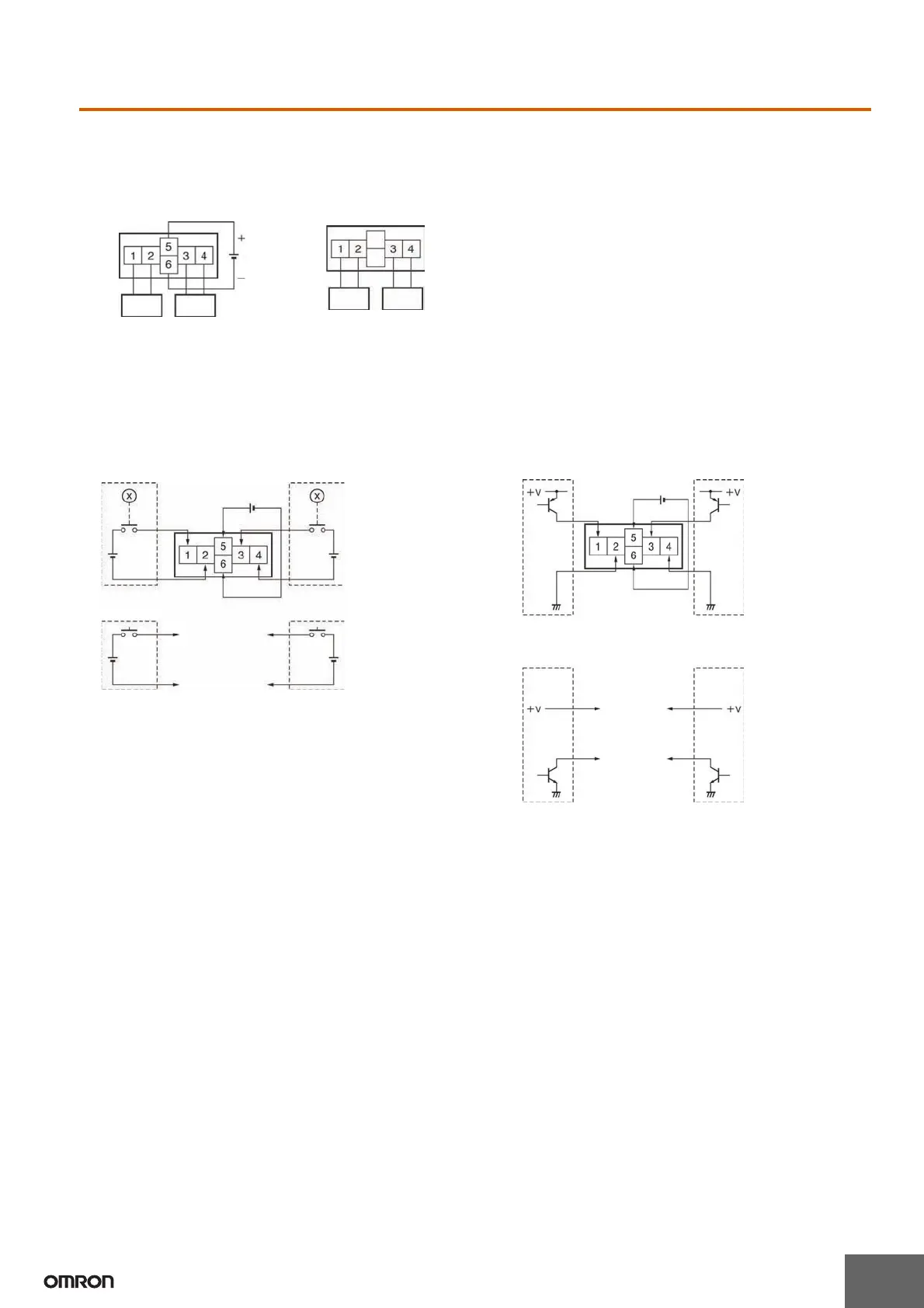

Connections
■ Terminal Arrangement
Bottom view: View of the Total Counter rotated horizontally 180°
■ Connections
H7EC Total Counter
Note: 1. Terminals 2 and 4 (input circuit and reset circuit) are func-
tionally isolated.
2. Select input transistors according to the following:
Dielectric strength of the collector ≥ 50 V
Leakage current < 100 µA
Backlight Model No-backlight Model
Backlight
24 VDC
Count
input
Reset
input
Count
input
Reset
input
PNP/NPN Universal DC Voltage Input Model With Backlight
1. Contact Input (Input by a Relay or Switch Contact) 2. Solid-state Input
Relay
Input
Reset
Relay
or Switch or Switch
Input
Reset
Backlight
24 VDC
Open collector of a
PNP transistor
Open collector of a
PNP transistor
Backlight
24 VDC
or Open collector of an
NPN transistor
or Open collector of an
NPN transistor
