User-Friendly Software
Integrated Simulation

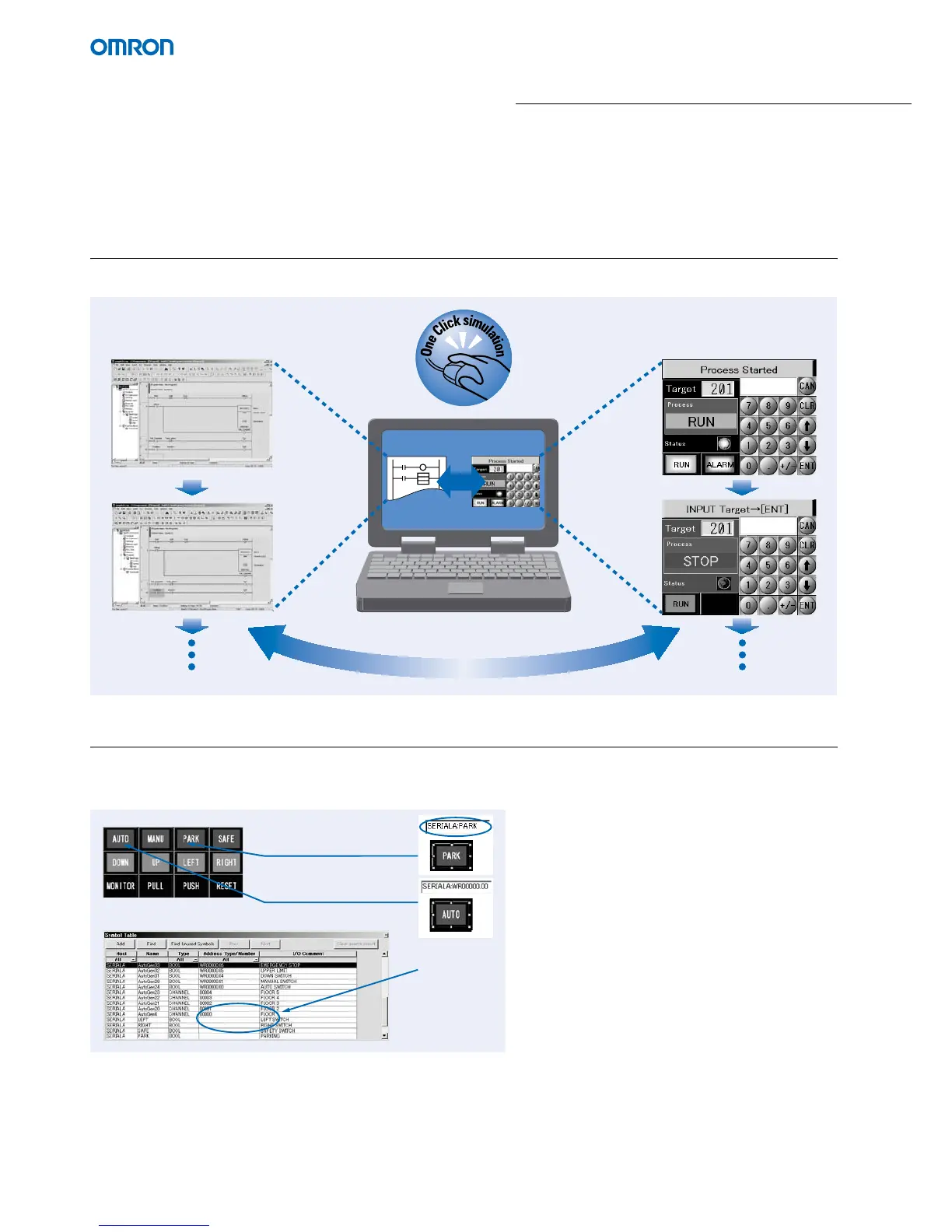

Simulate the HMI program with the PLC program on your PC.
The integrated simulation function allows you to test the ladder program with the HMI progam in an interactive way. You can quickly make changes
and test the function to see if it works as desired. Therefore the integrated simulation function significantly increases debugging efficiency.
Programming with Symbols
Screens can be created even when addresses are unknown.
Screens can be created even if the addresses have not been determined. Addresses can be input as either names or actual addresses and the
addresses can be input from the symbol table after the addresses are determined.
The symbol table created in our PLC programming package, CX-Programmer can be shared with CX-Designer by simply dragging and dropping
them in the software.
Interactive
Interactive
Touch Panel
Ladder Program
PLC program
HMI project
[Input from the Symbol Table]
Addresses are
input in the
symbol table after
the addresses
are determined.
Symbols input for addresses, which
have not yet been determined.
Addresses input as addresses
because addresses have been
determined
