Sysmac One Series
Integrated Machine Management: Sysmac One series
The Sysmac One series combine an NS touch screen with a powerful CJ1 PLC and the choice of different network interfaces in a compact housing
occupying less panel space. With the standard USB port you can program both the controller part and the graphical display. The Sysmac One
series are available in different screen sizes and two different controller types. The controller is running on a separate CPU so that you have the
best performance on both screen and controller. Another benefit of this is that the controller can continue operating even if the screen is accidentally
broken.

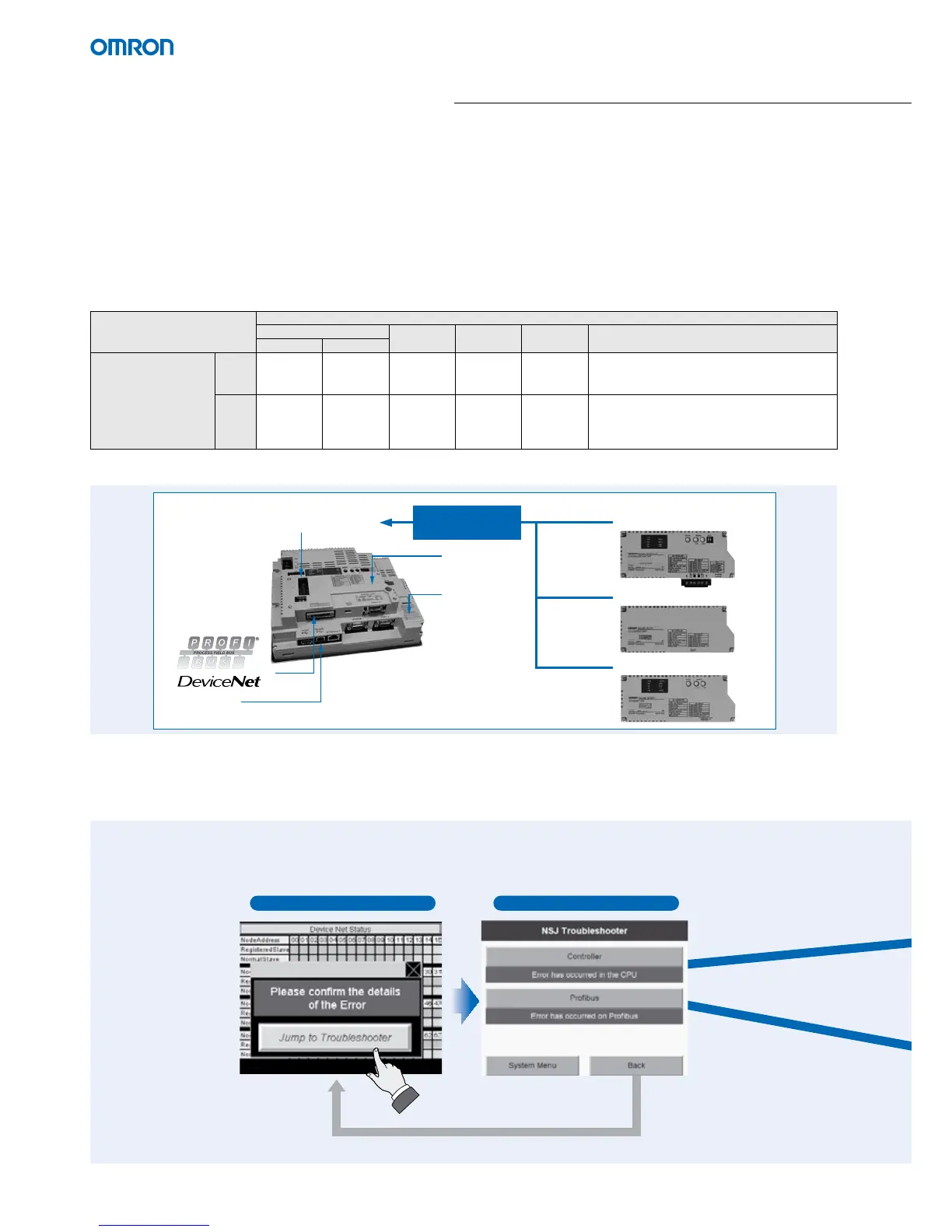

Sysmac One Appearance
Easy Maintenance using Troubleshooter function
Quickly see Errors and Statusses of Controller and Network device
The standard-equipped Troubleshooter contributes to solving problems during device startup and operation. When an error occurs, simply follow
the on-screen instructions to confirm the error details and quickly implement counter measures, without referring to the manual.
Display Section
5.7 Inches
8.4 Inches 10.4 Inches 12.1 Inches Main Differences in Specifications
Colour STN Colour TFT
Controller Section
(Designated by model
number suffix)
M3x
��� --
• I/O capacity: 640
• User memory: 20 Ksteps
• Expanded data memory: None
G5x
�����
• I/O capacity: 1,280
• User memory: 60 Ksteps
• Expanded data memory: 32 Kwords x 3
banks
Expansion Unit
Controller Link Unit
(The photo shows
the NSJ8 Controller.)
Expansion Unit interface
USB port
Controller
Section
Display Section
Ethernet Unit
I/O Control Unit
One Expansion
Unit
Your HMI application Troubleshooter Menu
This button takes you directly back to
your HMI application.
